Outdoor Units ED12-321A
178 Installation Manual
Wiring
(A) (B)
(C)
(E)
(D)
Cover

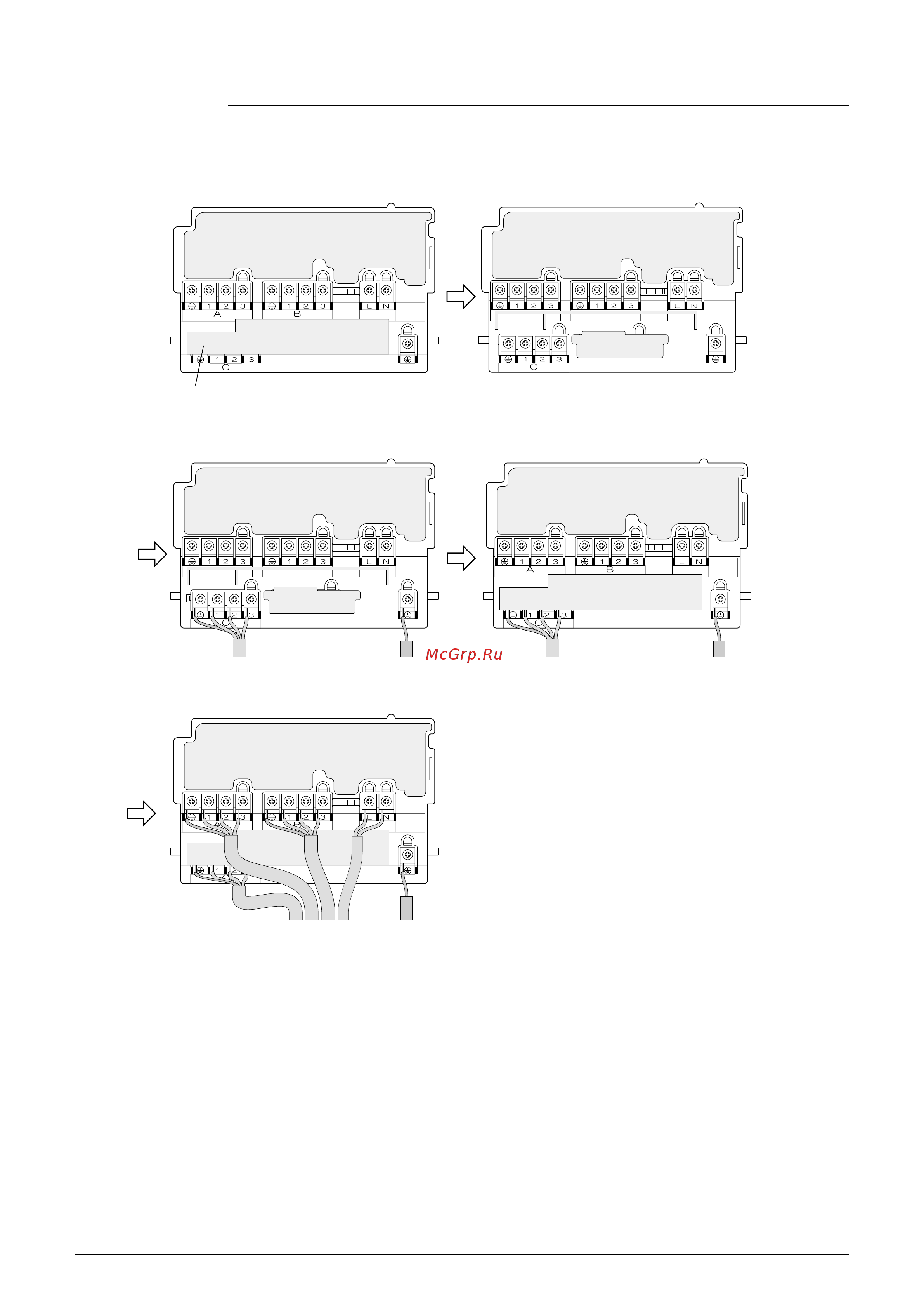

For 3MXD, 2MKD and 3MKD, follow the procedure below to connect the wires.
(1) Remove the service lid, and it should be as in Figure (A).
First push up the cover as shown in Figure (B), then connect room C (Figure (C)).
Be sure to connect from room C.
(2) After room C is connected, replace the cover (Figure (D)).
(3) Connect room A, B and power supply wires (Figure (E)).
(4) When connecting the power supply wires to rooms A and B, route the wires so that no force will be applied to the lid,
which may otherwise be deformed. (Figure (E))
