u HOUR COUNTER:

Part. 9 Makes it visible the number of hours worked by the machine.

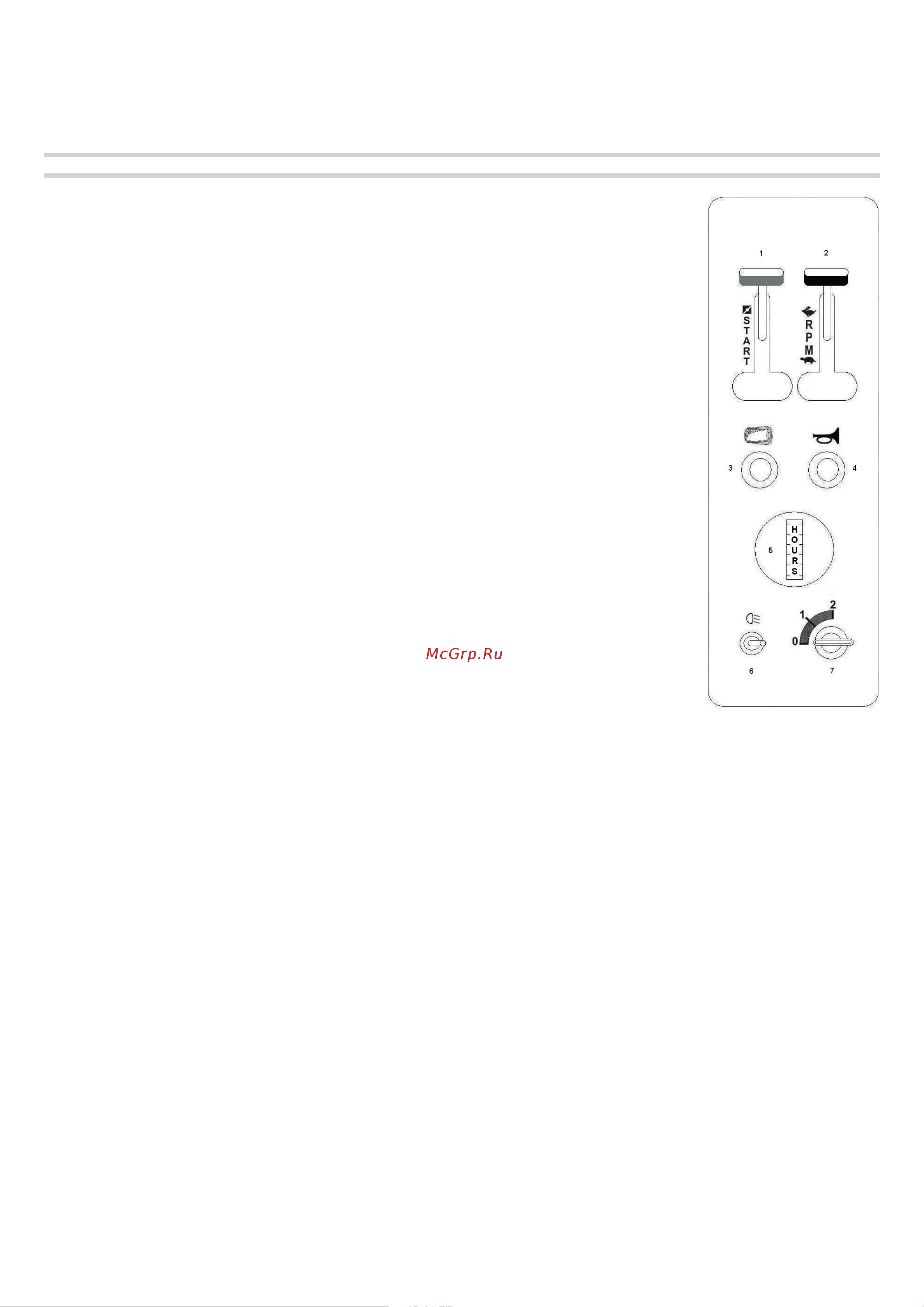

EQUIPMENT ON THE CSW 1200 G CONTROL PANEL

1) Start lever

2) Accelerator lever

3) Filter buzzer button

4) Acoustic indicator button

5) Hour counter

6) Working light switch (optional)

7) Ignition key

u START LEVER:

Part. 1 It is needed for “cold” ignition of the machine. It is positioned in “up” posi-

tion. After the ignition it must be slowly brought back.

u ACCELERATOR LEVER:

Part. 2 It controls the number of motor’s rotations.

u FILTER BUZZER BUTTON:

Part. 3 This buzzer cleans the suction lters through a motor-vibrator Part. 2 Fig.

5; it must be pressed at least 6 / 7 times for 8 / 10 seconds each (operation to be

performed before starting work, before emptying the bin and with the motor o);

to perform this operation with motor running, close the suction by pulling the

knob Part. 1 Fig. 6.

u ACOUSTIC INDICATOR BUTTON:

Part. 4 By pressing this button the acoustic indicator switches on.

u HOUR COUNTER:

Part. 5 Makes it visible the number of hours worked by the machine.

u WORKING LIGHT SWITCH (optional):

Part. 6 It activates the adjustable working light.

u IGNITION KEY:

Part. 7 It activates the switchboard and in particular the movement potentiometer. It is therefore possible to

move the machine without have it working.

CSW 1200 G

Fig. 10
