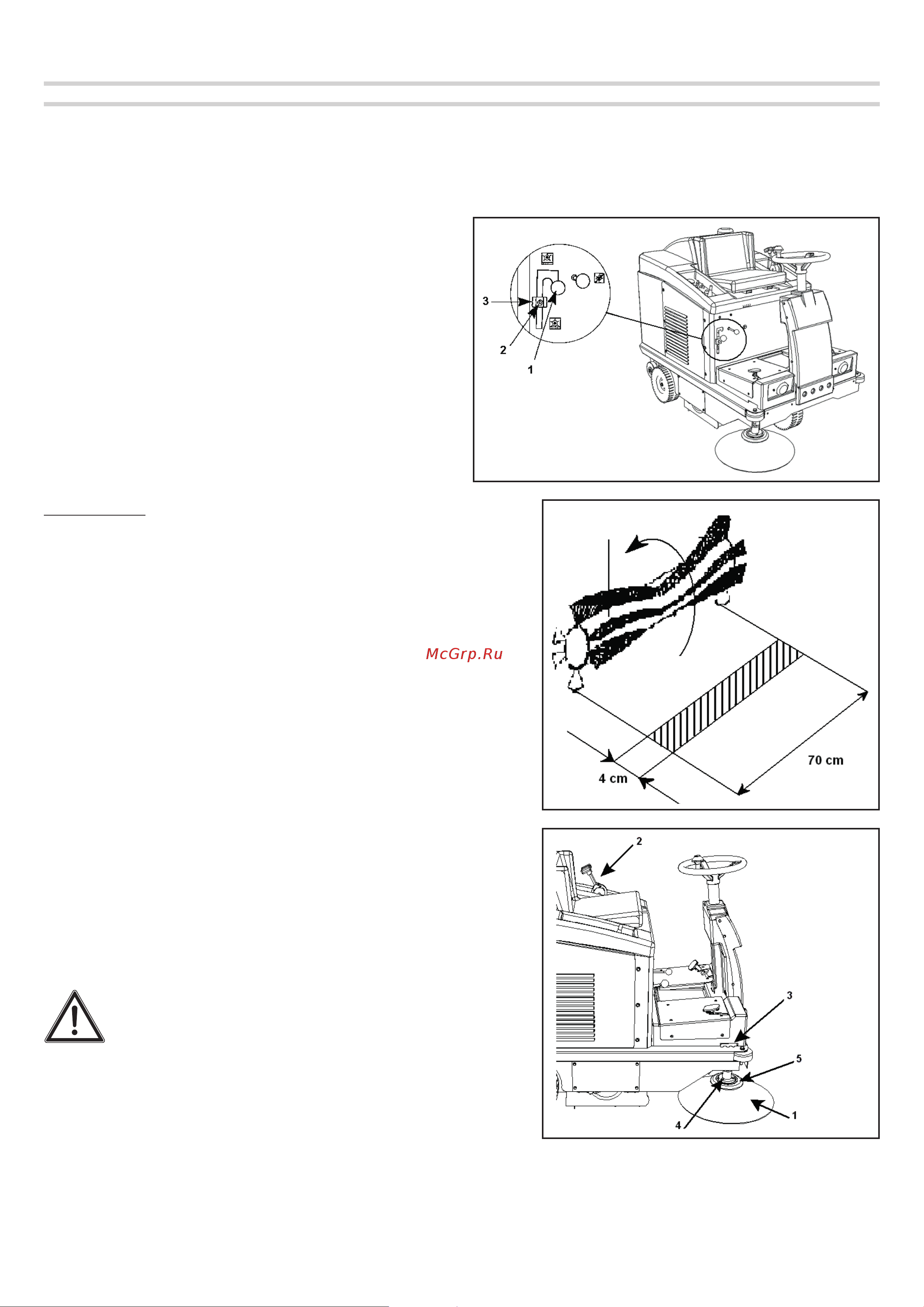

Comet CSW 1200 G [46/76] Fig 16

Instructions and operating manual sweeper CSW 1200 B - CSW 1200 G (translated from original instructions)

pag. 46

u SIDE BRUSH ADJUSTMENTS:

When the side brush Part. 1 Fig. 18 is no longer able to con-

vey dirt to the central brush, the height of the side brush will

have to be adjusted as follows:

Keeping the side brush raised turn anticlockwise the register

Part. 3 g. 8.

u CENTRAL BRUSH ADJUSTMENTS:

If the machine starts cleaning in a faulty manner or leaves dirt around, it will have to be adjusted and lowe-

red as followed:

IMPORTANT: To ensure the central brush is correctly adju-

sted, measure its “Track” as follows:

ADJUSTMENTS

1. After adjustments, start the machine up and, and without

moving either forwards or backwards, leave it standing

in the same place for at least 10 / 15 sec. with the central

brush lowered.

2. Turn o the engine, raise the central brush and move the

machine forwards manually until the mark left on the

oor by the rotation of central brush is visible, as shown

in Fig. 17.

IMPORTANT: The width of the track must not be under 4 cm.

 Position lever Part. 1 Fig. 16 so that the central

brush is raised.

 Loosen screw Part. 2 Fig. 16.

 Lower the adjuster Part. 3 Fig. 16 by 3/4 mm or

by the desired distance.

 Secure the adjuster by tightening screw Part. 2

Fig. 16

 Position lever Part. 1 g. 16 above the adjuster

Part. 3 g. 16.

 The central brush can be adjusted until the

adjuster Part. 3 g. 16 reaches the end of stroke;

after this, the brush must be replaced.

THIS OPERATION MUST BE PERFORMED WITH

THE ENGINE SWITCHED OFF.

Fig. 17

Fig. 16

Fig. 18
