Instructions and operating manual sweeper CSW 1200 B - CSW 1200 G (translated from original instructions)

pag. 47

u COLLECTION BIN:

Every 50 / 60 working hours or whenever necessary, wash the collection bin Part. 1 Fig. 7 using warm water

and, if necessary, common detergent. This will prevent any bacteria build-up (wear rubber gloves).

GENERAL RULES: To ensure a good machine functioning and life-span, keep both the outer bodywork and

the inside of the machine, under the bonnets, clean by using jets of compressed air (perform this operation

with the engine o and cold).

REPLACEMENTS

u REPLACING THE CENTRAL BRUSH:

This operation must be performed wearing gloves and a face mask to protect the airways. Make sure the engine is

o and cold.

1. Remove the left panel (left to the driving seat) Part. 4 (Left) Fig. 3, by loosening the retention screws.

2. Remove the 2 bolts on Part. 2 of Table 1;

3. Remove the screws securing the left panel Part. 1 Table 1 to which the side seal is also fastened.

4. Pull out the central brush Part. 5 Table 1 and proceed to replace this being careful to ensure the bru-

sh bristles are in the right direction as shown in Fig. 17. Ensure the drive notches of the two brushes

supports Part. 3 and 4 (see Table 1) are inserted in the brush housing Part. 5 Table 1.

5. To end assembly, repeat the operations in the reverse order.

6. Adjust the height of the new brush (Ú see CENTRAL BRUSH ADJUSTMENT paragraph).

u REPLACING THE SIDE BRUSH:

This operation must be performed with the engine o and wearing gloves, using two 10 mm spanners.

1. Unscrew the three bolts Part. 4 Fig. 18 to detach the side brush Part. 1 Fig. 18 from the plastic ange Part.

5 Fig. 18.

2. Replace the worn brush and screw up the bolts Part. 4 Fig. 18 to the ange Part. 5 Fig. 18.

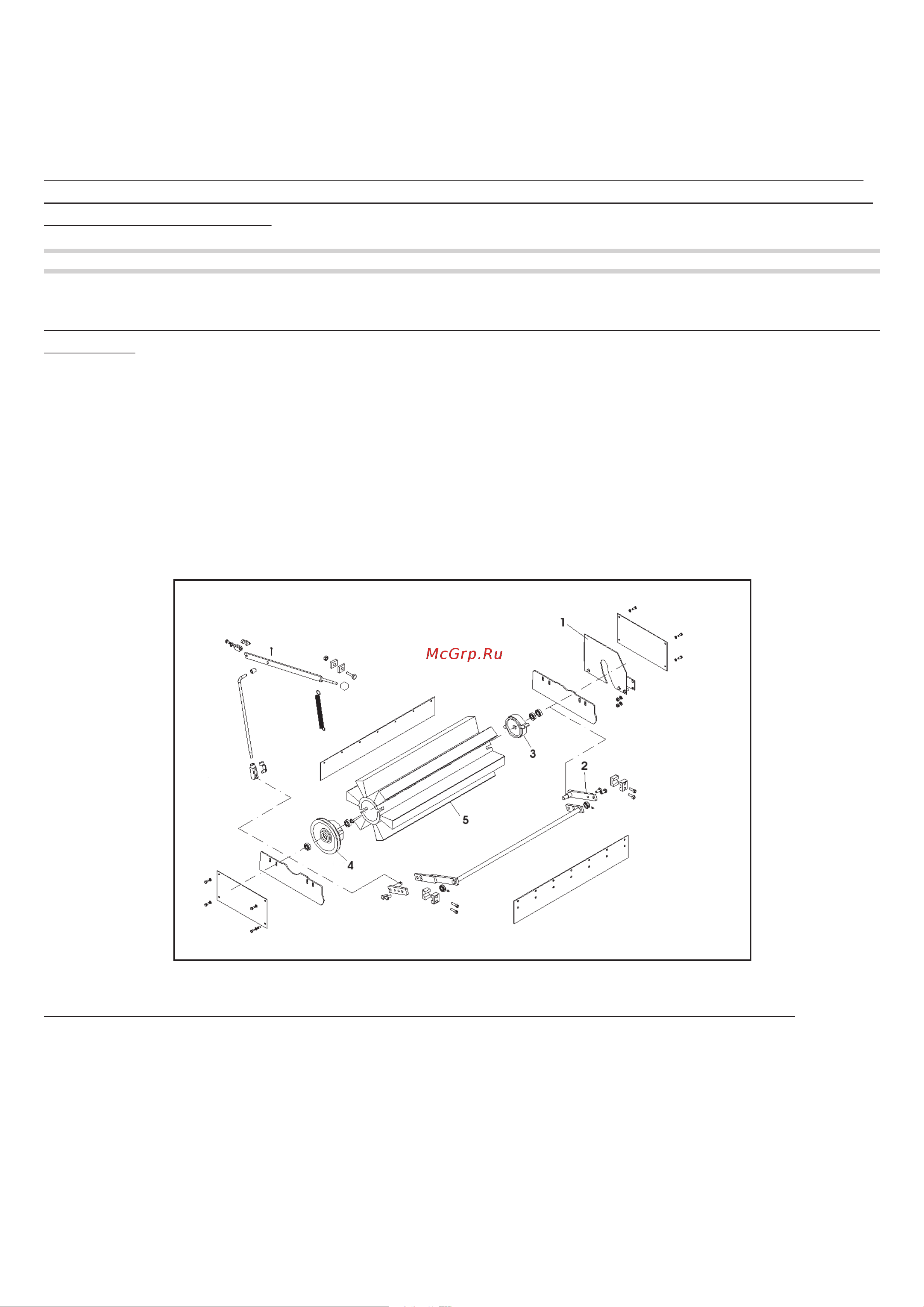

Table 1
