Ambient Temperature Air Entering Condenser (°C D.B.)
Return 25°C 30°C 35°C 40°C 43°C
Air TC TC TC TC TC
D.B. W.B. kW kW kW kW kW
17 6.87 6.60 6.21 5.74 5.41
23 19 7.26 7.03 6.67 6.22 5.90
22 7.92 7.71 7.36 6.88 6.56
17 6.79 6.53 6.15 5.70 5.38
25 19 7.26 7.01 6.64 6.18 5.86
22 7.92 7.68 7.30 6.80 6.50
17 6.71 6.45 6.09 5.66 5.35
27 19 7.27 7.00 6.60 6.14 5.81
22 7.91 7.65 7.25 6.73 6.44
17 6.69 6.45 6.07 5.70 5.42
29 19 7.26 7.00 6.60 6.19 5.88
22 7.88 7.61 7.20 6.74 6.43
17 6.68 6.45 5.64 5.73 5.46
32 19 7.25 7.00 6.60 6.22 5.93
22 7.86 7.59 7.19 6.75 6.43
TC: Cooling Capacity
Ambient Temperature Air Entering Condenser (°C D.B.)
Return 25°C 30°C 35°C 40°C 43°C
Air IPT IPT IPT IPT IPT
D.B. W.B. kW kW kW kW kW
17 2.05 2.22 2.41 2.65 2.81
23 19 2.17 2.35 2.56 2.81 2.97
22 2.34 2.54 2.76 3.03 3.21
17 2.05 2.21 2.41 2.63 2.79
25 19 2.18 2.36 2.56 2.80 2.97
22 2.35 2.54 2.77 3.02 3.21
17 2.05 2.21 2.40 2.61 2.77
27 19 2.19 2.36 2.57 2.79 2.96
22 2.37 2.55 2.78 3.02 3.20
17 2.04 2.21 2.38 2.55 2.66
29 19 2.18 2.36 2.54 2.73 2.84
22 2.40 2.60 2.80 3.00 3.13
17 2.03 2.20 2.36 2.51 2.59
32 19 2.17 2.35 2.52 2.68 2.76
22 2.42 2.63 2.81 2.99 3.08
IPT: Cooling Power Consumption

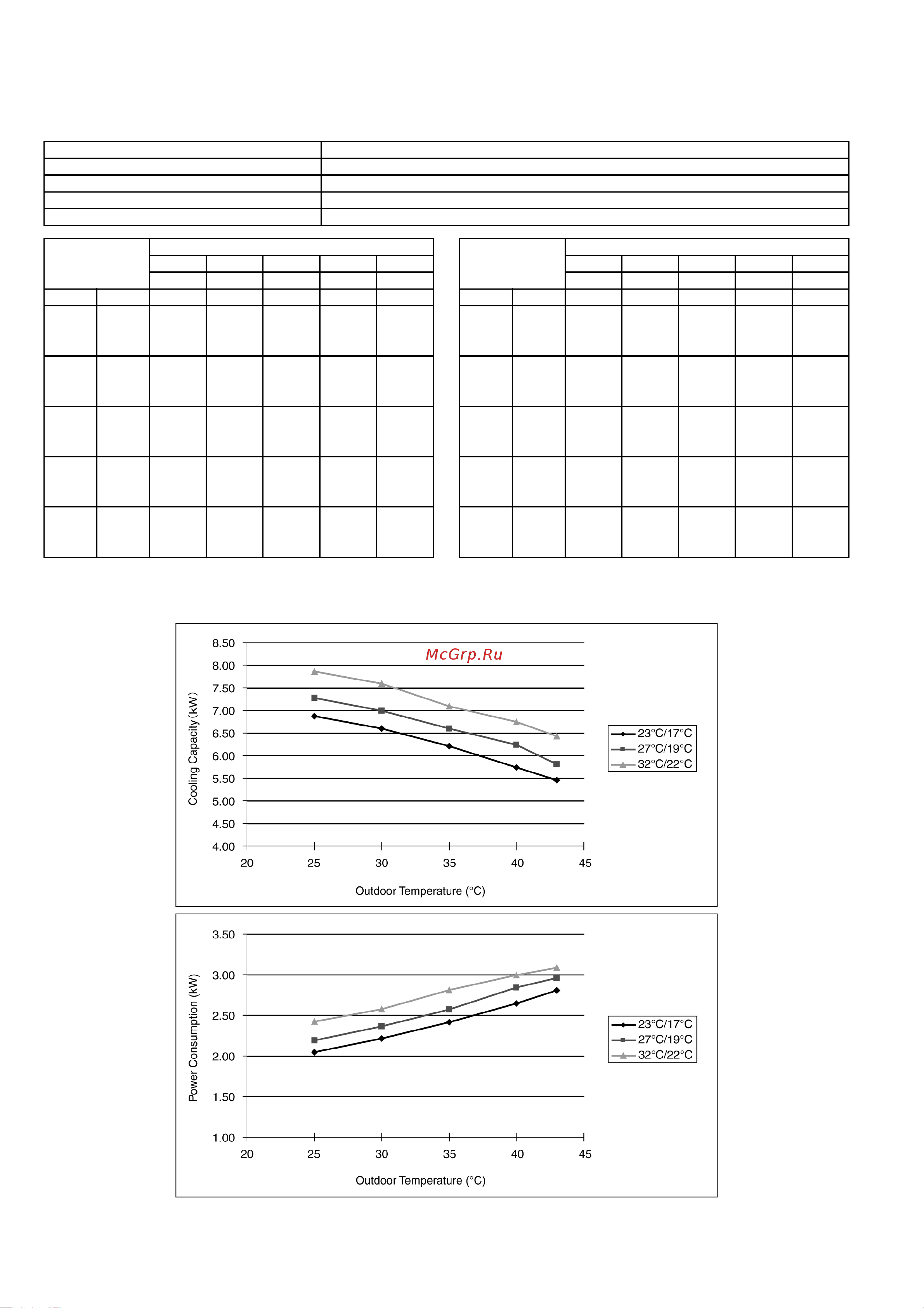

13.3. Capacity and power consumption
13.3.1. Cooling Performance
Model Cooling capacities are based on conditions
CS-F24DTE5 Single phase, 50Hz 230V
Cooling capacity Indoor temp. 27°C D.B. 19°C W.B.
6.6kW Outdoor temp. 35°C D.B.
Standard air volume 17 m
3
/min
106
