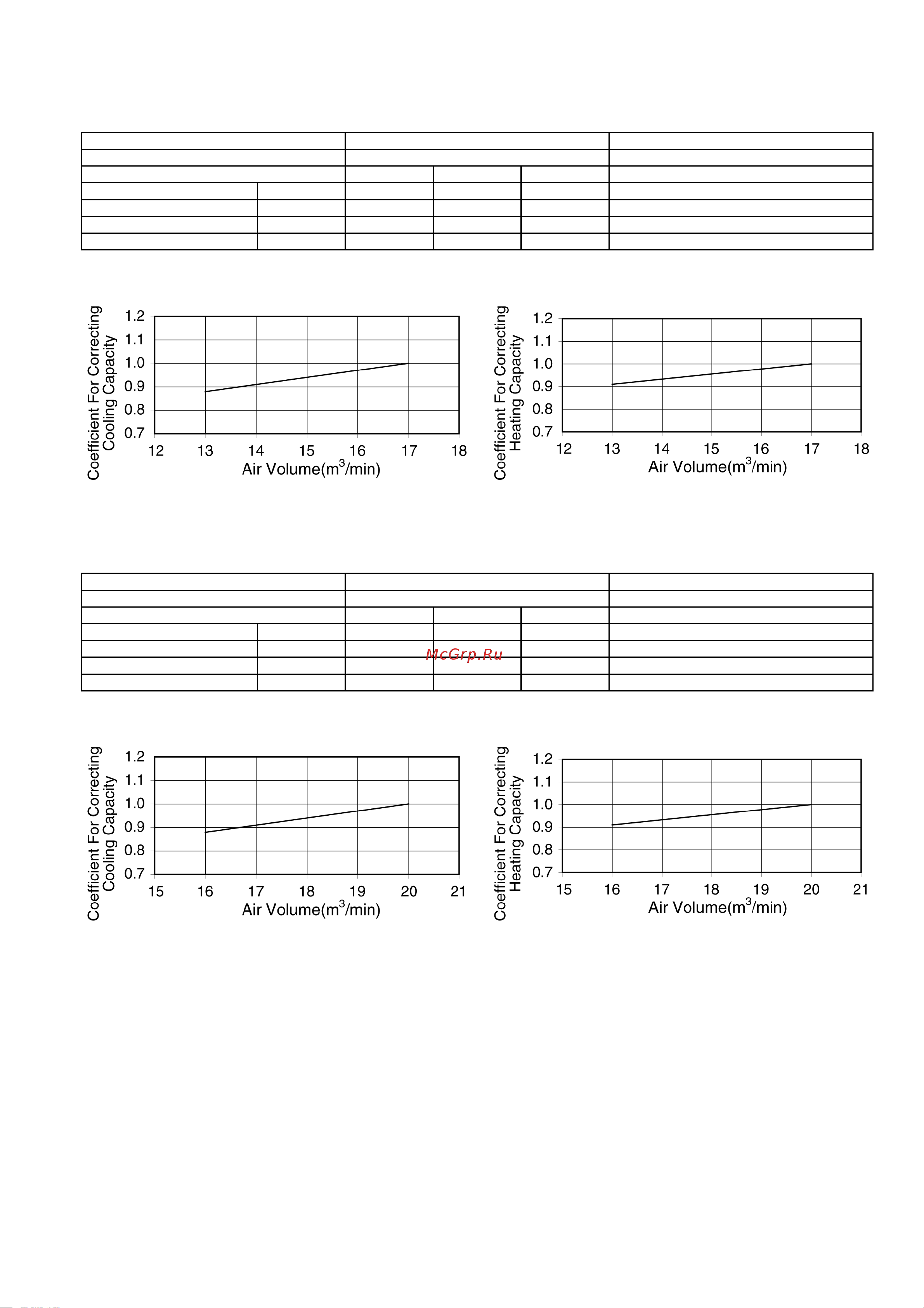

13.7. Fan performance
CS-F24DTE5 (220/230/240V)
ITEM/MODEL Indoor Unit Outdoor Unit
CS-F24DTE5 CU-B24DBE5
MODE Hi Me Lo Hi
Air Volume m
3
/min 17 15 13 60
Running Current A 0.40 0.35 0.28 0.61/0.62/0.63
Power Consumption kW 0.08 0.07 0.06 0.13/0.14/0.15
Fan Speed r/min 1145 995 950 660/685/705
CS-F28DTE5
ITEM/MODEL Indoor Unit Outdoor Unit
CS-F28DTE5 CU-B28DBE5/8
MODE Hi Me Lo Hi
Air Volume m
3
/min 20 18 16 63
Running Current A 0.45 0.40 0.35 0.64/0.65/0.66
Power Consumption kW 0.09 0.08 0.07 0.14/0.15/0.16
Fan Speed r/min 1220 1095 1045 690/710/730
127
