![Panasonic CS-F43DTE5 / CU-B43DBE8 [117/150] Hc heating capacity](/img/pdf.png)

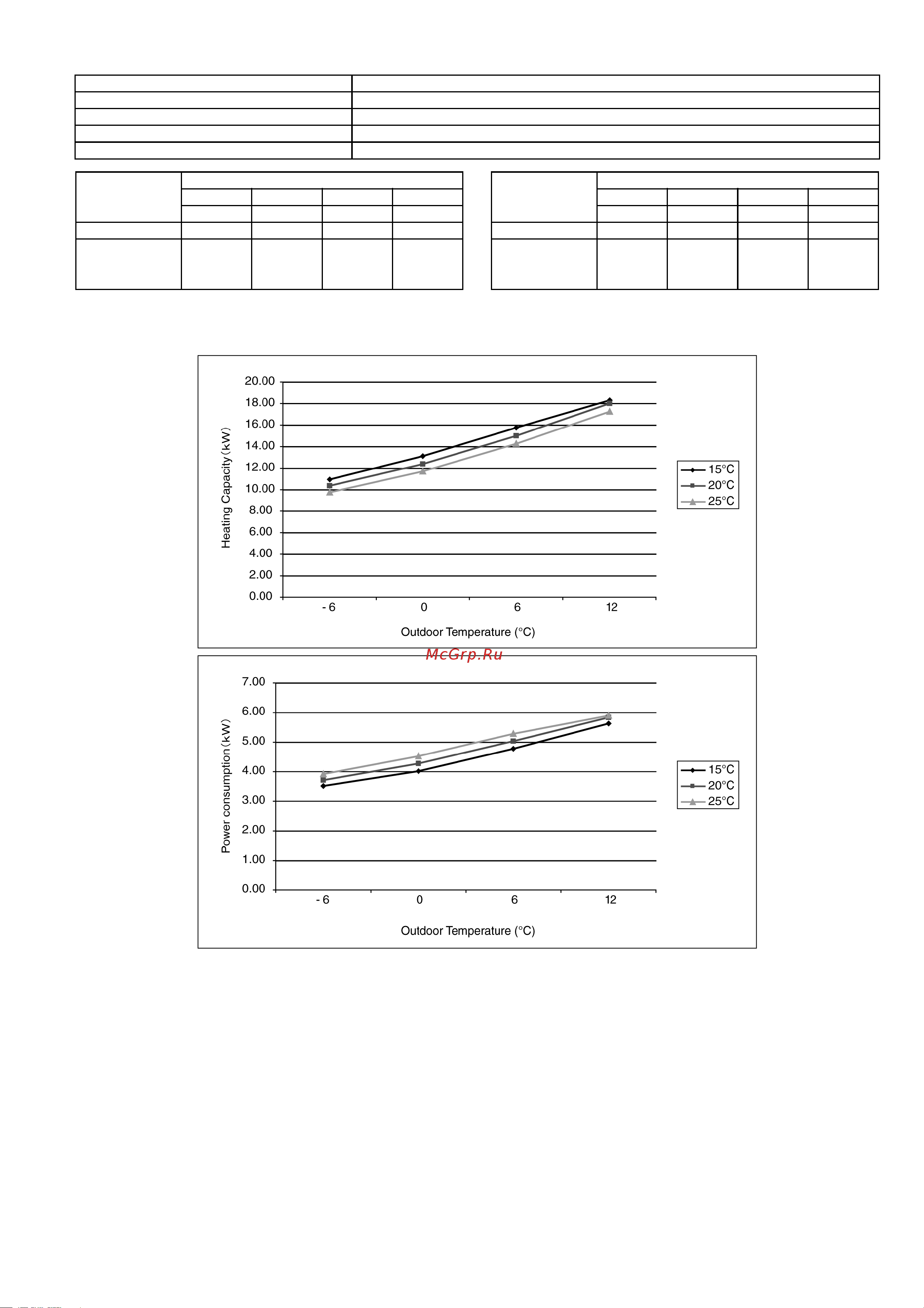

Panasonic CS-F43DTE5 / CU-B43DBE8 [117/150] Hc heating capacity
![Panasonic CS-F43DTE5 / CU-B43DBE8 [117/150] Hc heating capacity](/views2/1832395/page117/bg75.png)
Ambient Temperature Air Entering Condenser (°C D.B.)
Return -6°C 0°C 6°C 12°C
Air HC HC HC HC
D.B. kW kW kW kW
15 10.95 13.13 15.75 18.30
20 10.35 12.38 15.00 18.00
25 9.75 11.70 14.25 17.25
HC: Heating Capacity
Ambient Temperature Air Entering Condenser (°C D.B.)
Return -6°C 0°C 6°C 12°C
Air IPT IPT IPT IPT
D.B. kW kW kW kW
15 3.52 4.02 4.78 5.63
20 3.72 4.28 5.03 5.83
25 3.92 4.53 5.28 5.90
IPT: Heating Power Consumption
Model Heating capacities are based on conditions
CS-F50DTE5 3 phase, 50Hz 400V
Heating capacity Indoor temp. 20°C D.B.
13.5kW Outdoor temp. 7°C D.B. 6°C W.B.
Standard air volume 30.3 m
3
/min
117
