![Panasonic CS-F43DTE5 / CU-B43DBE8 [39/150] Outdoor fan remaining heat removal control](/img/pdf.png)
Panasonic CS-F43DTE5 / CU-B43DBE8 [39/150] Outdoor fan remaining heat removal control
![Panasonic CS-F43DTE5 / CU-B43DBE8 [39/150] Outdoor fan remaining heat removal control](/views2/1832395/page39/bg27.png)

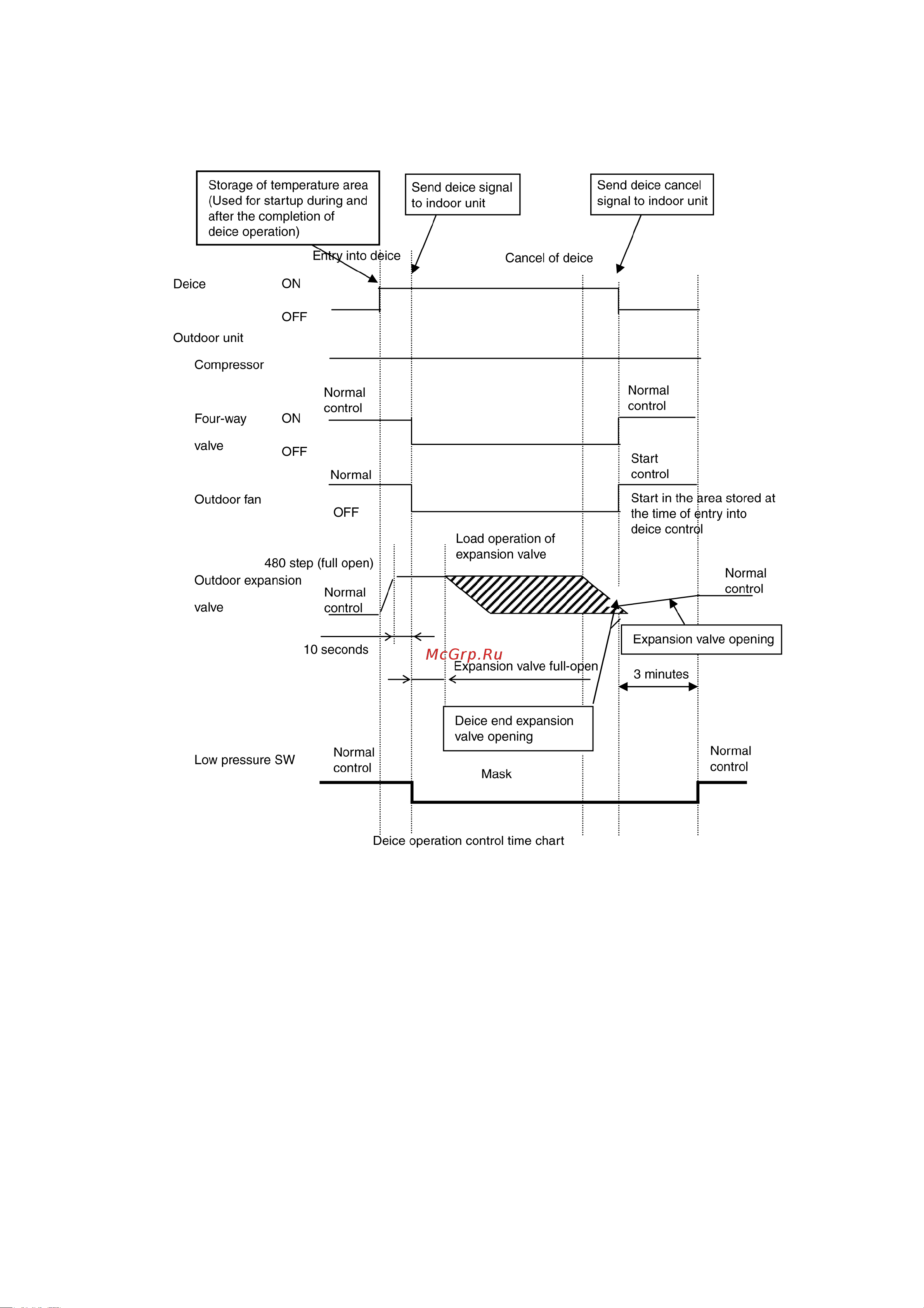

• During deice operation, [DEFROST] is displayed at wired remote control (when using wireless control, POWER is blinking at
receiver of indoor unit), hot start operate after deice operation finish.
• Deice operation start when accumulative heating operation time or after previous defrost end reaches 45 minutes, the outdoor
fan maintains Hi status and the outdoor heat exchanger maintains -2°C for 5 minutes.
9.7.9. Time Delay Safe Control
• The compressor will not start for three minutes after stop of operation.
9.7.10. Outdoor Fan Remaining Heat Removal Control
• When compressor stop, outdoor fan operates at High speed for 1 minute to remove the remaining heat.
9.7.11. Crank Case Heater Control
• Crank case heater ON when the compressor is shutdown and discharge temperature is 20°C to prevents the refrigerant solving
into compressor oil inside the compressor shell at cold condition.
9.7.12. High Temperature Protection
• During heating operation, when outdoor temperature is more than 35°C for 15 minutes, compressor stops in order to protect
the compressor.
• After 3 minutes (restart delay control) of waiting, if thermostat is ON, outdoor unit restart.
39
