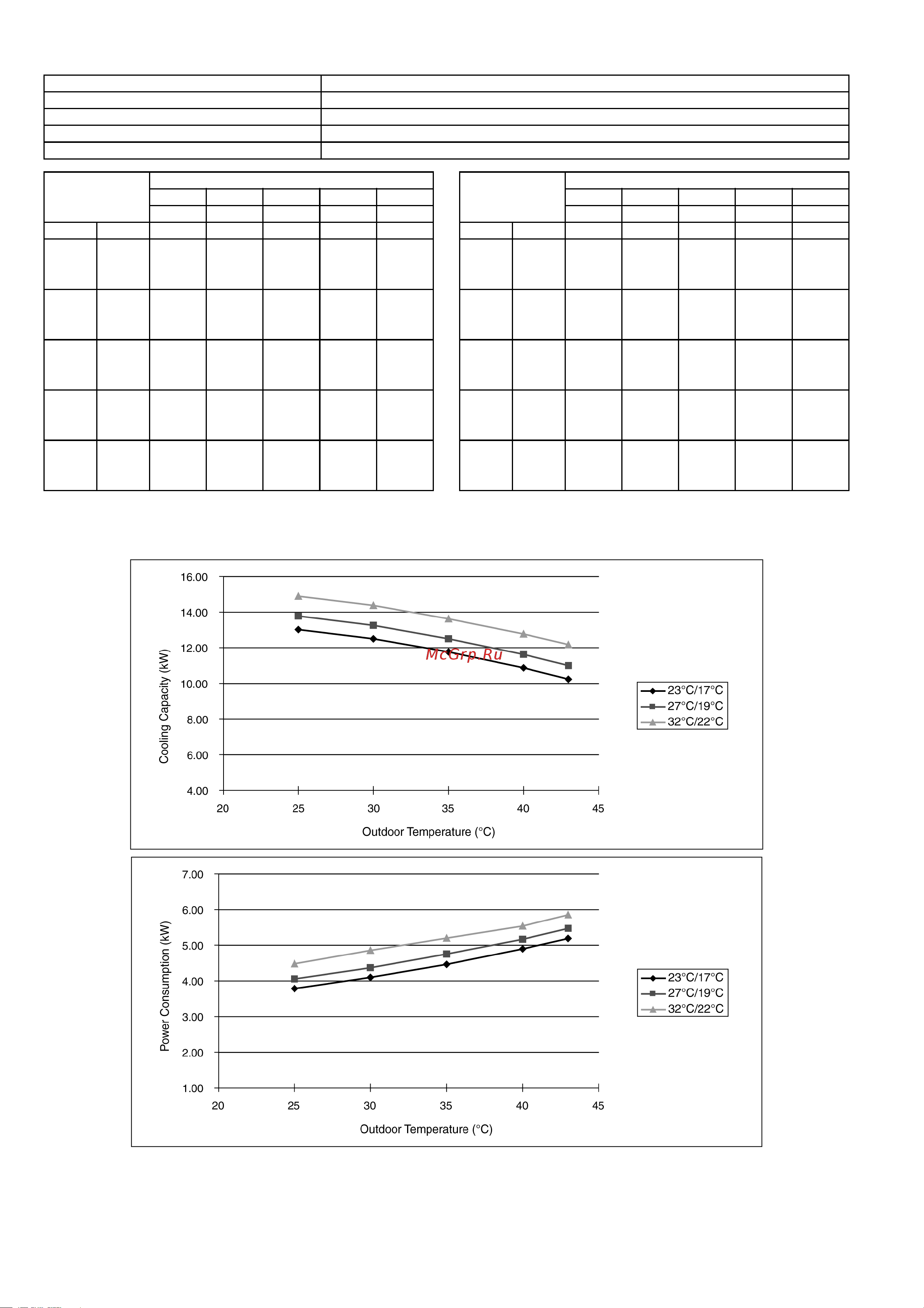

Panasonic CS-F43DTE5 / CU-B43DBE8 [110/150] Ipt cooling power consumption

Ambient Temperature Air Entering Condenser (°C D.B.)

Return 25°C 30°C 35°C 40°C 43°C

Air TC TC TC TC TC

D.B. W.B. kW kW kW kW kW

17 13.01 12.50 11.76 10.88 10.24

23 19 13.74 13.31 12.63 11.78 11.18

22 15.01 14.60 13.93 13.04 12.42

17 12.86 12.36 11.64 10.80 10.19

25 19 13.76 13.28 12.57 11.70 11.09

22 15.00 14.54 13.83 12.88 12.30

17 12.70 12.22 11.53 10.72 10.14

27 19 13.78 13.25 12.50 11.63 11.00

22 14.99 14.48 13.73 12.75 12.19

17 12.67 12.22 11.50 10.80 10.27

29 19 13.75 13.25 12.50 11.72 11.14

22 14.93 14.42 13.64 12.77 12.18

17 12.66 12.22 10.69 10.86 10.35

32 19 13.73 13.25 12.51 11.78 11.23

22 14.89 14.38 13.62 12.78 12.18

TC: Cooling Capacity

Ambient Temperature Air Entering Condenser (°C D.B.)

Return 25°C 30°C 35°C 40°C 43°C

Air IPT IPT IPT IPT IPT

D.B. W.B. kW kW kW kW kW

17 3.78 4.09 4.46 4.89 5.19

23 19 4.01 4.34 4.73 5.19 5.50

22 4.33 4.69 5.11 5.60 5.94

17 3.79 4.09 4.45 4.86 5.15

25 19 4.03 4.35 4.74 5.17 5.49

22 4.35 4.70 5.12 5.59 5.92

17 3.79 4.08 4.44 4.83 5.12

27 19 4.05 4.37 4.75 5.16 5.47

22 4.38 4.71 5.13 5.58 5.91

17 3.77 4.08 4.39 4.72 4.92

29 19 4.03 4.36 4.69 5.04 5.25

22 4.44 4.80 5.17 5.55 5.78

17 3.75 4.07 4.36 4.64 4.78

32 19 4.01 4.35 4.66 4.96 5.11

22 4.47 4.85 5.20 5.53 5.70

IPT: Cooling Power Consumption

Model Cooling capacities are based on conditions

CS-F43DTE5 3 phase, 50Hz 400V

Cooling capacity Indoor temp. 27°C D.B. 19°C W.B.

12.5kW Outdoor temp. 35°C D.B.

Standard air volume 30.3 m

/min

110
