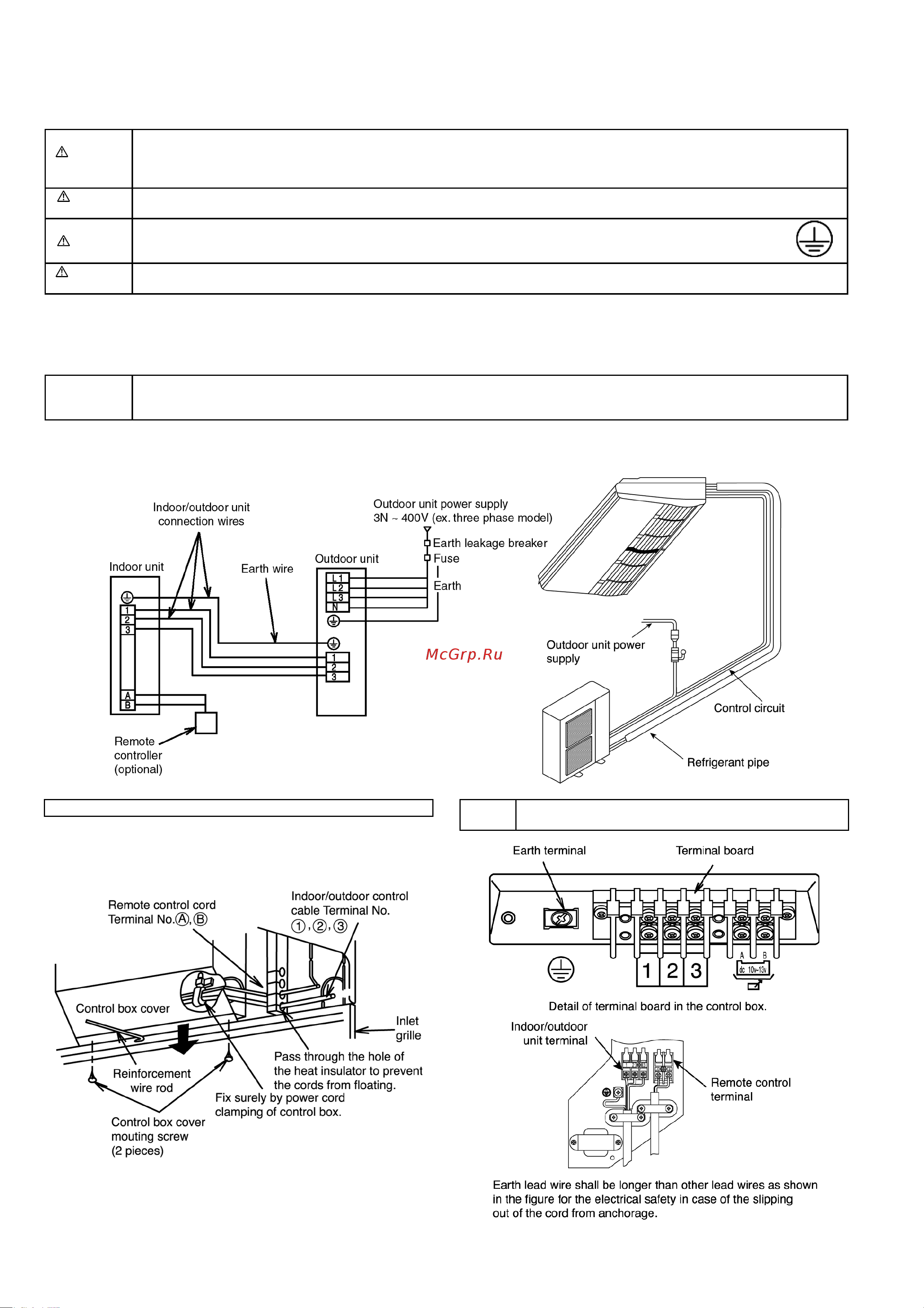

CONNECTING THE WIRES TO THE CONTROL BOX
• Remove a two mounting screw, remove the control box
cover, and then connect the wires by following the
procedure given in the illustration.
Caution Make sure that screws of the terminal are securely
tightened.
10.4.7. Electrical wiring
As to the main power source and cable size of outdoor unit, read the installation manual attached to the outdoor unit.
Warning
The units must be connected to the supply cables for fixed wiring by qualified technician.
Feed the power source to the unit via a distribution switch board designed for this purpose, the switch should disconnected all
poles with a contact separation of at least 3mm.
When the supply cable is damaged, it must be replaced by qualified technician.
Caution Be sure to install a current leakage breaker, main switch and fuse to the main power supply, otherwise electric shocks may
result.
Caution
Be sure to connect the unit to secure earth connection.
If the earthing work is not carried out properly, electric shock may result.
Warning
Wiring shall be connected securely using specified cables and fix them securely so that external force of the cables may not
transfer to the terminal connection section. Imperfect connection and fixing leads to fire, etc.
1. Select a power source that is capable of supplying the current required by the air conditioner.
2. Be sure to connect the wires correctly to terminal board with connecting the crimp type ring terminal to the wires.
3. Be sure to turn off the main power before installing and connecting the remote controller.
Note
If momentarily turning on the power supply for both the indoor and outdoor units, do not turn the power off after again until at
least 1 minute has passed. (for the system’s automatic setting.)
Turning off the power supply on the way may cause an abnormal operation.
• Use the standard power cord for Europe (such as HO5RN-F or HO7RN-F which conforms to CENELEC (HAR) rating
specifications) or use the cable based on IEC standard. (245IEC57, 245IEC66)
