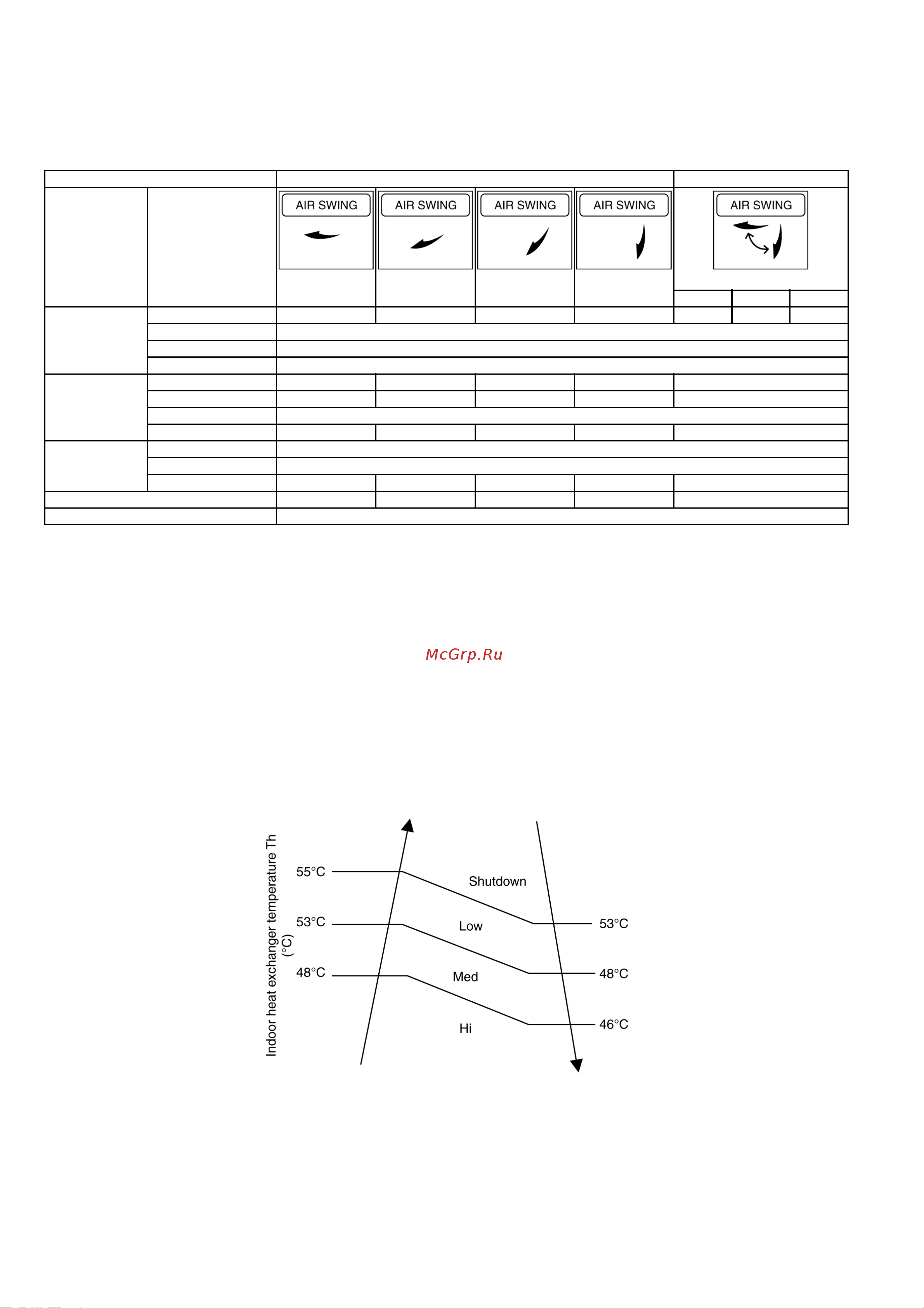

9.6.3. Louver control
• When power is on, at the same time, louver initialize 2 times.
• During operation, stopping, thermostat is off condition, louver angle change as below table by manual setting or auto setting of
remote controller.
Remote controller setting Manual Auto
Operation mode Display
Set 1 Set 2 Set 3 Set 4 Piping temp (heating)
A B C
Normal 20° 35° 50° 70° 70° 20° - 70° Set 1
Heating Deice 20°
Hot start 20°
Thermostat off 20°
Fan 20° 35° 50° 70° 20° - 70°
Cooling Normal 20° 35° 50° 70° 20° - 70°
(fan) Dew control 35°
Thermostat off 20° 35° 50° 70° 20° - 70°
Normal 35°
Soft Dry Dew control 35°
Thermostat off 20° 35° 50° 70° 20° - 70°
Operation mode judge 20° 35° 50° 70° 20°
Stop mode 70°
9.6.4. Cooling Outdoor Fan Control
• During cooling operation, outdoor fan speed changes according to outdoor pipe temperature.
• The fan speed is controlled by the timing of turning the outdoor fan ON and OFF within an interval.
• When outdoor pipe temperature increase, interval timing increased.
• Outdoor fan ON time is a variable with the range of 200ms to 2000ms.
• After 2 minutes, the outdoor pipe temperature is detected and the outdoor unit fan speed is changed automatically.
9.6.5. Heating Outdoor Fan Control
• During heating operation, the fan speed is controlled by indoor heat exchanger temperature.
• In case of twin operation, the higher indoor heat exchanger temperature is used to control the fan speed. During heating
operation, the fan speed is controlled by indoor heat exchanger temperature.
36
