CS-F43DTE5 / CU-B43DBE8
Сервис мануал Страница: 26

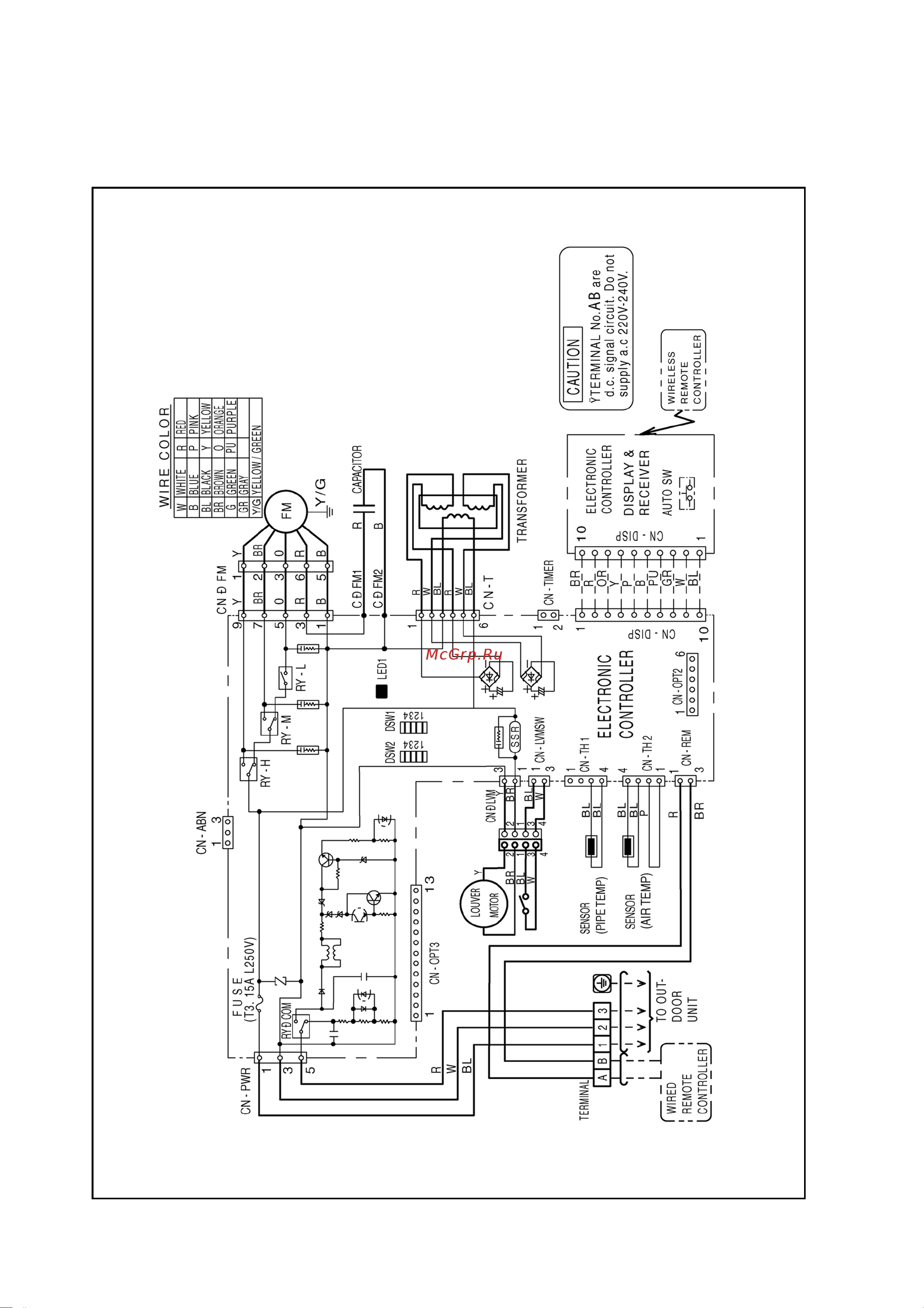

Panasonic CS-F43DTE5 / CU-B43DBE8 [26/150] Wiring diagram

Panasonic CU-B50DBE8 [26/150] Wiring diagram

7 Wiring Diagram

7.1. CS-F24DTE5 CS-F28DTE5

CS-F34DTE5 CS-F43DTE5 CS-F50DTE5
