CS-F43DTE5 / CU-B43DBE8
Сервис мануал Страница: 19

Panasonic CS-F43DTE5 / CU-B43DBE8 Сервис мануал онлайн [19/150] 626724

4.3. CU-B24DBE5 CU-B28DBE5 CU-B28DBE8

Содержание

Air conditioner 1
Contents 1
Cs f24dte5 cu b24dbe5 cs f28dte5 cu b28dbe5 cs f28dte5 cu b28dbe8 1
Cs f34dte5 cu b34dbe5 cs f34dte5 cu b34dbe8 cs f43dte5 cu b43dbe8 cs f50dte5 cu b50dbe8 1
Page page 1
Caution during automatic address setting 3
Caution of test operation 3
Example of trouble at test operation 3
Service information 3
Indoor and outdoor temperature 4
Model 50hz cu b24dbe5 cu b28dbe5 cu b34dbe5 cu b28dbe8 cu b34dbe8 cu b43dbe8 cu b50dbe8 4
Operation range 4
Power supply 4
The applicable voltage range for each unit is given in the following table the working voltage among the three phases must be balanced within a 3 deviation from each voltage at the compressor terminals the starting voltage must be higher than 85 of the rated voltage 4
Ceiling type 5
Easier maintenance and cleaning 5
Features 5
Flexible installation in smaller spaces 5
Outdoor unit 5
Wide air discharge comfortable control 5
Low ambient cooling operation 6
Quiet efficient design 6
Wired remote control 7
Wireless remote control 7
Group control equipment 8
Cooling capacities are based on indoor temperature of 27 c d b 80 f d b 19 c w b 66 f w b and outdoor air temperature of 35 c d b 95 f d b 24 c w b 75 f w b 9
Cs f24dte5 cu b24dbe5 9
Electrical data 50 hz 9
Heating capacities are based on indoor temperature of 20 c d b 68 f d b and outdoor air temperature of 7 c d b 44 f d b 6 c w b 42 f w b 9
Product specification 9
Cooling capacities are based on indoor temperature of 27 c d b 80 f d b 19 c w b 66 f w b and outdoor air temperature of 35 c d b 95 f d b 24 c w b 75 f w b 10
Cs f28dte5 cu b28dbe5 10
Electrical data 50 hz 10
Heating capacities are based on indoor temperature of 20 c d b 68 f d b and outdoor air temperature of 7 c d b 44 f d b 6 c w b 42 f w b 10
Cooling capacities are based on indoor temperature of 27 c d b 80 f d b 19 c w b 66 f w b and outdoor air temperature of 35 c d b 95 f d b 24 c w b 75 f w b 11
Cs f28dte5 cu b28dbe8 11
Electrical data 50 hz 11
Heating capacities are based on indoor temperature of 20 c d b 68 f d b and outdoor air temperature of 7 c d b 44 f d b 6 c w b 42 f w b 11
Cooling capacities are based on indoor temperature of 27 c d b 80 f d b 19 c w b 66 f w b and outdoor air temperature of 35 c d b 95 f d b 24 c w b 75 f w b 12
Cs f34dte5 cu b34dbe5 12
Electrical data 50 hz 12
Heating capacities are based on indoor temperature of 20 c d b 68 f d b and outdoor air temperature of 7 c d b 44 f d b 6 c w b 42 f w b 12
Cooling capacities are based on indoor temperature of 27 c d b 80 f d b 19 c w b 66 f w b and outdoor air temperature of 35 c d b 95 f d b 24 c w b 75 f w b 13
Cs f34dte5 cu b34dbe8 13
Electrical data 50 hz 13
Heating capacities are based on indoor temperature of 20 c d b 68 f d b and outdoor air temperature of 7 c d b 44 f d b 6 c w b 42 f w b 13
Cooling capacities are based on indoor temperature of 27 c d b 80 f d b 19 c w b 66 f w b and outdoor air temperature of 35 c d b 95 f d b 24 c w b 75 f w b 14
Cs f43dte5 cu b43dbe8 14
Electrical data 50 hz 14
Heating capacities are based on indoor temperature of 20 c d b 68 f d b and outdoor air temperature of 7 c d b 44 f d b 6 c w b 42 f w b 14
Cooling capacities are based on indoor temperature of 27 c d b 80 f d b 19 c w b 66 f w b and outdoor air temperature of 35 c d b 95 f d b 24 c w b 75 f w b 15
Cs f50dte5 cu b50dbe8 15
Electrical data 50 hz 15
Heating capacities are based on indoor temperature of 20 c d b 68 f d b and outdoor air temperature of 7 c d b 44 f d b 6 c w b 42 f w b 15
Indoor unit 16
Mpa 10 kgf c 16
Outdoor unit 16
Safety devices 16

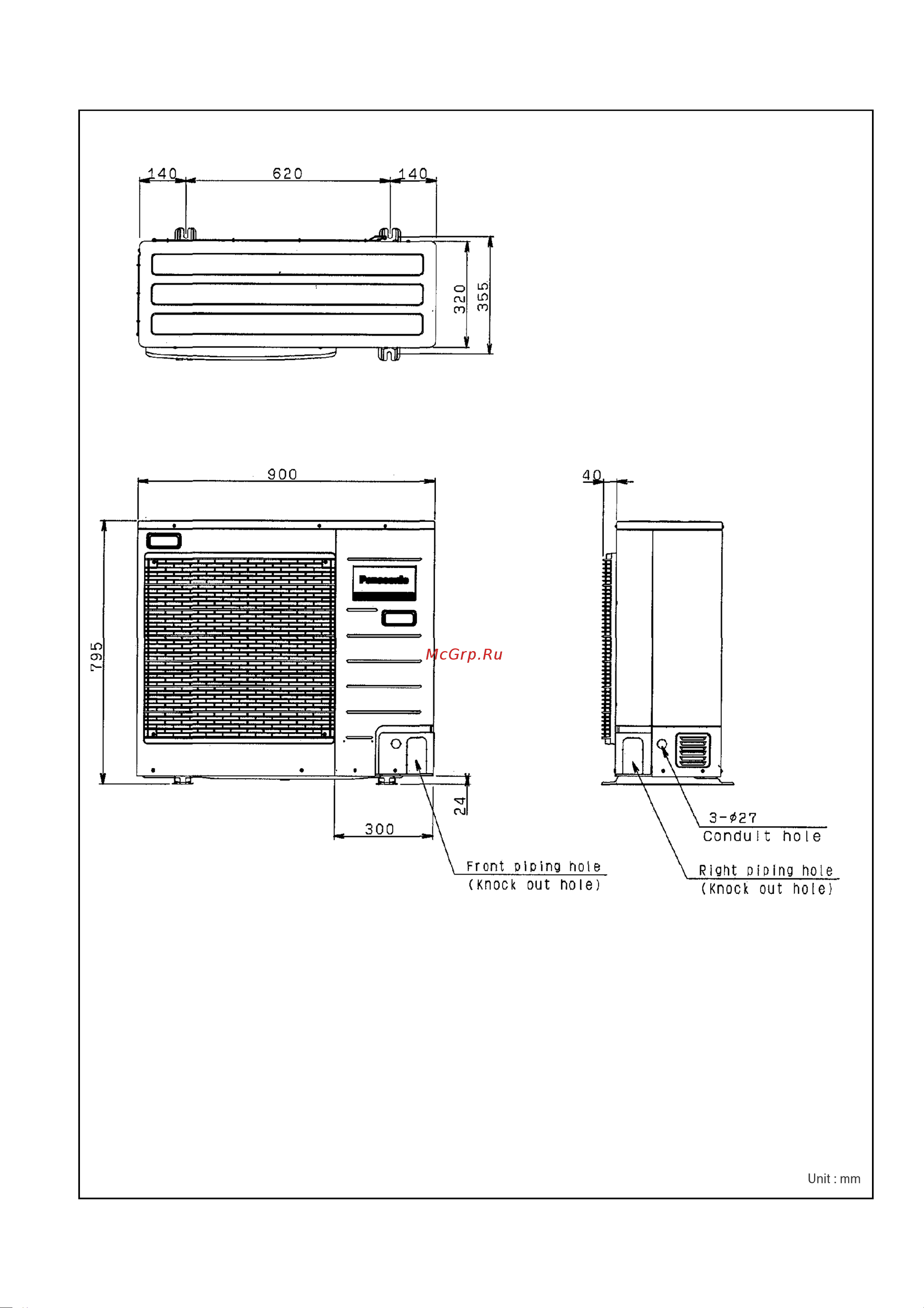

Dimensions 17
Refrigeration cycle 21
Block diagram 23
Wiring diagram 26
Buttons marked with are not needed for normal operation if one of these buttons is pressed by mistake press the same button once more to cancel the operation 31
Do not operate the remote control with wet hands otherwise electric shock or malfunction may occur 31
Do not press the remote control buttons with sharp object as this may damage the remote control 31
Ensure that the correct button is pressed as simultaneous pressing of the multiple buttons will not make the setting correct 31
Name and function of each part 31
Operating instructions 31
The illustration above is for explanatory purposes only the appearance will be different during actual operation 31
When the power resumed after power failure the unit will restart automatically with all the previous settings preserved by the memory function auto restart function 31
Wired remote control 31
Buttons marked with are not needed for normal operation if one of these buttons is pressed by mistake press the same button once more to cancel the operation 32
Ensure that the correct button is pressed as simultaneous pressing of the multiple buttons will not make the setting correct 32
If using the wireless remote control in conjunction with the wired remote control the settings made from the wireless remote control will appear on the wired remote control display except when making timer settings 32
Name and function of each part 32
The illustration above is for explanatory purpose only the appearance will be different during actual operation 32
When the power resumed after power failure the unit will restart automatically with all previous settings preserved by the memory function auto restart function 32
Wireless remote control 32
Cooling operation 33
Operation details 33
Auto operation 34
Fan operation 34
Heating operation 34
Soft dry operation 34
Auto fan speed when operation start or shifting to thermostat on condition from thermostat off condition indoor fan operates as below 35
Cooling indoor fan control 35
Heating indoor fan control 35
However when operation start or during operation fan speed control is limited due to prevent a cold draft for example when heating operation start 35
If thermostat is off indoor fan fixed low speed louver angle fixed at upper limit regardless remote control setting 35
Manual fan speed operation starts at high medium or low speed set by remote control 35
Normal control 35
After 2 minutes the outdoor pipe temperature is detected and the outdoor unit fan speed is changed automatically 36
Cooling outdoor fan control 36
During cooling operation outdoor fan speed changes according to outdoor pipe temperature 36
During heating operation the fan speed is controlled by indoor heat exchanger temperature 36
During operation stopping thermostat is off condition louver angle change as below table by manual setting or auto setting of remote controller 36
Heating outdoor fan control 36
In case of twin operation the higher indoor heat exchanger temperature is used to control the fan speed during heating operation the fan speed is controlled by indoor heat exchanger temperature 36
Louver control 36
Outdoor fan on time is a variable with the range of 200ms to 2000ms 36
The fan speed is controlled by the timing of turning the outdoor fan on and off within an interval 36
When outdoor pipe temperature increase interval timing increased 36
When power is on at the same time louver initialize 2 times 36
Drain pump control 37
Odour cut control 37
Operation control 37
Powerful control 37
Deice control 38
Dew form prevention control 38
Energy saving 38
Freeze prevention control 38
Hot start operation control 38
Crank case heater control 39
High temperature protection 39
Outdoor fan remaining heat removal control 39
Time delay safe control 39
Outdoor high pressure protection control 40
Outdoor low pressure protection control 40
Protection control 40
Pump down control 40
Thermostat control 40
Connection capacity protection control 41
Ct disconnection detection control 41
Discharge temperature protection control 41
Four way valve error detection control 41
Over current protection control 41
Sensor disconnection detection control 41
High pressure switch disconnection error detection control 42
Low pressure switch disconnection error detection control 42
Test run 42
Valve error detection control 42
Add refrigerant main pipe branch pipe la branch pipe lb 2 8 30 50 formula 2 43
Add refrigerant main pipe branch pipe la branch pipe lb 30 50 formula 4 43
Calculation 1 43
Calculation 2 43
Correction of capacities 43
Correction of capacities according to the connecting pipe length 43
For other pipe length of other installation multiply by the following correction factor to determine the revised cooling capacity 43
In case of cu b24dbe5 cu b28dbe5 cu b28dbe8 43
In case of cu b34dbe5 cu b34dbe8 cu b43dbe8 cu b50dbe8 43
Installation instruction 43
Pipe length 43
Pipe length main pipe branch pipe la branch pipe lb 2 8 formula 1 43
Pipe length main pipe branch pipe la branch pipe lb formula 3 43
Piping elevation b outdoor unit installed at top 43
Piping elevation c outdoor unit installed at bottom 43
The data of rated capacities marked on the name plate are based on 7 meters connecting pipe and horizontal installation 43
When pipe length exceed 30m calculated by formula 1 adding refrigerant amount should be calculated by formula 2 if calculation result is less than 30m it is not necessary to add refrigerant 43
When pipe length exceed 30m calculated by formula 3 adding refrigerant amount should be calculated by formula 4 if calculation result is less than 30m it is not necessary to add refrigerant 43
At the time of shipment from the factory this unit is charged with enough refrigerant for an equivalent pipe length of 30 m refer the following table 44
But when the piping length exceeds 30m additional charge is required according to the following table 44
Cu b24dbe5 44
Example 44
In case of 50m long pipe one way the amount of refrigerant to be replenished is 50 30 x 50 1 000g 44
Piping installation by standard piping 44
Refrigerant additional charge 44
Position of the centre gravity 45
After installation work has been completed do not only make sure that the unit is free from any abnormal condition through the execution of trial run but also explain how to use and how to perform maintenance of this unit to the customer according to the instruction manual 46
As to indications with illustration 46
Cautions such items also have a chance for leading to significant result depending on the situations 46
Cautions those that have much chance for leading to significant result such as fatality or serious injury if wrong installation would have been carried out are listed compiling them especially into the column of 46
However even in the case of items which are listed in the column of 46
In addition request the customer to keep this manual for installation work together with instruction manual 46
In either case important descriptions regarding the safety are listed then observe them without fail 46
Indoor unit installation 46
Precautions shown here are differentiated between 46
Warnings 46
Warnings and 46
Accessories packed in the indoor unit container 47
Do not install the indoor unit at a laundry electric shocks may result 47
If the power supply is subject to noise generation add a suppressor 47
In places such as restaurants and kitchens considerable amount of oil steam and flour adhere to the fan and the fin of the heat exchanger may result in heat exchange reduction spraying or dispersing of water drops etc 47
In these cases take the following actions 47
Install the indoor unit once the following conditions are satisfied and after receiving the customer approval 47
Provide a check port on the piping side ceiling for repair and maintenance 47
Selecting the location for indoor unit 47
Study throughly the following installation locations 47
The indoor unit must allow easy connection to the outdoor unit 47
The indoor unit must allow easy draining 47
The indoor unit must be at least 3m away from any noise generating equipment the electrical wiring must be shielded with a steel conduit 47
The indoor unit must be away from heat and steam sources but avoid installing it near an entrance 47
The indoor unit must be free from any obstacles in path of the air inlet and outlet and must allow spreading of air throughout the room 47
The indoor unit must keep a maintenance space 47
The installation position must be able to support a load four times the indoor unit weight 47
Warnings 47
Installation of indoor unit 48
Indoor unit drain piping 50
Refrigerant piping 50
Heat insulation 51
As to the main power source and cable size of outdoor unit read the installation manual attached to the outdoor unit 52
Be sure to connect the wires correctly to terminal board with connecting the crimp type ring terminal to the wires 52
Be sure to turn off the main power before installing and connecting the remote controller 52
Electrical wiring 52
Remove a two mounting screw remove the control box cover and then connect the wires by following the procedure given in the illustration 52
Select a power source that is capable of supplying the current required by the air conditioner 52
Use the standard power cord for europe such as ho5rn f or ho7rn f which conforms to cenelec har rating specifications or use the cable based on iec standard 245iec57 245iec66 52
0 precautions in test run 53
As for timer output 53
Settings 53
1 check the following items when installation is complete 54
2 hand over 54
After installation work has been completed do not only make sure that the unit is free from any abnormal condition through the execution of try run but also explain how to use and how to perform maintenance of this unit to the customer according to the instruction manual 55
As to indications with illustration 55
Cautions such items also have a chance for leading to significant result depending on the situations 55
Cautions those that have much chances for leading to significant result such as fatality or serious injury if wrong installation would have been carried out are listed compiling them especially into the column of 55
However even in the case of items which are listed in the column of 55
In addition request the customer to keep this manual for installation work together with instruction manual 55
In either case important descriptions regarding the safety are listed then observe them without fail 55
Outdoor unit installation 55
Precautions shown here are differentiated between 55
Warnings 55
Warnings and 55
A brazing work 56
Accessories supplied with outdoor unit 56
Before installation work 56
Brazing work needs replacing air inside pipe with nitrogen gas in order to prevent oxidation scale from occurring this is called nitrogen replacement and one of very important work in brazing refrigerant piping oxidation preventive is not possible to use 56
Charge hose 56
Check that all accessory parts are present before installing the outdoor unit 56
Gas leakage detection warning device 56
Gauge manifold 56
Installation work 56
The following parts are supplied as accessories with each outdoor unit 56
There are tools and materials for both new refrigeration and usual refrigeration you can use together and for either two of them you can use use the below for new refrigeration 56
This product is using new refrigeration r410a the basic way of installation work is the same as usual but water and impurities should be controlled more strictly than before due to characteristic of refrigerating machine oil therefore selection of materials to use and processing storing and brazing need appropriate construction and control 56
Tools and materials 56
Vacuum pump with back flow preventor system 56
After that keep the pressure 100 kpa for 1 hour and confirm the vacuum gauge value not increasing 58
Dry vacuuming 58
Handling the unit by hold the handle at compressor side and hold the basepan bottom at fan side 58
If vacuum gauge value is increase there is possibility of water inside the unit or there is any leakage 58
If vacuum pump possible vacuuming until less than 100 kpa 58
Regarding handling 58
Running vacuum pump at both liquid and gas side for more than 1 hour and vacuuming until 100 kpa 58
Select location which satisfies the following condition and then confirm with the customer that such a place is satisfactory before installing the outdoor unit 58
Selecting the outdoor unit installation locations 58
Transporting and installing the outdoor unit 59
Connecting the pipes 60
Charging with refrigerant 61
Heat insulation 61
Clamp the wires securely to the terminal connections using cord clamps so that no undue force is placed on the wires 62
Connect the power supply wiring and indoor outdoor unit connection wiring according to the electrical circuit diagram instructions 62
Earth lead wire shall be longer than other lead wires as shown in the figure for the electrical safety in case of the slipping out of the 62
Electrical wiring 62
Once all wiring work has been completed tie the wires and cords together with the binding strap so that they do not touch other parts such as the compressor and pipes 62
Operate the pump down according to the following procedures 62
Pump down operation 62
Cord from the anchorage 63
Power supply specifications 63
0 connecting power supply cables 64
1 precautions with regard to test operation 64
Caution 64
For three phase model never operate the unit by pressing the electromagnetic switch 64
Never correct the phase by switching over any of the wires inside the unit 64
2 as to making the inspection after completion of work fully understood 65
3 as to delivery to the customer 65
As to the structure and appearance check following items 65
At the time when the work has been completed measure and record the characteristics of test run without fail and keep the measuring date etc 65
Carry out the measurement regarding room temperature outside air temperature suction and air discharge temperatures wind velocity wind volume voltage current presence of abnormal vibration operating pressure piping temperature compressive pressure airtight pressure as items to be measured 65
Deliver the instruction manual to the customer without fail 65
Request the customer to operate this air conditioner viewing instruction manual come with indoor unit in practice and explain how to operate 65
Accessories supplied with wired remote controller 66
Notes regarding wired remote controller setting up location 66
Remote controller installation 66
Wired remote control installation 66
Settings 69
Self diagnosis function 71
Test operation 71
Accessories supplied with the wireless remote controller 73
After installing the wireless remote controller carry out a test operation to check that the remote controller functions properly and also explain the operation and cleaning procedures to the customer in accordance with the details in the instruction manual 73
Before installing the wireless remote controller be sure to thoroughly read the notes with regard to safety section of the installation manual provided with the indoor unit 73
Furthermore ask the customer to keep this installation manual and the instruction manual in a safe place for later reference 73
If installing in a place where a power supply is generating electromagnetic noise take measures such as installing a noise filter 73
If the remote controller is at an angle to the receptor unit the operation range may become shortened 73
If using an inverter type fluorescent light keep the receptor unit at least 1m away from the light otherwise remote control operation may not work properly 73
Install at least 1m away from equipment such as tvs and radios otherwise picture distortion or static may occur 73
Install at least 3m away from any noise sources and shield the electric cables using an iron conduit pipe 73
Installing the wireless remote controller to a wall for remote control storage 73
Points and notes regarding wireless remote controller setting up location 73
The accessory receptor unit must be attached to the veneer panel 73
The receptor unit for the wireless remote controller should be in a place where it will not be affected by direct light from fluorescent lights refer to the illustration below 73
The wireless remote controller can be used to operate indoor units at a maximum range of 8 metres from directly facing infront of the indoor unit 73
Wireless remote control installation manual 73
Installing the receptor unit 74
In the control box 76
Receptor unit for ceiling type assembly procedure 76
Route for wiring the cord as shown in the figure to the right 76
Address setting for wireless remote controller and receptor unit only when using more than one indoor unit 77
Emergency operation 79
Twin operation 80
A chemical characteristics the chemical characteristics of r410a are similar to those of r22 in that both are chemically stable non flammable refrigerants with low toxicity however just like r22 the specific gravity of r410a gas is heavier than that of air because of this it can cause an oxygen deficiency if it leaks into a closed room since it collects in the lower area of the room it also generates toxic gas when it is directly exposed to a flame so it must be used in a well ventilated environment where it will not collect 81
About r410a refrigerant 81
B compositional change pseudo azeotropic characteristics r410a is a pseudo azeotropic mixture comprising the two components r32 and r125 multi component refrigerants with these chemical characteristics exhibit little compositional change even from phase changes due to vaporization or condensation which means that there is little change in the circulating refrigerant composition even when the refrigerant leaks from the gaseous section of the piping accordingly r410a can be handled in almost the same manner as the single component refrigerant r22 however when charging because there is a slight change in composition between the gas phase and the liquid phase inside a cylinder or other container charging should basically begin with the liquid side 81
C pressure characteristics as seen in table 2 the gas pressure of r410a is approximately 1 times as high as that of r22 at the same refrigerant temperature which means that special r410a tools and materials with high pressure specifications must be used for all refrigerant piping work and servicing 81
Converting air conditioners to r410a since it was declared in1974 that chlorofluorocarbons cfc hydro chlorofluorocarbons hcfc and other substances pose a destructive danger to the ozone layer in the earth s upper stratosphere 20 to 40 km above the earth measures have been taken around the world to prevent this destruction the r22 refrigerant which has conventionally been used in acs is an hcfc refrigerant and therefore possesses this ozone destroying potential international regulations the montreal protocol on ozone damaging substances and the domestic laws of various countries call for the early substitution of r22 by a refrigerant which will not harm the ozone layer 81
In acs the hfc refrigerant which has become the mainstream alternative is called r410a compared with r22 the pressure of r410a is approximately 1 times as high at the same refrigerant temperature but the energy efficiency is about the same consisting of hydrogen h fluorine f and carbon c r410a is an hfc refrigerant another typical hfc refrigerant is r407c while the energy efficiency of r407c is somewhat inferior to that of r410a it offers the advantage of having pressure characteristics which are about the same as those of r22 and is used mainly in packaged acs 81
Installation and servicing air conditioner using r410a 81
Outline 81
The characteristics of hfc r410a refrigerants 81
1 always replace the dryer of the outdoor unit at the same time the replacement dryer is wrapped in a vacuum pack replace it last among the refrigerating cycle parts start brazing as soon as you have opened the vacuum pack and begin the vacuuming operation within 2 hours 82
1 you can use the conventional r22 flaring tool if you need to buy a new tool buy the r410a type 82
2 use when it is necessary to detect small gas leaks 82
After finishing the installation check to make sure there is no refrigerant gas leaking 82
Cause the gas pressure of r410a is approximately 1 times as high as that of r22 a mistake in installation or servicing could result in a major accident it is essential that you use r410a tools and materials and that you observe the following precautions to ensure safety 82
D r410a refrigerating machine oil conventionally mineral oil or a synthetic oil such as alkylbenzene has been used for r22 refrigerating machine oil because of the poor compatibility between r410a and conventional oils like mineral oil however there is a tendency for the refrigerating machine oil to collect in the refrigerating cycle for this reason polyester and other synthetic oils which have a high compatibility with r410a are used as refrigerating machine oil because of the high hygroscopic property of synthetic oil more care must be taken in its handling than was necessary with conventional refrigerating machine oils also these synthetic oils will degrade if mixed with mineral oil or alkylbenzene causing clogging in capillary tubes or compressor malfunction do not mix them under any circumstances 82
Do not perform any alterations on the ac unit under any circumstances have all repair work done by a specialist incorrect repairs can result in a water leakage electric shock fire etc 82
Do not use any refrigerant other than r410a in acs that have been used with r410a 82
For other installation work you should have the usual tools such as screwdrivers a metal cutting saw an electrical drill a hole core drill 65 or 70 dia a tape measure a level a thermometer a clamp meter an insulation tester a voltmeter etc 82
If any refrigerant gas leaks while you are working ventilate the room toxic gas may be generated if refrigerant gas is exposed to a direct flame 82
In order to prevent an r410a ac from mistakenly being charged with any other refrigerant the diameter of the 3 way valve service port on the outdoor unit has been changed also to increase its ability to withstand pressure the opposing dimensions have been changed for the refrigerant pipe flaring size and flare nut accordingly when installing or servicing refrigerant piping you must have both the r410a and ordinary tools listed below 82
Necessary tools 82
Safety measures when installing servicing refrigerant piping 82
Tools for installing servicing refrigerant piping 82
When installing or transferring an ac do not allow any air or substance other than r410a to mix into the refrigeration cycle if it does the pressure in the refrigeration cycle can become abnormally high possibly causing an explosion and or injury 82
When installing or transferring an ac follow the instructions in the installation instructions carefully incorrect installation can result in an abnormal refrigeration cycle or water leakage electric shock fire etc 82
Because the pressure is higher for the r410a type the conventional type cannot be used 83
Copper tube gauge for clearance adjustment used when flaring with the conventional flaring tool clutch type 83
Flaring tool clutch type 83
In the r410a flaring tool the receiving hole for the clamp bar is enlarged so the clearance from the clamp bar can be set to 0 0 mm and the spring inside the tool is strengthened to increase the strength of the pipe expanding torque this flaring tools can also be used with r22 piping so we recommend that you select it if you are buying a new flaring tool 83
Manifold gauge 83
R410a tools 83
The shape of the manifold ports has been changed to prevent the possibility of mistakenly charging with another type of refrigerant 83
This gauge makes it easy to set the clearance for the copper tube to 1 1 mm from the clamp bar of the flaring tool 83
Torque wrenches 83
R410a tools which are usable for r22 models 85
Piping materials 86
Processing and connecting piping materials 86
Refrigerant piping work 86
A check to make sure there is no scratches dust etc on the flare and union 87
A sheathed copper pipes and copper element pipes when using these pipes check to make sure that they are the stipulated thickness for flare nuts be sure to used the same nut that is used on the ac unit 87
B align the flared surface with the axial center of the union 87
Because the gas pressure of r410a is approximately 1 times as high as that of r22 copper pipes with the thickness shown in table 10 and with minimal impurities must be used care must also be taken during storage to ensure that pipes are not crushed deformed or scratched and that no dust moisture or other substance enters the pipe interior when storing sheathed copper pipes or plain copper pipes seal the openings by pinching or taping them securely 87
C use a torque wrench and tighten to the specified torque the tightening torque for r410a is the same as the conventional torque value for r22 be careful because if the torque is too weak it may lead to a gas leak if it is too strong it may split the flare nut or make it impossible to remove the flare nut 87
Makings and management 87
Procedure and precautions for flare connection 87
Storing and managing piping materials 87
Types of piping and their storage the following is a general classification of the refrigerant pipe materials used for acs 87
Inspecting gas leaks with a vacuum pump for new installations using new refrigerant piping 88
Installation transferring servicing 88
Ac units replacement using existing refrigerant piping 89
Recharging refrigerant during servicing 89
Refrigerant compatibility using r410a refrigerant in r22 acs and vice versa 89
Transferring using new refrigerant piping 89
Brazing 91
Servicing tips 91
For standard installation 92
Troubleshooting guide 92
During twin operation 94
During group control operation 95
Test operation and self diagnosis 96
Test operation from the outdoor unit 96
Test run forced cooling mode and heating mode 96
Test operation using the wired remote control 97
Self diagnosis function 98
Test operation using the receiver auto button if using wireless remote controller 99
Check the resistance of each thermistor of both indoor and outdoor units by refering the resistance table as follows 100
During outdoor unit emergency operation or test operation the led on the p c b will flash 100
Emergency operation 100
If abnormality detected in the indoor or outdoor unit turn off the main power supply and find the cause 100
If there is an abnormality in the temperature thermistor disconnect or shorted indoor unit cannot be operated 100
Press the auto button continuously within 5 seconds 100
Thermistor resistance table 100
When using the wireless remote control and losing the remote controller emergency operation can be operated by pressing auto button in the receiver 100
If the problem disappears and operation returns to normal the check display on the remote control unit will switch off but the self diagnosis led will remain illuminated until operation is resumed 101
Illuminated 101
Refer to the table below to remove the cause of the problem and then re start the air conditioner system 101
Self diagnosis error code table 101
The display screen on the wired remote control unit and the self diagnosis leds green on the outdoor unit printed circuit board in the outdoor unit can be used to indicate where the location of a problem is 101
Cooling capacity performance data 103
Technical data 103
Ipt cooling power consumption 104
Shc sensible heat capacity 104
Tc cooling capacity 104
Hc heating capacity 105
Heating capacity performance data 105
Ipt heating power consumption 105
Capacity and power consumption 106
Cooling performance 106
Ipt cooling power consumption 106
Tc cooling capacity 106
Ipt cooling power consumption 107
Tc cooling capacity 107
Ipt cooling power consumption 108
Tc cooling capacity 108
Ipt cooling power consumption 109
Tc cooling capacity 109
Ipt cooling power consumption 110
Tc cooling capacity 110
Ipt cooling power consumption 111
Tc cooling capacity 111
Hc heating capacity 112
Heating performance 112
Ipt heating power consumption 112
Hc heating capacity 113
Ipt heating power consumption 113
Hc heating capacity 114
Ipt heating power consumption 114
Hc heating capacity 115
Ipt heating power consumption 115
Hc heating capacity 116
Ipt heating power consumption 116
Hc heating capacity 117
Ipt heating power consumption 117
Reaching distance 118
Sound measuring point 126
Cs f24dte5 220 230 240v 127
Cs f28dte5 127
Fan performance 127
Cs f34dte5 128
Cs f43dte5 128
Cs f50dte5 129
Discharge and suction pressure 130
Operating characteristics 131
Cs f24dte5 cs f28dte5 135
Replacement part list indoor unit 135
All parts are supplied from phaam malaysia vendor code 061 136
Cs f34dte5 cs f43dte5 cs f50dte5 140
Replacement part list indoor unit 140
All parts are supplied from phaam malaysia vendor code 061 141
All parts are supplied from phaam malaysia vendor code 061 144
Cu b24dbe5 cu b28dbe5 cu b28dbe8 144
Replacement part list outdoor unit 144
All parts are supplied from phaam malaysia vendor code 061 148
Cu b34dbe5 cu b34dbe8 cu b43dbe8 cu b50dbe8 148
Replacement part list outdoor unit 148
Indoor unit printed indicator 150
Outdoor unit main 150
