Citizen CL-S321 [10/40] Printer setup
![Citizen CL-S321 [10/40] Printer setup](/views2/1843497/page10/bga.png)
6
2 Printer Setup

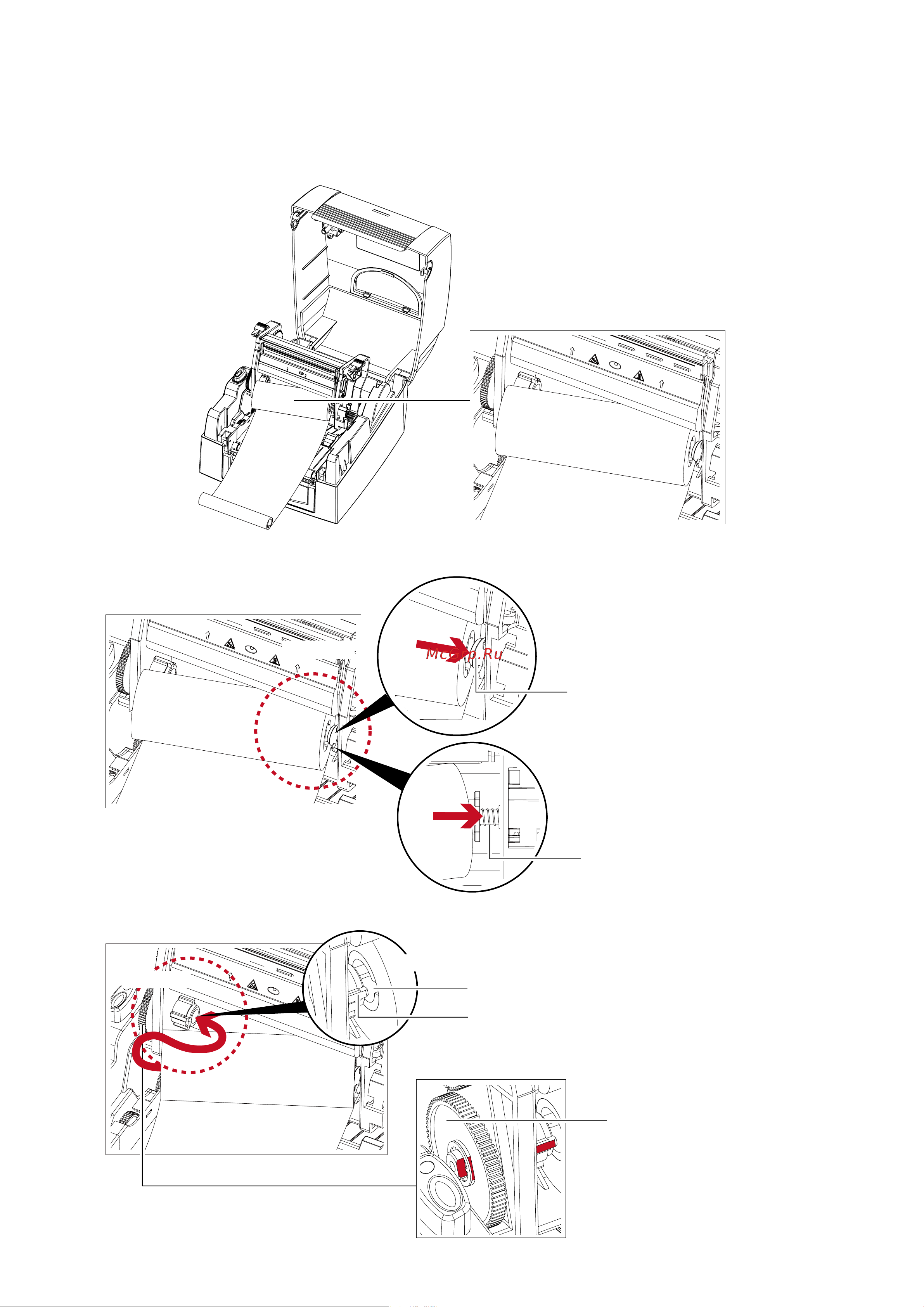

Load The Ribbon On The Printer
For Ribbon Supply Module
RIBBON SUPPLY MODULE
1. Place the right-hand side of ribbon first.
Right side
Align the ribbon core
to the holder
Push the ribbon to tighten
the spring of the holder
HOLDER
SPRING OF HOLDER
2. Then place the left-hand side of the ribbon.
Left side
Align the notch of the ribbon core to the spoke
Rotate the gear for alignment
if necessary
NOTCH OF RIBBON CORE
GEAR
SPOKE
