Citizen CL-S321 [16/40] Loading the label supply hub
![Citizen CL-S321 [16/40] Loading the label supply hub](/views2/1843497/page16/bg10.png)
12
2 Printer Setup

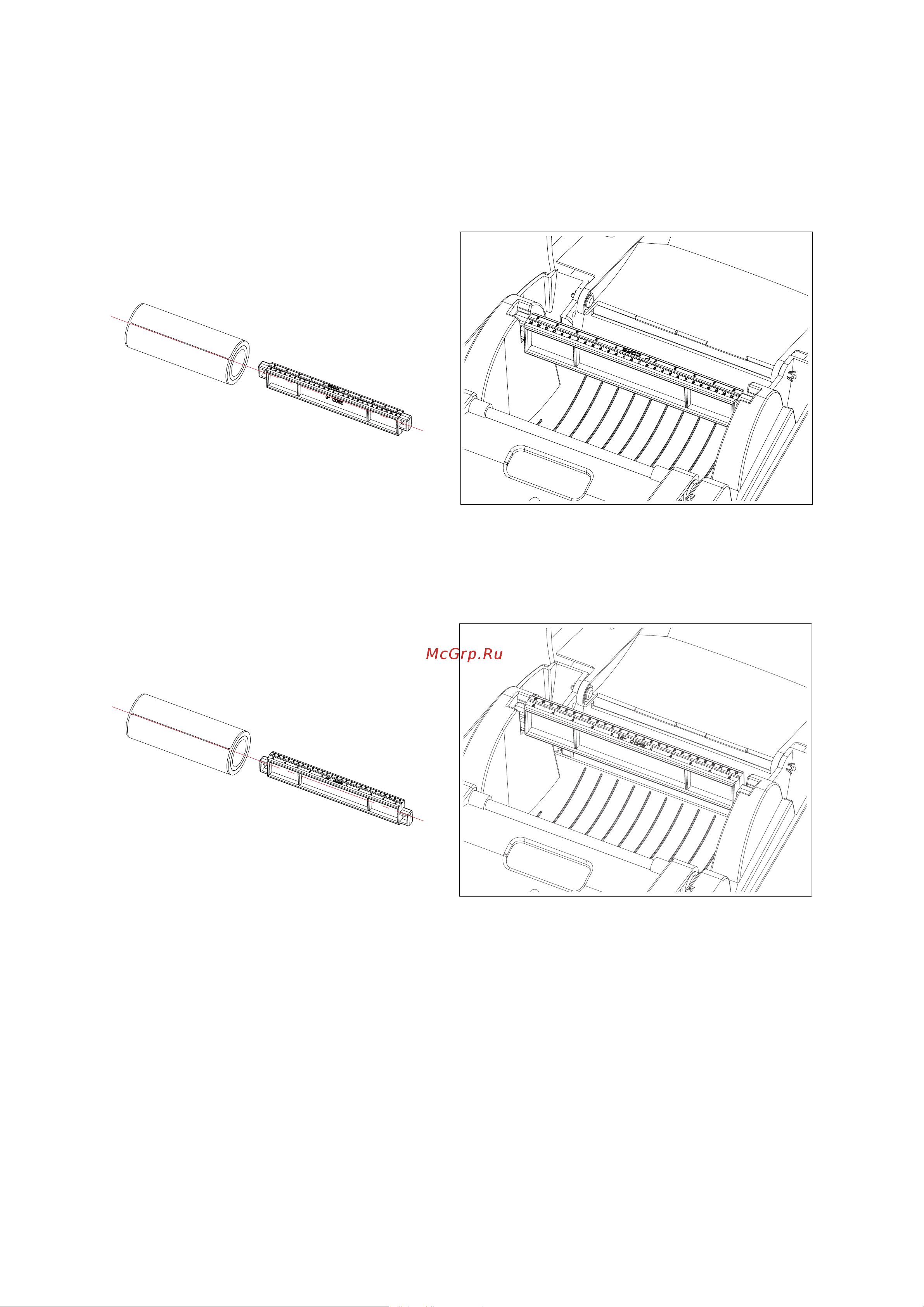

2.5 Loading The Label Supply Hub
1” Cores
Loading the label supply hub for 1” cores.
1.5” Cores
Loading the label supply hub for 1.5” cores.
