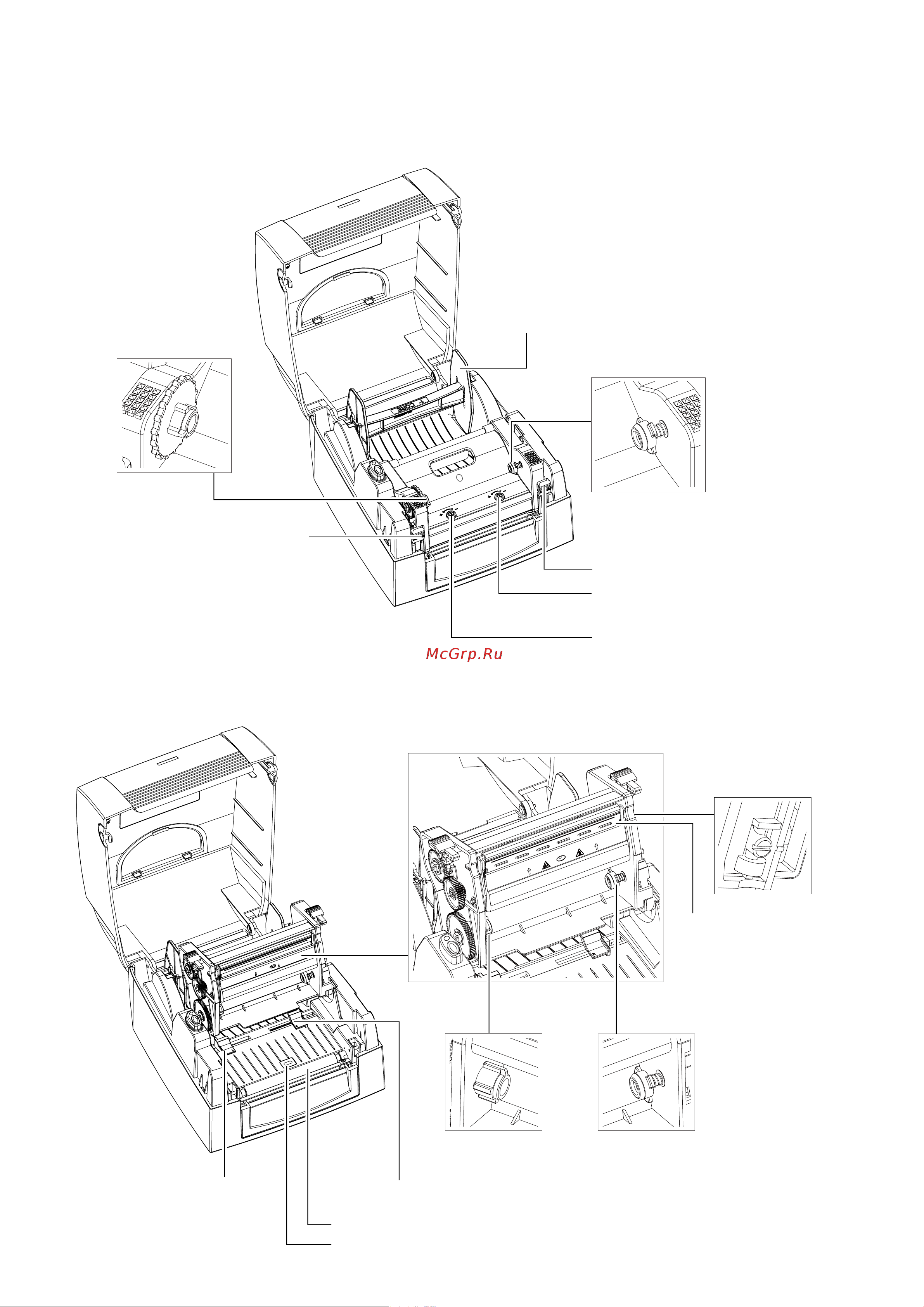

1 Barcode Printer
Open The Printer Cover
LABEL SUPPLY MODULE
- LABEL SUPPLY HUB
- LABEL GUIDE PLATES(Set of 2)
HOLDER OF RIBBON REWIND CORE
RELEASE CATCH(Right)
SCREW(Right)
Screw for adjusting the print head pressure
SCREW(Left)
Screw for adjusting the print head pressure
RIBBON REWIND WHEEL
RELEASE CATCH(Left)
Open The Printing Mechanism
PRINTING MECHANISM
ADJUSTMENT SCREW
Screw for adjusting
the printer line
PRINT HEAD
HOLDER OF
RIBBON SUPPLY CORE
RIBBON SUPPLY
WHEEL
LABEL GUIDE(Right)
PLATEN
LABEL SENSOR
LABEL GUIDE(Left)
