2 Printer Setup

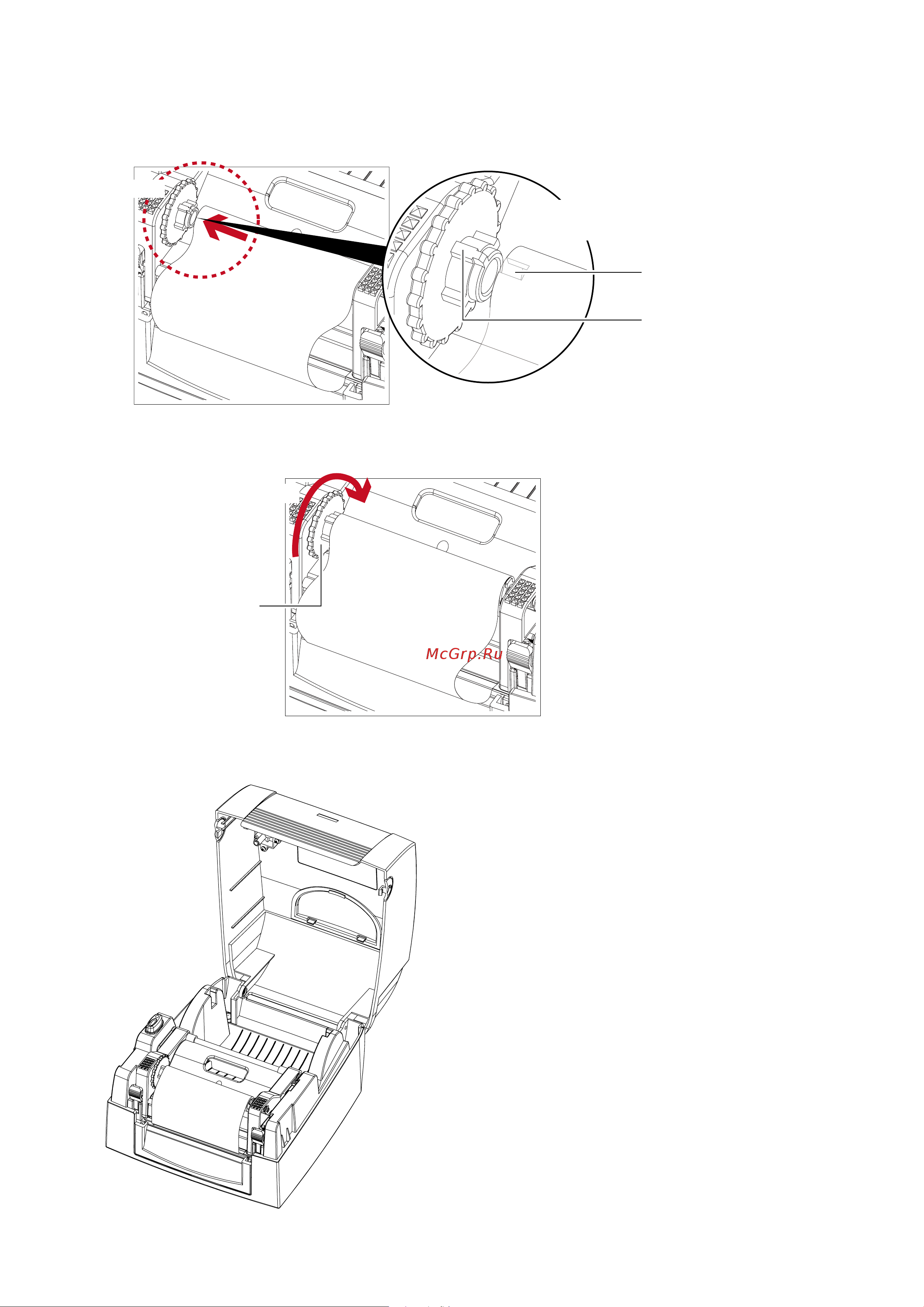

2. Then place the left-hand side of the empty ribbon core.
Left side
Left side
Align the notch of empty ribbon core
to the spoke
NOTCH OF RIBBON CORE
SPOKE
3. Turn the ribbon rewind wheel to tighten the ribbon until it has no wrinkles.
Wind to back
RIBBON REWIND WHEEL
4. Ribbon loading completed.
