4 NetSetting for Ethernet

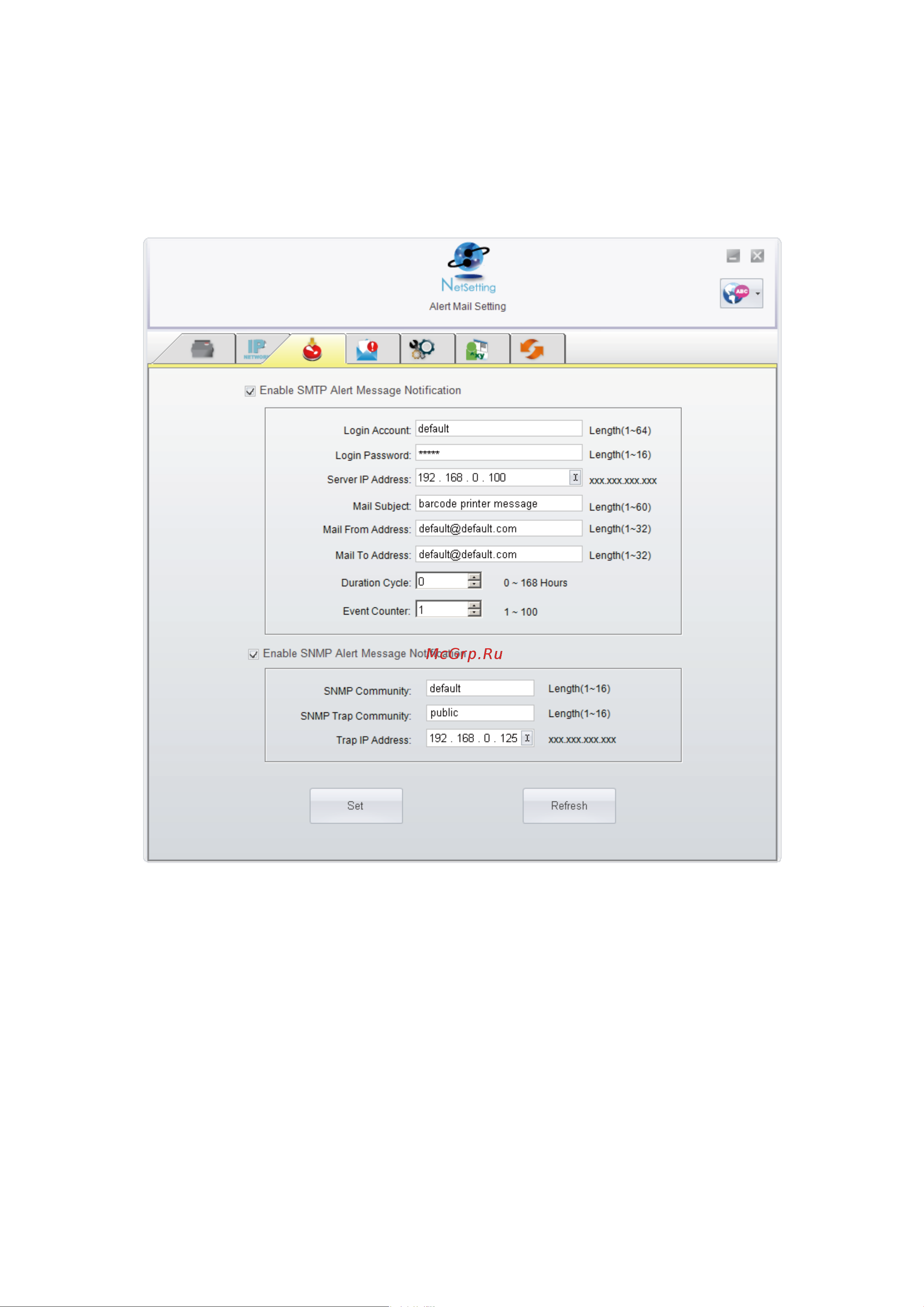

Alert Mail Setting
NetSetting will send the alert messages to designated mail account when the error happened on printer. The alert
messages are sent by SMTP (Simple Mail Transfer Protocol) or SNMP (Simple Network Management Protocol).
You can set or change the configurations of SMTP and SNMP on this “Alert Mail Setting” tab.
You can press “Set” button to apply the settings and “Refresh” button to refresh the setting values.
