2 Printer Setup

2.4 Loading The Label Roll

A New Label Roll Module Installation

LABEL STOCK LABEL SUPPLY HUB LABEL GUIDE PLATES(Set of 2)

1. Place the label stock on the label supply hub, attach the label guide plates to the label stock holder.

Place on the ribbon hub

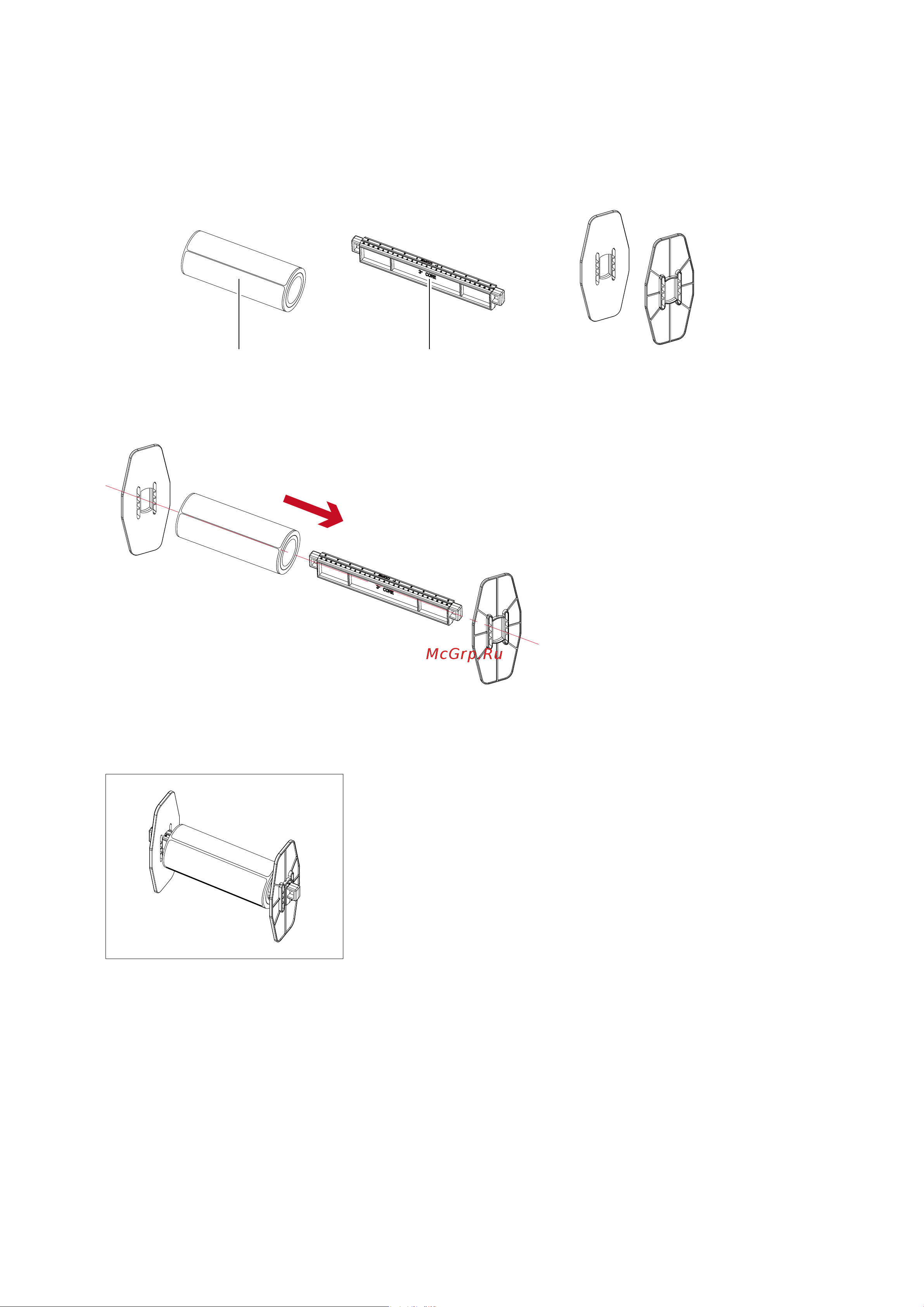

2. A label roll module is assembled as below.

A NEW LABEL ROLL MODULE
