Справочник по языку команд Brother ESC Страница: 11

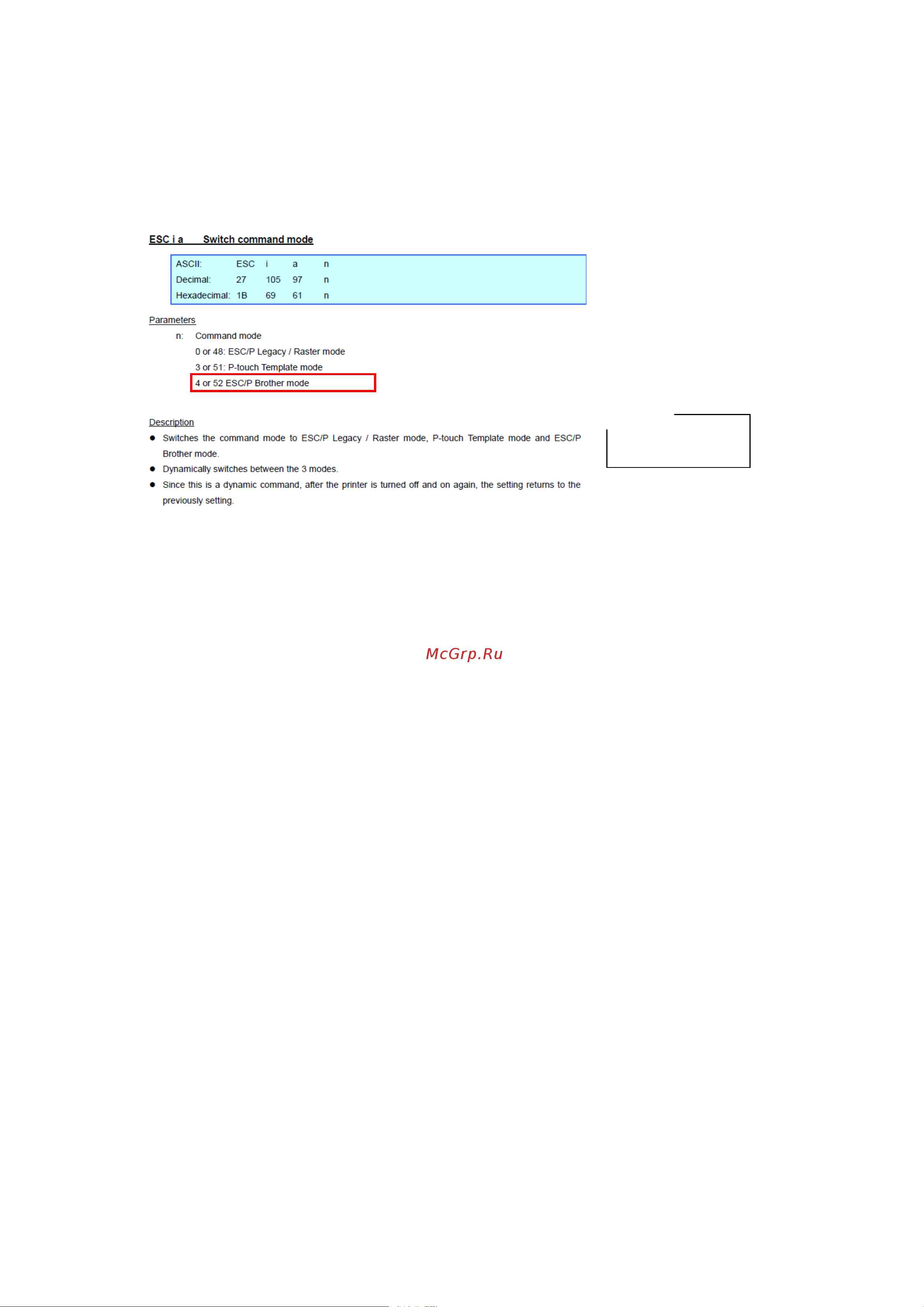

Brother PJ-723 [11/122] Esc i a 04h

ESC/P Brother Command Reference

- 5 -

2. Examples of Using ESC/P Brother Commands

Set Basic setup first.

Basic set up : Specify ESC/P Brother command mode

Entered Command

ESC i

a 04h
