ESC/P Brother Command Reference

- 10 -

2. Examples of Using ESC/P Brother Commands

All commands together will make the example document shown below.

ESC i a

04h

ESC @

ESC i L 01h

ESC $ CBh 00h

ESC ( V 02

h 00h CBh 00h

ESC k 0

ESC X 00h 64h 00h

At your side

Select ESC/P mode

Binary command

: 1B 69 61 04

Initialize ESC/P mode

Binary command: 1B 40

5 steps explained above

Print start command

Binary command: 0C

Text to be print

Binary command: 41 74 20 79 6F 75

72 20 73 69 64 65

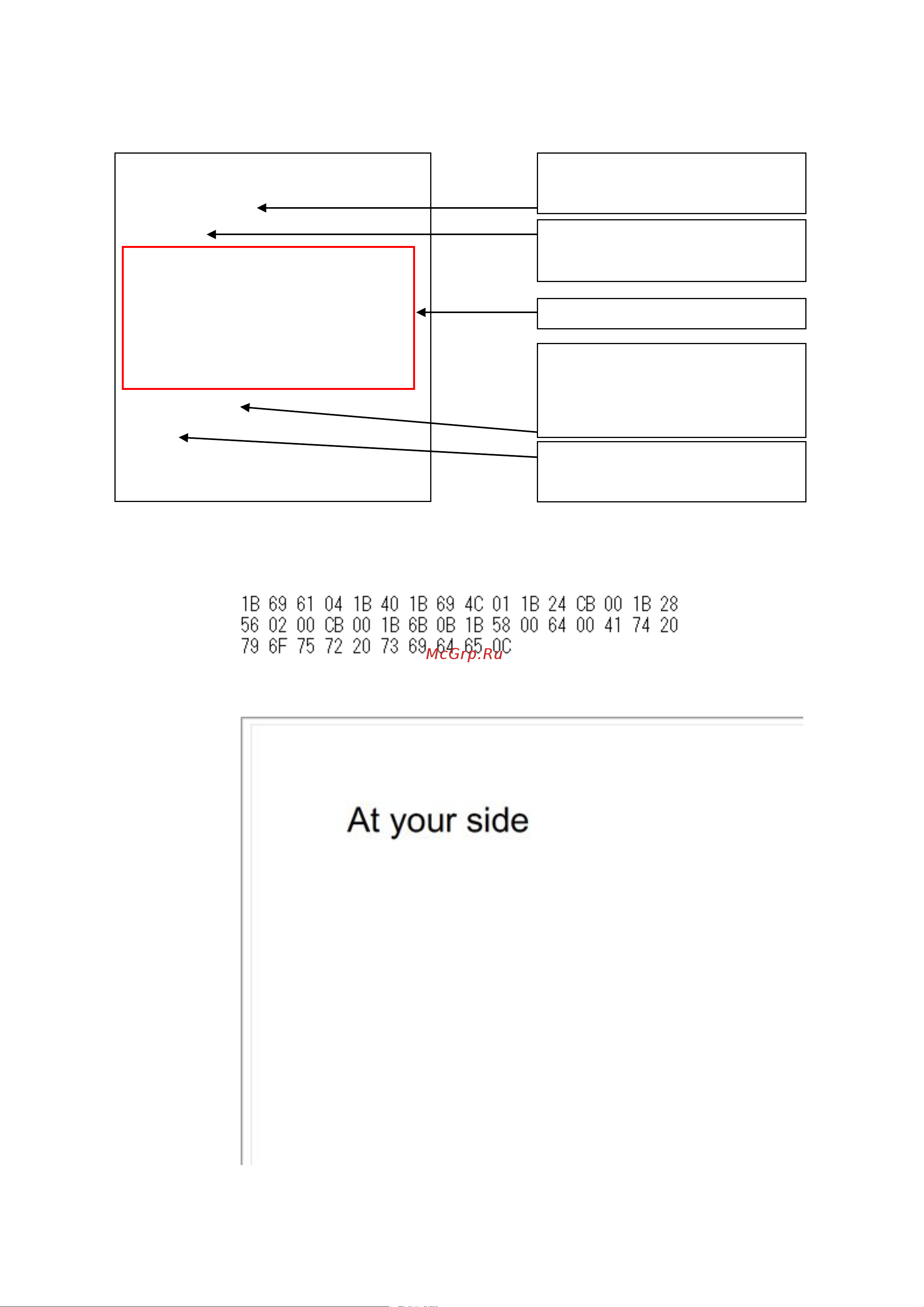

However, these commands should be converted to binary data before sent to the printer, as shown below.

Here is the captured converted binary data.

When the printer receives above binary commands, the document shown below is printed.
