ESC/P Brother Command Reference

- 7 -

2. Examples of Using ESC/P Brother Commands

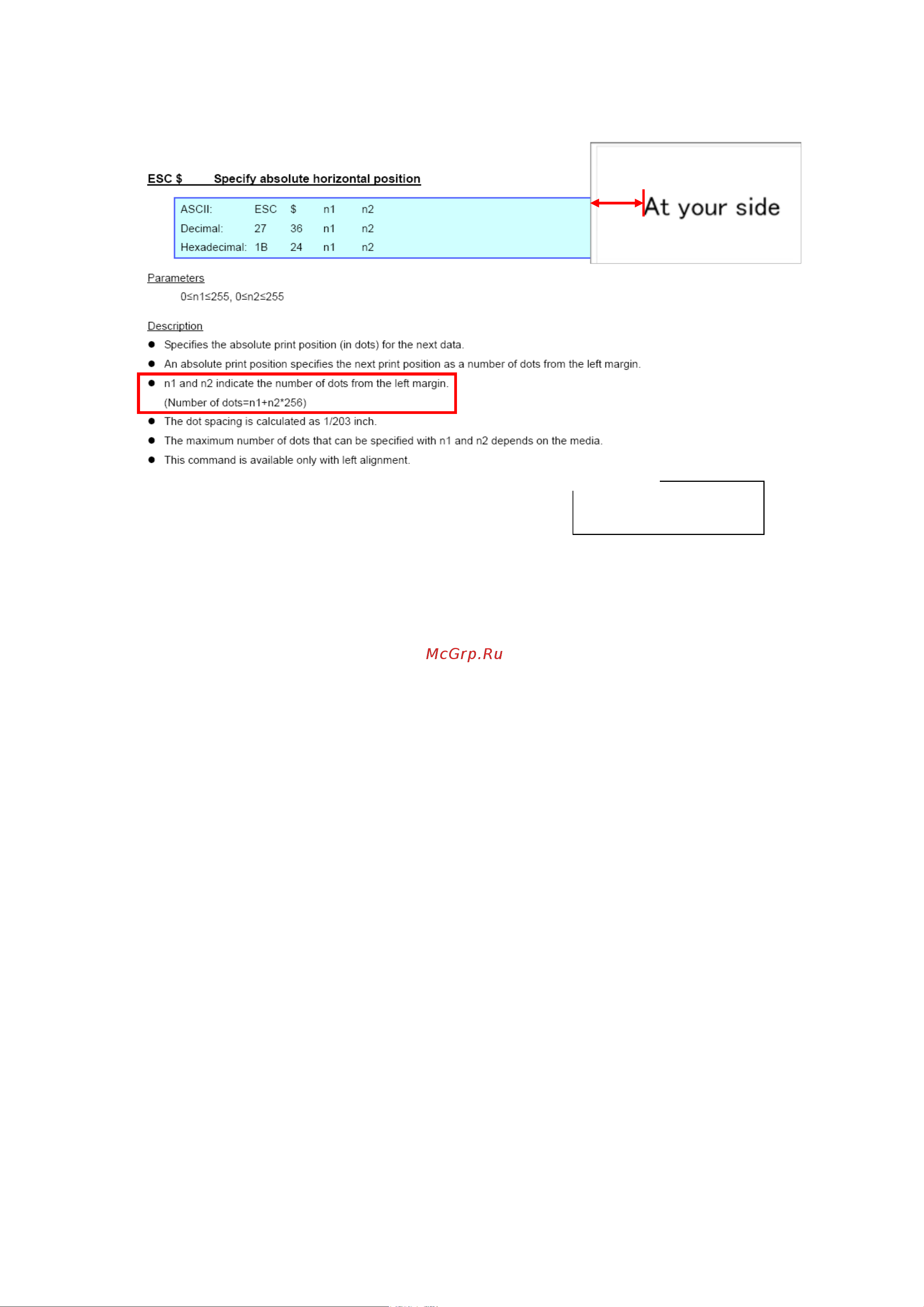

Step 2: Specify the horizontal position.

1 inch=203 dots

Horizontal position=n1+n2*256=203

ESC $ CBh

00h

Entered command

1 inch

= =

203

CBh

00h

= =

Example: A case 203dpi printer is used
