ESC/P Brother Command Reference
- 11 -
3. ESC/P Command Limitations
3. ESC/P Command Limitations
3.1 Print area
[Paper types and sizes]
・ Thermal cut paper: A4/Letter/Legal/A5/A5(Long Edge) sizes and any size
・ Thermal roll paper: 210 mm (width)
* Any size is within a range of 101.6- to 215.9-mm wide and 50.8- to 1000.0-mm long.
[Print area]
The printable area differs depending on the paper type; however, with any paper listed above, the top margin,
left margin and page width of the print area are the same as with A4 paper. If the page length (8-inch page
width) has been specified, the length specified with ESC/P will be applied as the page length.
Page
length
Paper
length
Page width
Paper
width

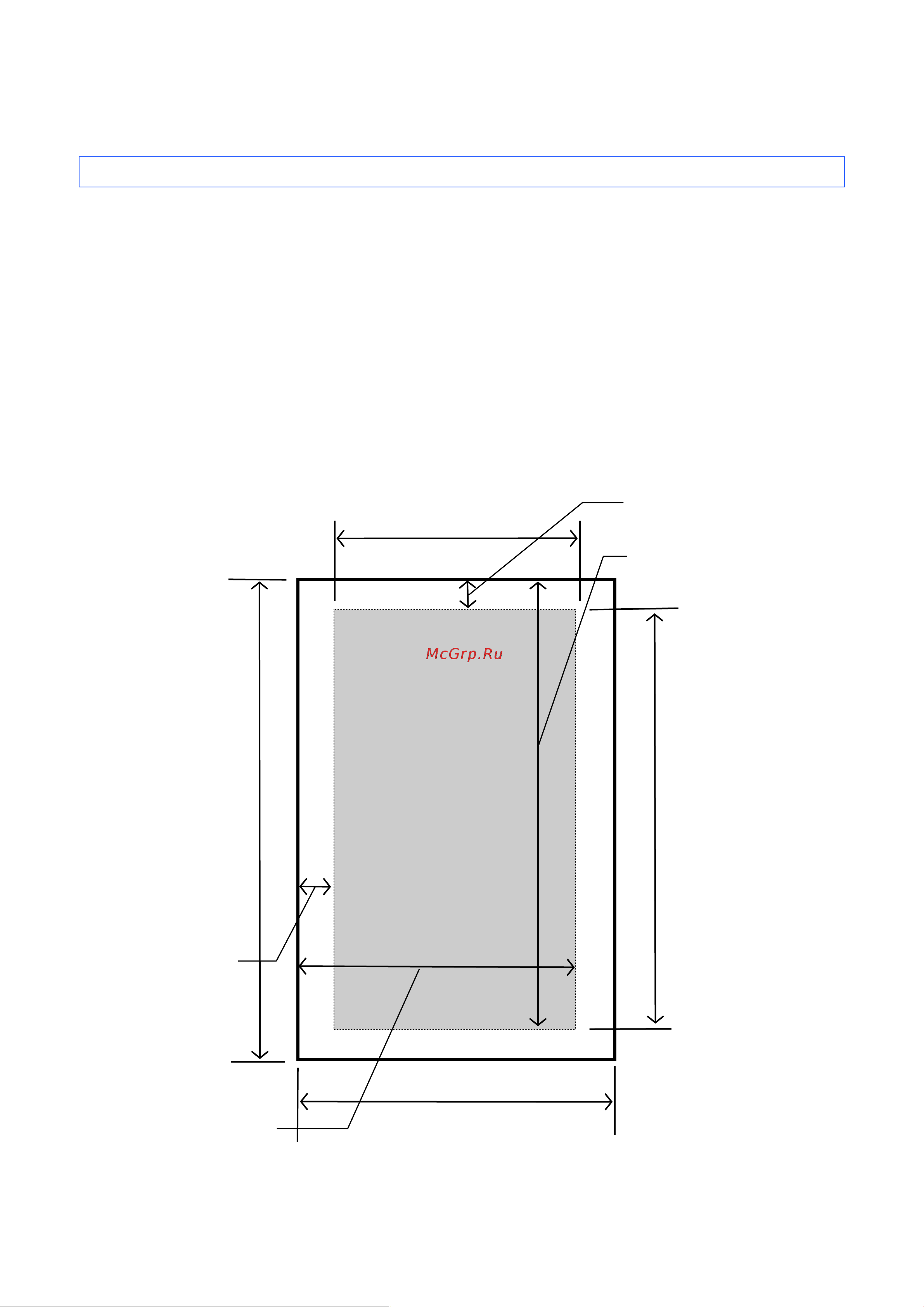

Print area
Top margin
Bottom margin
Left margin
Right
margin
