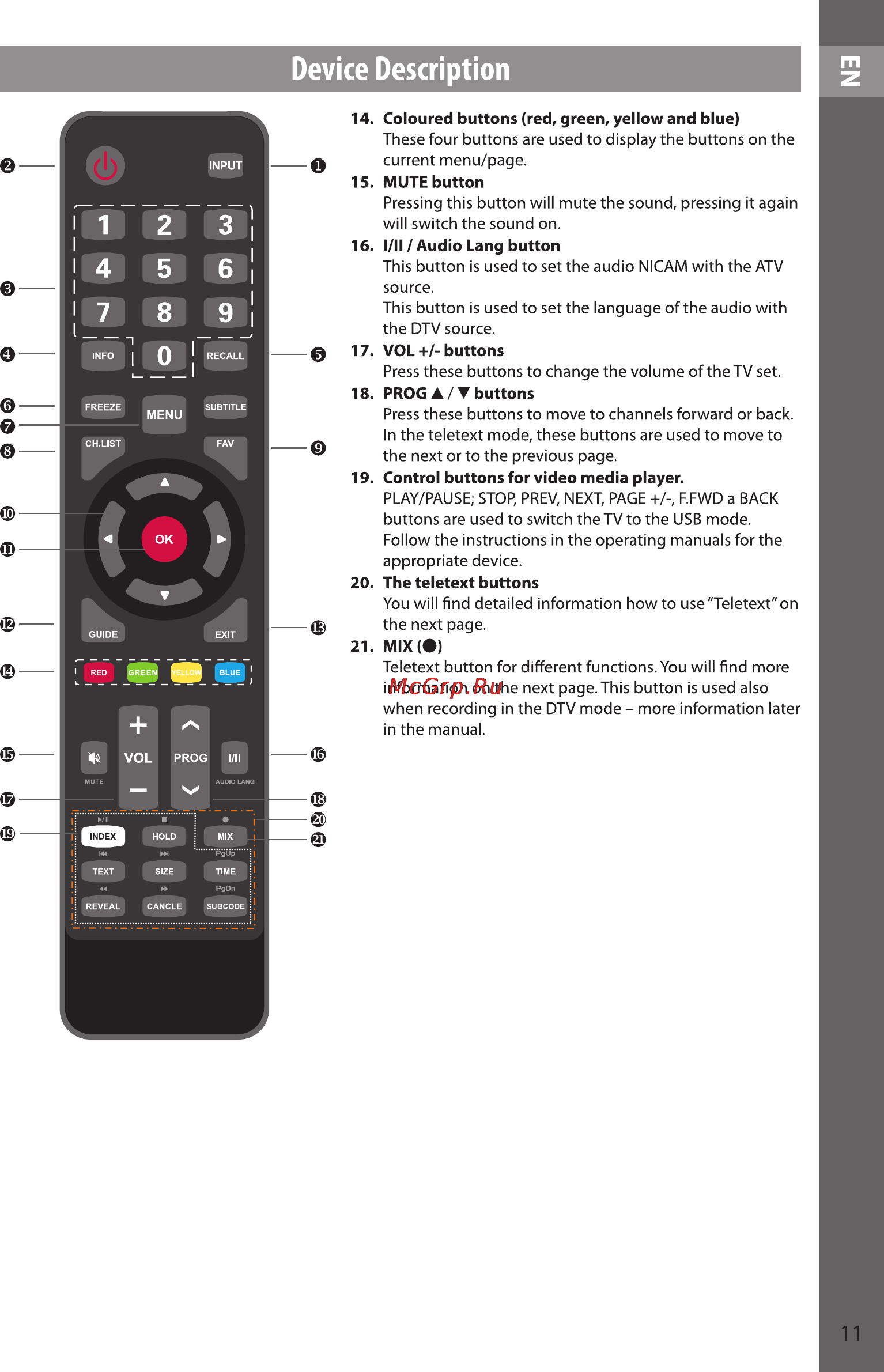

Device Description o 14 Coloured buttons red green yellow and blue These four buttons are used to display the buttons on the current menu page 15 MUTE button Pressing this button will mute the sound pressing it again will switch the sound on 16 I II Audio Lang button This button is used to set the audio NICAM with the ATV source This button is used to set the language of the audio with the DTV source 17 VOL buttons Press these buttons to change the volume of the TV set 18 PROG buttons Press these buttons to move to channels forward or back In the teletext mode these buttons are used to move to the next or to the previous page 19 Control buttons for video media player PLAY PAUSE STOP PREV NEXT PAGE F FWD a BACK buttons are used to switch the TV to the USB mode Follow the instructions in the operating manuals for the appropriate device 20 The teletext buttons You will find detailed information how to use Teletext on the next page 21 MIX Teletext button for different functions You will find more information on the next page This button is used also when recording in the DTV mode more information later in the manual 11
