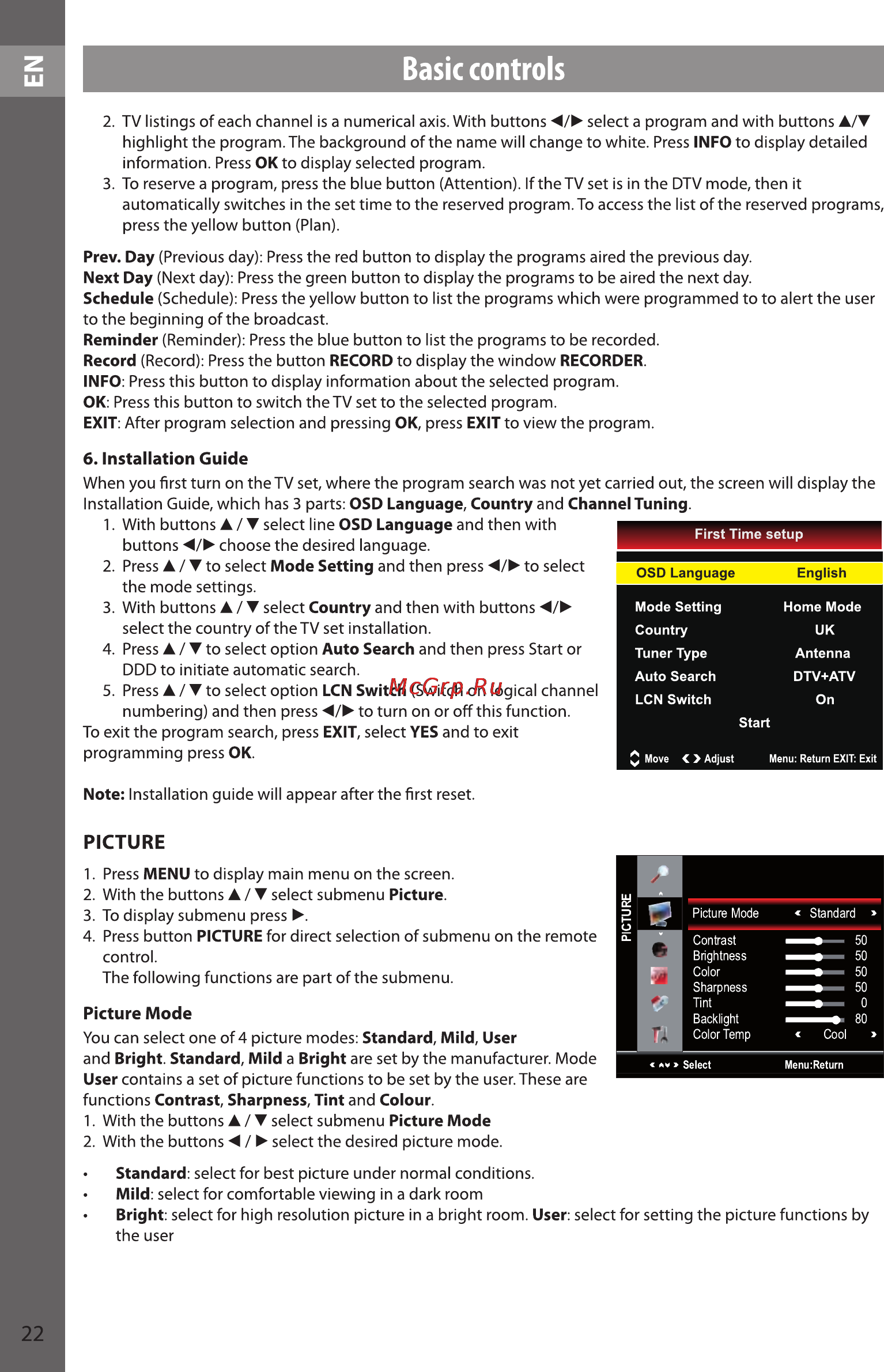

Basic controls 2 TV listings of each channel is a numerical axis With buttons select a program and with buttons A T highlight the program The background of the name will change to white Press INFO to display detailed information Press OK to display selected program 3 To reserve a program press the blue button Attention If the TV set is in the DTV mode then it automatically switches in the set time to the reserved program To access the list of the reserved programs press the yellow button Plan Prev Day Previous day Press the red button to display the programs aired the previous day Next Day Next day Press the green button to display the programs to be aired the next day Schedule Schedule Press the yellow button to list the programs which were programmed to to alert the user to the beginning of the broadcast Reminder Reminder Press the blue button to list the programs to be recorded Record Record Press the button RECORD to display the window RECORDER INFO Press this button to display information about the selected program OK Press this button to switch the TV set to the selected program EXIT After program selection and pressing OK press EXIT to view the program 6 Installation Guide When you first turn on the TV set where the program search was not yet carried out the screen will display the Installation Guide which has 3 parts OSD Language Country and Channel Tuning 1 With buttons A select line OSD Language and then with buttons choose the desired language 2 Press A to select Mode Setting and then press to select the mode settings 3 With buttons A select Country and then with buttons select the country of the TV set installation 4 Press A to select option Auto Search and then press Start or DDD to initiate automatic search 5 Press A to select option LCN Switch Switch on logical channel numbering and then press to turn on or off this function To exit the program search press EXIT select YES and to exit programming press OK Note Installation guide will appear after the first reset PICTURE 1 Press MENU to display main menu on the screen 2 With the buttons A select submenu Picture 3 To display submenu press 4 Press button PICTURE for direct selection of submenu on the remote control The following functions are part of the submenu Picture Mode You can select one of 4 picture modes Standard Mild User and Bright Standard Mild a Bright are set by the manufacturer Mode User contains a set of picture functions to be set by the user These are functions Contrast Sharpness Tint and Colour 1 With the buttons A select submenu Picture Mode 2 With the buttons select the desired picture mode Picture Mode Standard Contrast 50 50 Brightness Color 50 50 0 Sharpness Tint Backlight Color Temp Select 80 Cool Menu Return Standard select for best picture under normal conditions Mild select for comfortable viewing in a dark room Bright select for high resolution picture in a bright room User select for setting the picture functions by the user 22
