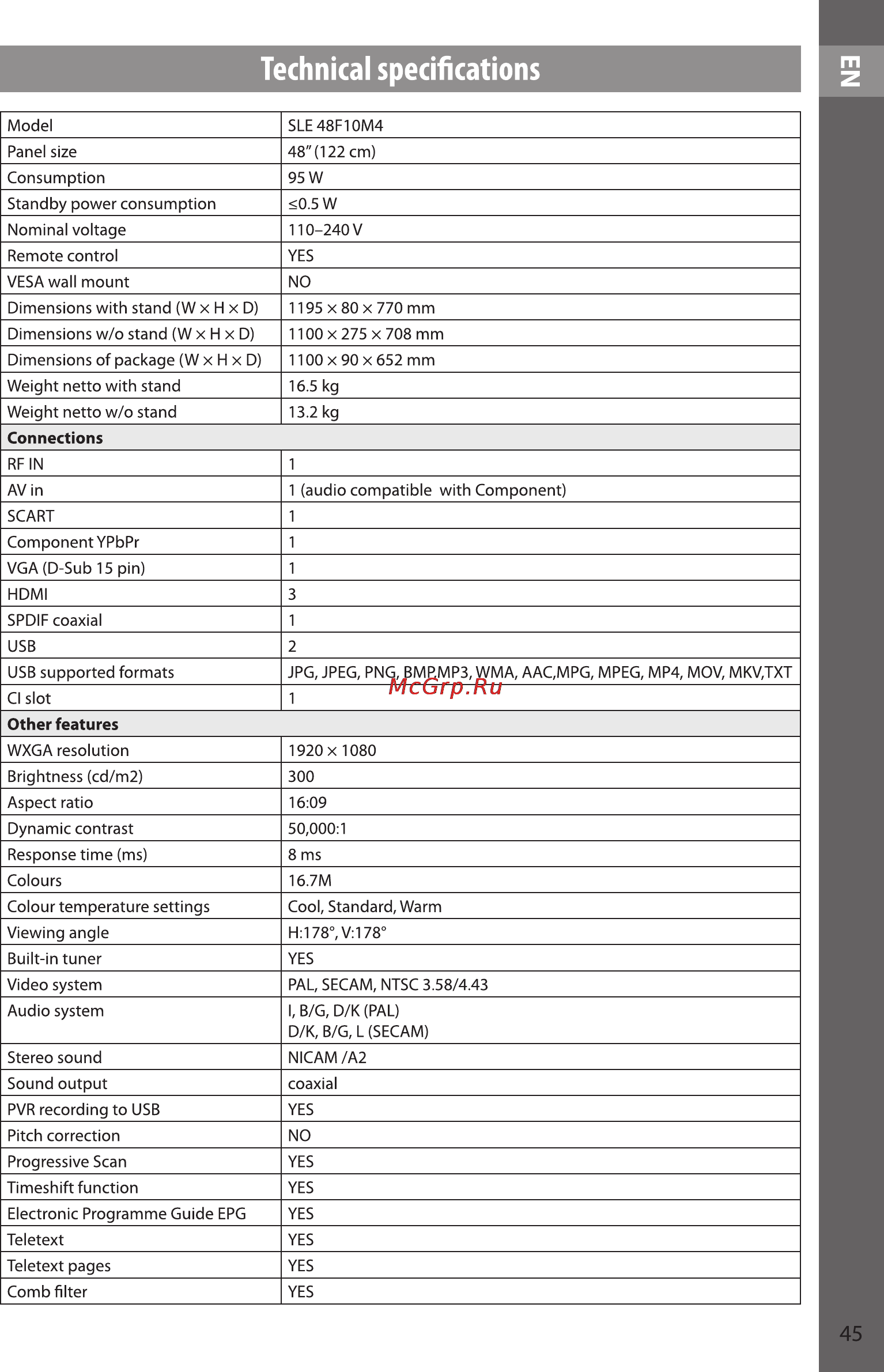

Technical specifications Model SLE48F10M4 Panel size 48 122 cm Consumption 95 W Standby power consumption 0 5 W Nominal voltage 110 240V Remote control YES VESA wall mount NO Dimensions with stand W x H x D 1195 x80x770 mm Dimensions w o stand W x H x D 1100 x275 x708 mm Dimensions of package W x H x D 1100 x 90 x 652 mm Weight netto with stand 16 5 kg Weight netto w o stand 13 2 kg m Z Connections RF IN 1 AV in 1 audio compatible with Component SCART 1 Component YPbPr 1 VGA D Sub15pin 1 HDMI 3 SPDIF coaxial 1 USB 2 USB supported formats JPG JPEG PNG BMP MP3 WMA AAC MPG MPEG MP4 MOV MKV TXT Cl slot 1 Other features WXGA resolution 1920x1080 Brightness cd m2 300 Aspect ratio 16 09 Dynamic contrast 50 000 1 Response time ms 8 ms Colours 16 7M Colour temperature settings Cool Standard Warm Viewing angle H 178 V 178 Built in tuner YES Video system PAL SECAM NTSC 3 58 4 43 Audio system I B G D К PAL D К B G L SECAM Stereo sound NICAM А2 Sound output coaxial PVR recording to USB YES Pitch correction NO Progressive Scan YES Timeshift function YES Electronic Programme Guide EPG YES Teletext YES Teletext pages YES Comb filter YES 45
