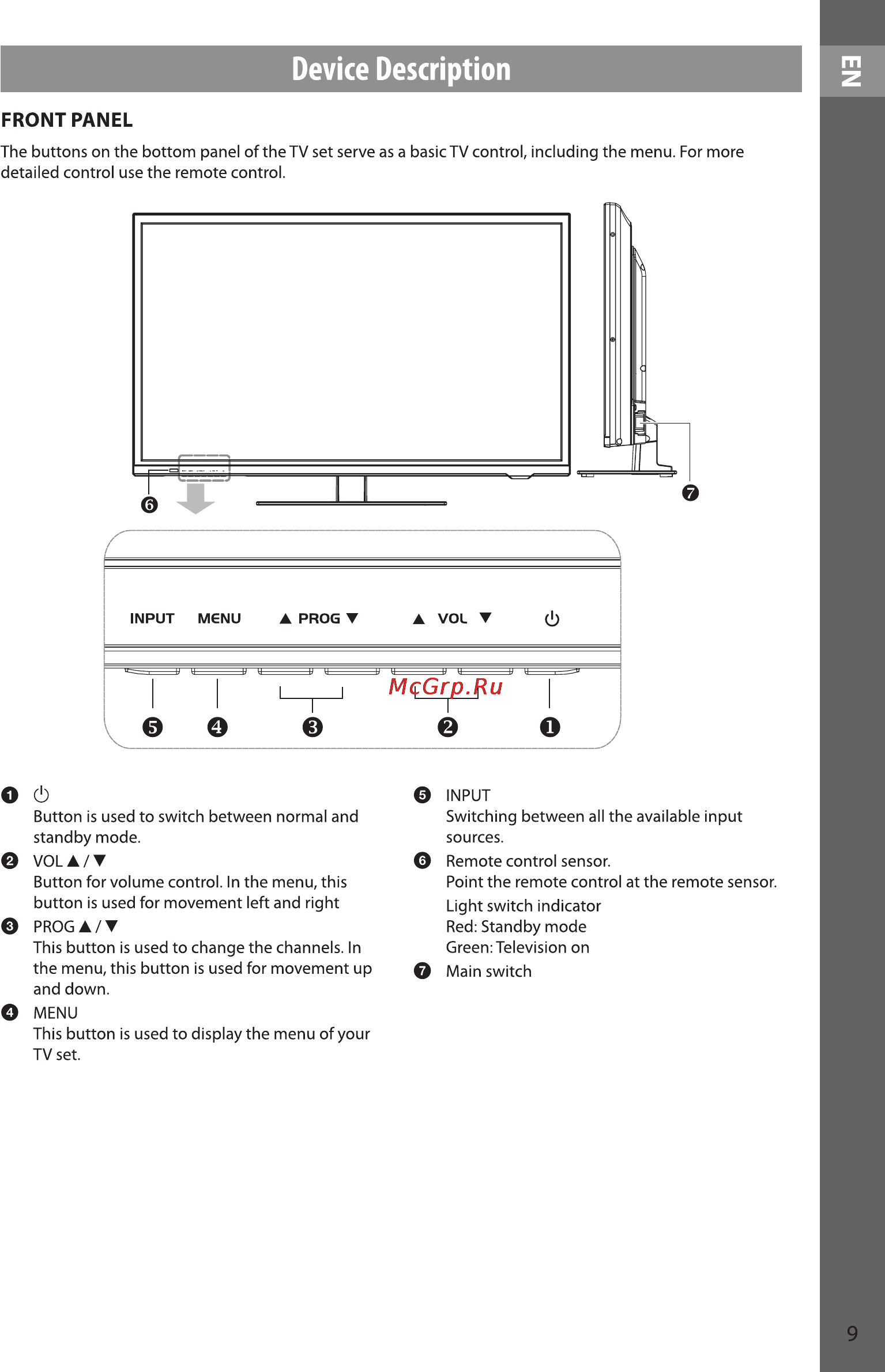

Device Description FRONT PANEL The buttons on the bottom panel of the TV set serve as a basic TV control including the menu For more detailed control use the remote control O0 Button is used to switch between normal and standby mode 0 VOLA T Button for volume control In the menu this button is used for movement left and right O PROGA T This button is used to change the channels In the menu this button is used for movement up and down O MENU This button is used to display the menu of your TV set 0 INPUT 0 0 Switching between all the available input sources Remote control sensor Point the remote control at the remote sensor Light switch indicator Red Standby mode Green Television on Main switch
