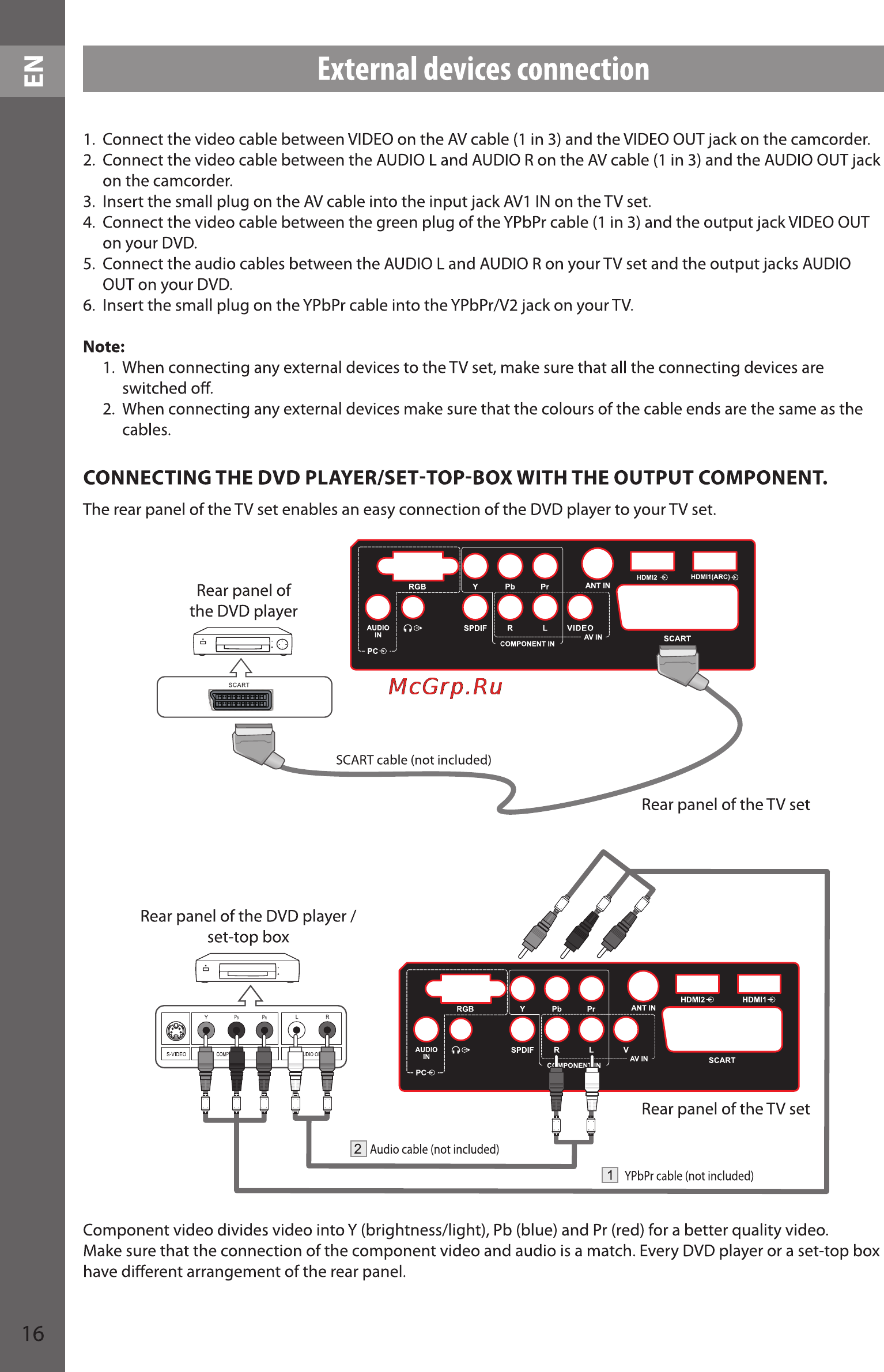

External devices connection 1 Connect the video cable between VIDEO on the AV cable 1 in 3 and the VIDEO OUT jack on the camcorder 2 Connect the video cable between the AUDIO L and AUDIO R on the AV cable 1 in 3 and the AUDIO OUT jack on the camcorder 3 Insert the small plug on the AV cable into the input jack AV1 IN on the TV set 4 Connect the video cable between the green plug of the YPbPr cable 1 in 3 and the output jack VIDEO OUT on your DVD 5 Connect the audio cables between the AUDIO Land AUDIO Ron your TV set and the output jacks AUDIO OUT on your DVD 6 Insert the small plug on the YPbPr cable into the YPbPr V2 jack on yourTV Note 1 When connecting any external devices to the TV set make sure that all the connecting devices are switched off 2 When connecting any external devices make sure that the colours of the cable ends are the same as the cables CONNECTING THE DVD PLAYER SET TOP BOX WITH THE OUTPUT COMPONENT The rear panel of the TV set enables an easy connection of the DVD player to yourTV set Component video divides video into Y brightness light Pb blue and Pr red for a better quality video Make sure that the connection of the component video and audio is a match Every DVD player or a set top box have different arrangement of the rear panel 16
