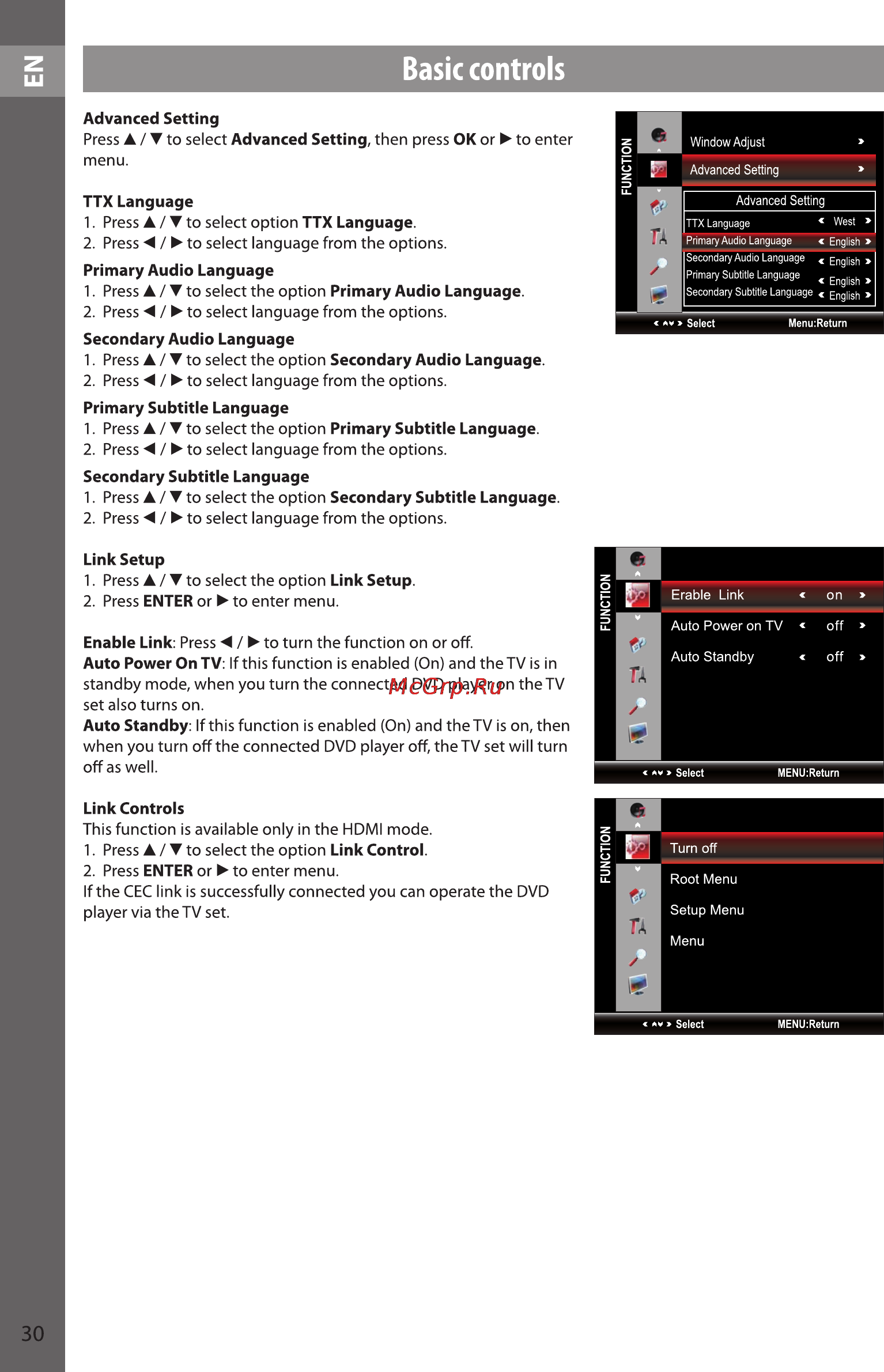

Basic controls Advanced Setting Press A to select Advanced Setting then press OK or to enter menu TTX Language 1 Press A to select option TTX Language 2 Press to select language from the options Primary Audio Language 1 Press A to select the option Primary Audio Language 2 Press to select language from the options Secondary Audio Language 1 Press A to select the option Secondary Audio Language 2 Press to select language from the options Primary Subtitle Language 1 Press A to select the option Primary Subtitle Language 2 Press to select language from the options Secondary Subtitle Language 1 Press A to select the option Secondary Subtitle Language 2 Press to select language from the options Link Setup 1 Press A to select the option Link Setup 2 Press ENTER or to enter menu Enable Link Press to turn the function on or off Auto Power On TV If this function is enabled On and the TV is in standby mode when you turn the connected DVD player on the TV set also turns on Auto Standby If this function is enabled On and theTV is on then when you turn off the connected DVD player off theTV set will turn off as well Link Controls This function is available only in the HDMI mode 1 Press A to select the option Link Control 2 Press ENTER or to enter menu If the CEC link is successfully connected you can operate the DVD player via the TV set 30
