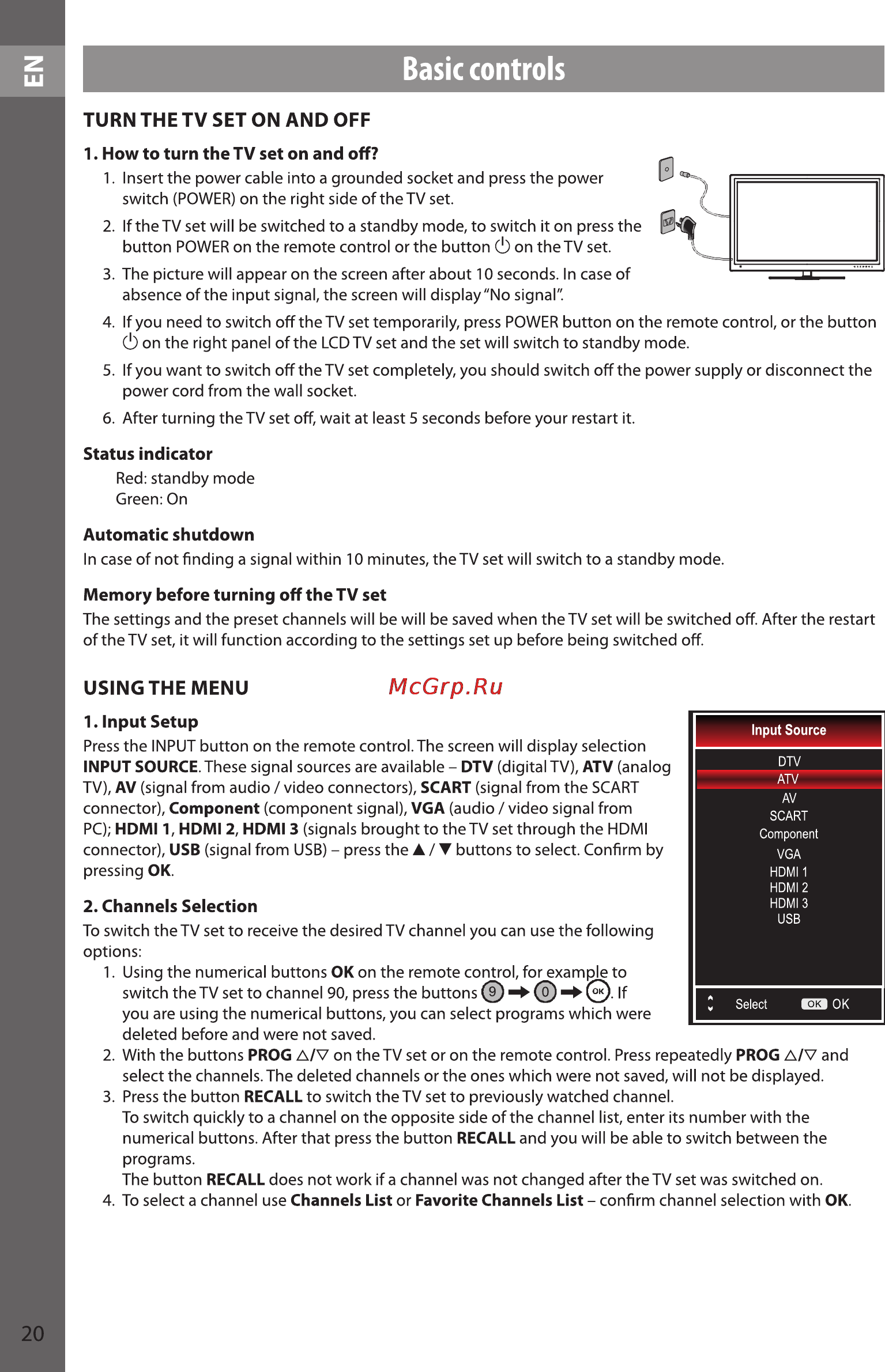

Basic controls TURN THE TV SET ON AND OFF 1 How to turn the TV set on and off 1 Insert the power cable into a grounded socket and press the power switch POWER on the right side of the TV set III 2 If the TV set will be switched to a standby mode to switch it on press the 10 button POWER on the remote control or the button on the TV set __ 3 The picture will appear on the screen after about 10 seconds In case of absence of the input signal the screen will display No signal 4 If you need to switch off the TV set temporarily press POWER button on the remote control or the button on the right panel of the LCD TV set and the set will switch to standby mode 5 If you want to switch off theTV set completely you should switch off the power supply or disconnect the power cord from the wall socket 6 After turning theTV set off wait at least 5 seconds before your restart it Status indicator Red standby mode Green On Automatic shutdown In case of not finding a signal within 10 minutes theTV set will switch to a standby mode Memory before turning off the TV set The settings and the preset channels will be will be saved when theTV set will be switched off After the restart of theTV set it will function according to the settings set up before being switched off USING THE MENU 1 Input Setup Press the INPUT button on the remote control The screen will display selection INPUT SOURCE These signal sources are available DTV digital TV ATV analog TV AV signal from audio video connectors SCART signal from the SCART connector Component component signal VGA audio I video signal from PC HDM11 HDMI 2 HDMI 3 signals brought to the TV set through the HDMI connector USB signal from USB press the buttons to select Confirm by pressing OK 2 Channels Selection Input Source DTV ATV AV SCART Component VGA HDM11 HDMI 2 HDMI3 USB To switch theTV set to receive the desired TV channel you can use the following options 1 Using the numerical buttons OK on the remote control for example to switch the TV set to channel 90 press the buttons If V Select ВШ OK you are using the numerical buttons you can select programs which were deleted before and were not saved 2 With the buttons PROG A V on theTV set or on the remote control Press repeatedly PROG A V and select the channels The deleted channels or the ones which were not saved will not be displayed 3 Press the button RECALL to switch theTV set to previously watched channel To switch quickly to a channel on the opposite side of the channel list enter its number with the numerical buttons After that press the button RECALL and you will be able to switch between the programs The button RECALL does not work if a channel was not changed after the TV set was switched on 4 To select a channel use Channels List or Favorite Channels List confirm channel selection with OK 20
