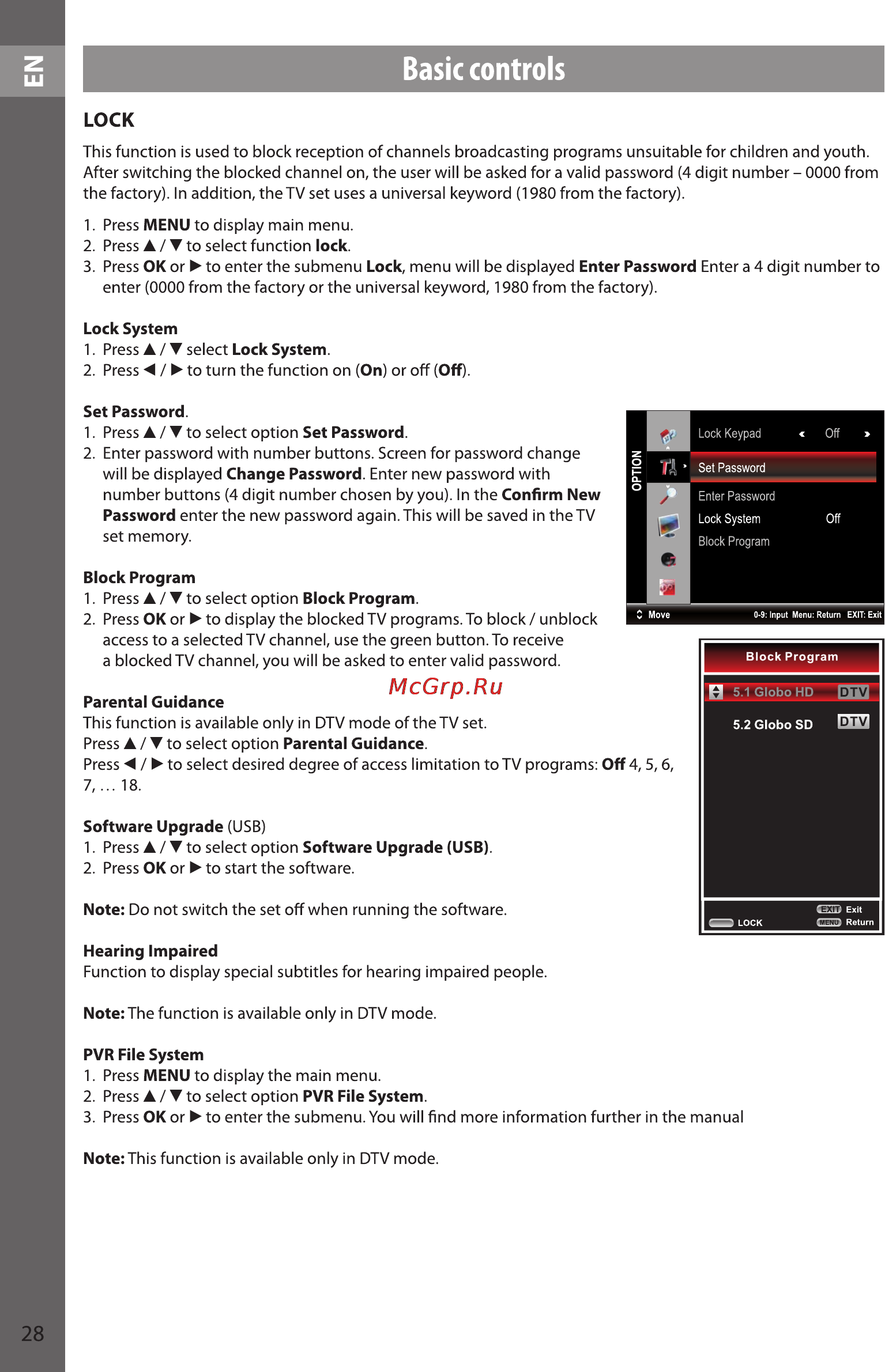

Basic controls LOCK This function is used to block reception of channels broadcasting programs unsuitable for children and youth After switching the blocked channel on the user will be asked for a valid password 4 digit number 0000 from the factory In addition the TV set uses a universal keyword 1980 from the factory 1 Press MENU to display main menu 2 Press A to select function lock 3 Press OK or to enter the submenu Lock menu will be displayed Enter Password Enter a 4 digit number to enter 0000 from the factory or the universal keyword 1980 from the factory Lock System 1 Press A select Lock System 2 Press to turn the function on On or off Off Set Password 1 Press A to select option Set Password 2 Enter password with number buttons Screen for password change will be displayed Change Password Enter new password with number buttons 4 digit number chosen by you In the Confirm New Password enter the new password again This will be saved in the TV set memory Block Program 1 Press A to select option Block Program 2 Press OK or to display the blocked TV programs To block I unblock access to a selected TV channel use the green button To receive a blocked TV channel you will be asked to enter valid password Parental Guidance This function is available only in DTV mode of the TV set Press A to select option Parental Guidance Press to select desired degree of access limitation to TV programs Off 4 5 6 7 18 Block Program H 5 1 Globo HD FWi 5 2 Globo SD ЕШ Software Upgrade USB 1 Press À to select option Software Upgrade USB 2 Press OK or to start the software Note Do not switch the set off when running the software LOCK Hearing Impaired Function to display special subtitles for hearing impaired people Note The function is available only in DTV mode PVR File System 1 Press MENU to display the main menu 2 Press A to select option PVR File System 3 Press OK or to enter the submenu You will find more information further in the manual Note This function is available only in DTV mode 28 iiij Return
