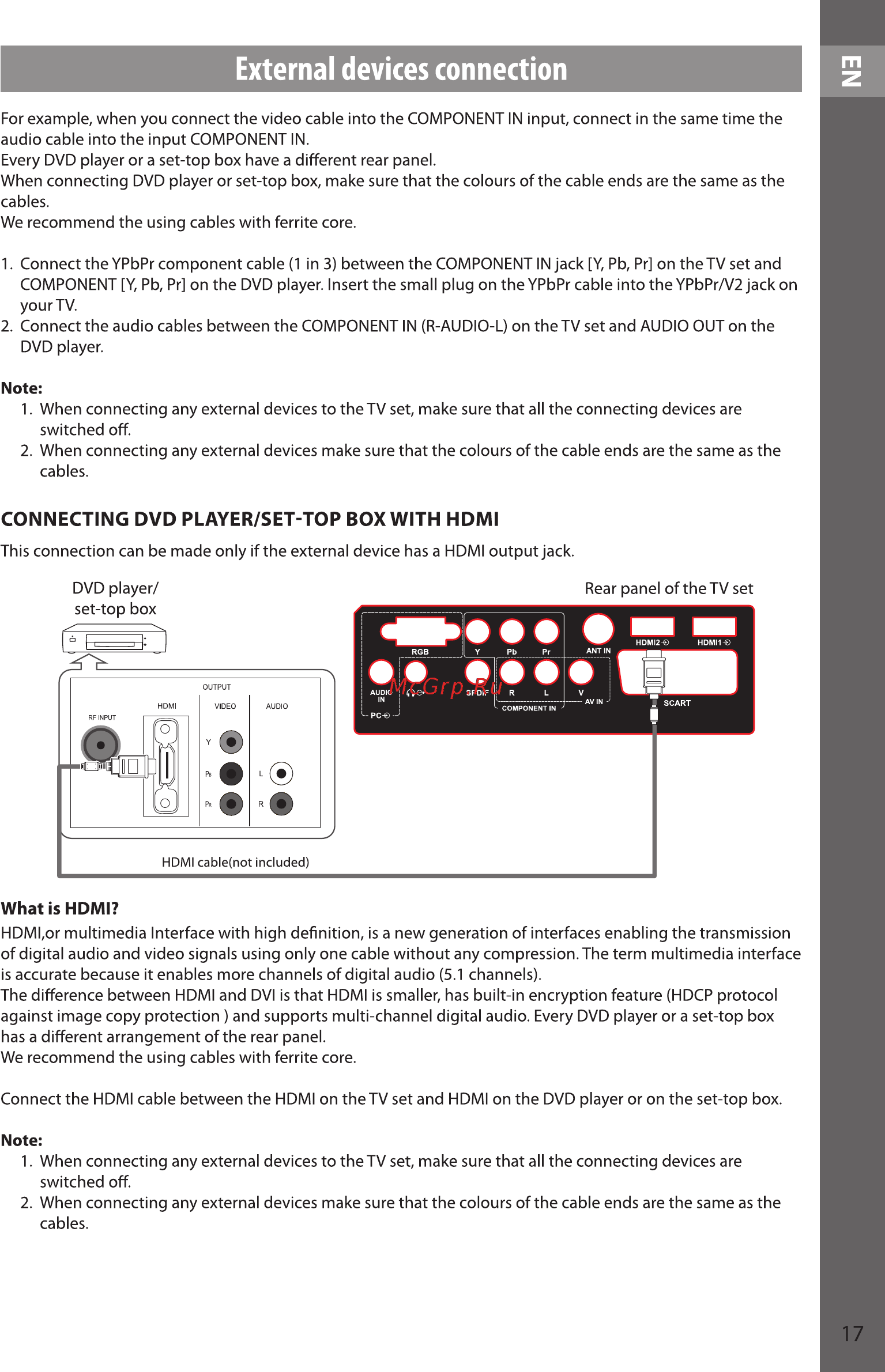

m Z External devices connection For example when you connect the video cable into the COMPONENT IN input connect in the same time the audio cable into the input COMPONENT IN Every DVD player or a set top box have a different rear panel When connecting DVD player or set top box make sure that the colours of the cable ends are the same as the cables We recommend the using cables with ferrite core 1 Connect the YPbPr component cable 1 in 3 between the COMPONENT IN jack Y Pb Pr on the TV set and COMPONENT Y Pb Pr on the DVD player Insert the small plug on the YPbPr cable into the YPbPr V2 jack on your TV 2 Connect the audio cables between the COMPONENT IN R AUDIO L on the TV set and AUDIO OUT on the DVD player Note 1 When connecting any external devices to the TV set make sure that all the connecting devices are switched off 2 When connecting any external devices make sure that the colours of the cable ends are the same as the cables CONNECTING DVD PLAYER SET TOP BOX WITH HDMI This connection can be made only if the external device has a HDMI output jack DVD player Rear panel of the TV set What is HDMI HDMI or multimedia Interface with high definition is a new generation of interfaces enabling the transmission of digital audio and video signals using only one cable without any compression The term multimedia interface is accurate because it enables more channels of digital audio 5 1 channels The difference between HDMI and DVI is that HDMI is smaller has built in encryption feature HDCP protocol against image copy protection and supports multi channel digital audio Every DVD player or a set top box has a different arrangement of the rear panel We recommend the using cables with ferrite core Connect the HDMI cable between the HDMI on the TV set and HDMI on the DVD player or on the set top box Note 1 When connecting any external devices to the TV set make sure that all the connecting devices are switched off 2 When connecting any external devices make sure that the colours of the cable ends are the same as the cables 17
