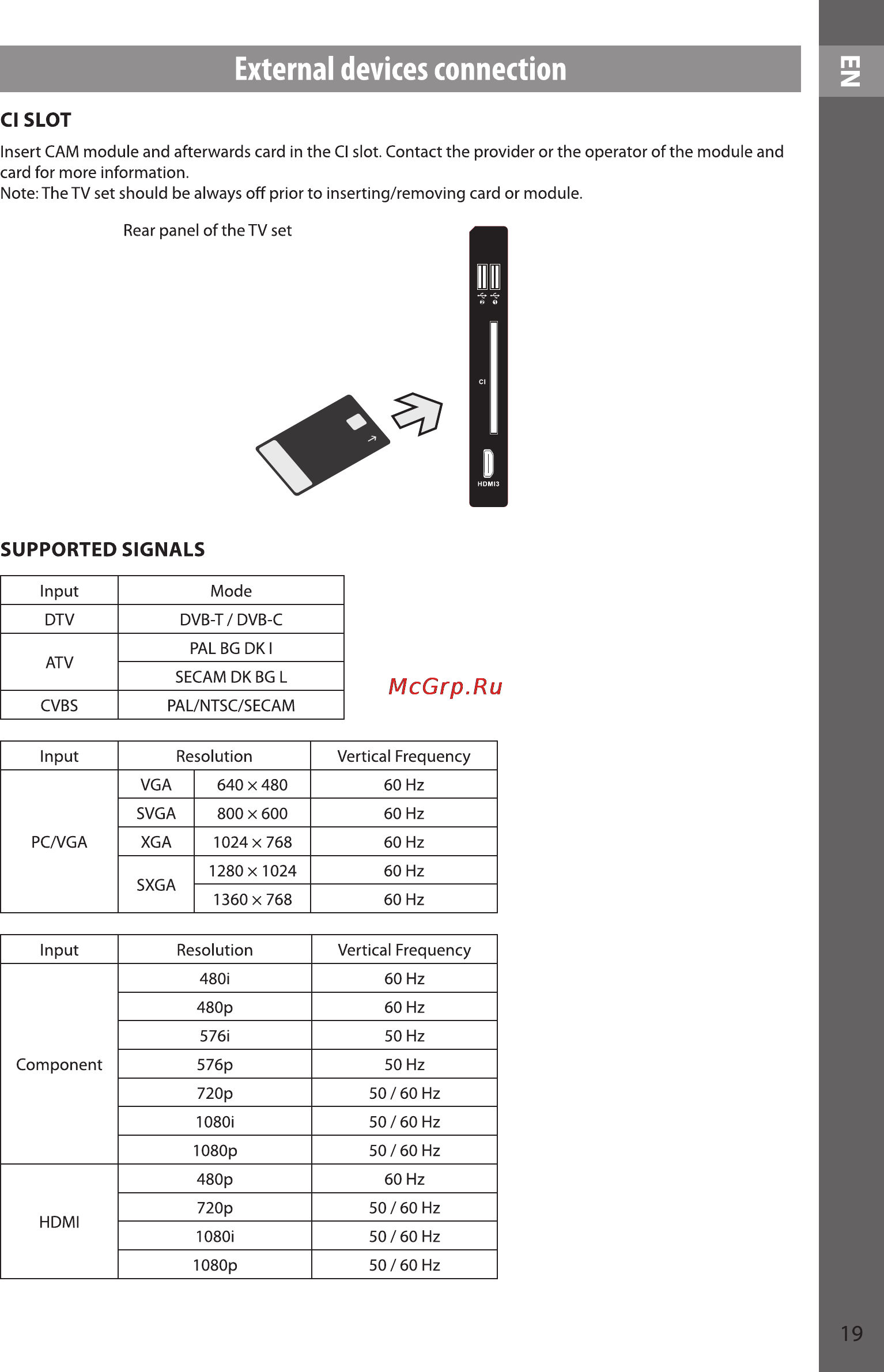

External devices connection Cl SLOT Insert CAM module and afterwards card in the Cl slot Contact the provider or the operator of the module and card for more information Note The TV set should be always off prior to inserting removing card or module Rear panel of the TV set SUPPORTED SIGNALS Input Mode DTV DVB T DVB C PAL BG DK I ATV CVBS SECAM DK BG L PAL NTSC SECAM Resolution Input PC VGA 640 x 480 60 Hz SVGA 800 X 600 60 Hz XGA 1024x768 60 Hz 1280X1024 60 Hz 1360x768 60 Hz SXGA Input Component HDMI Vertical Frequency VGA Resolution Vertical Frequency 480i 60 Hz 480p 60 Hz 576I 50 Hz 576p 50 Hz 720p 50 60 Hz 1080i 50 60 Hz 1080p 50160 Hz 480p 60 Hz 720p 50 60 Hz 1080I 50 60 Hz 1080p 50 60 Hz 19
