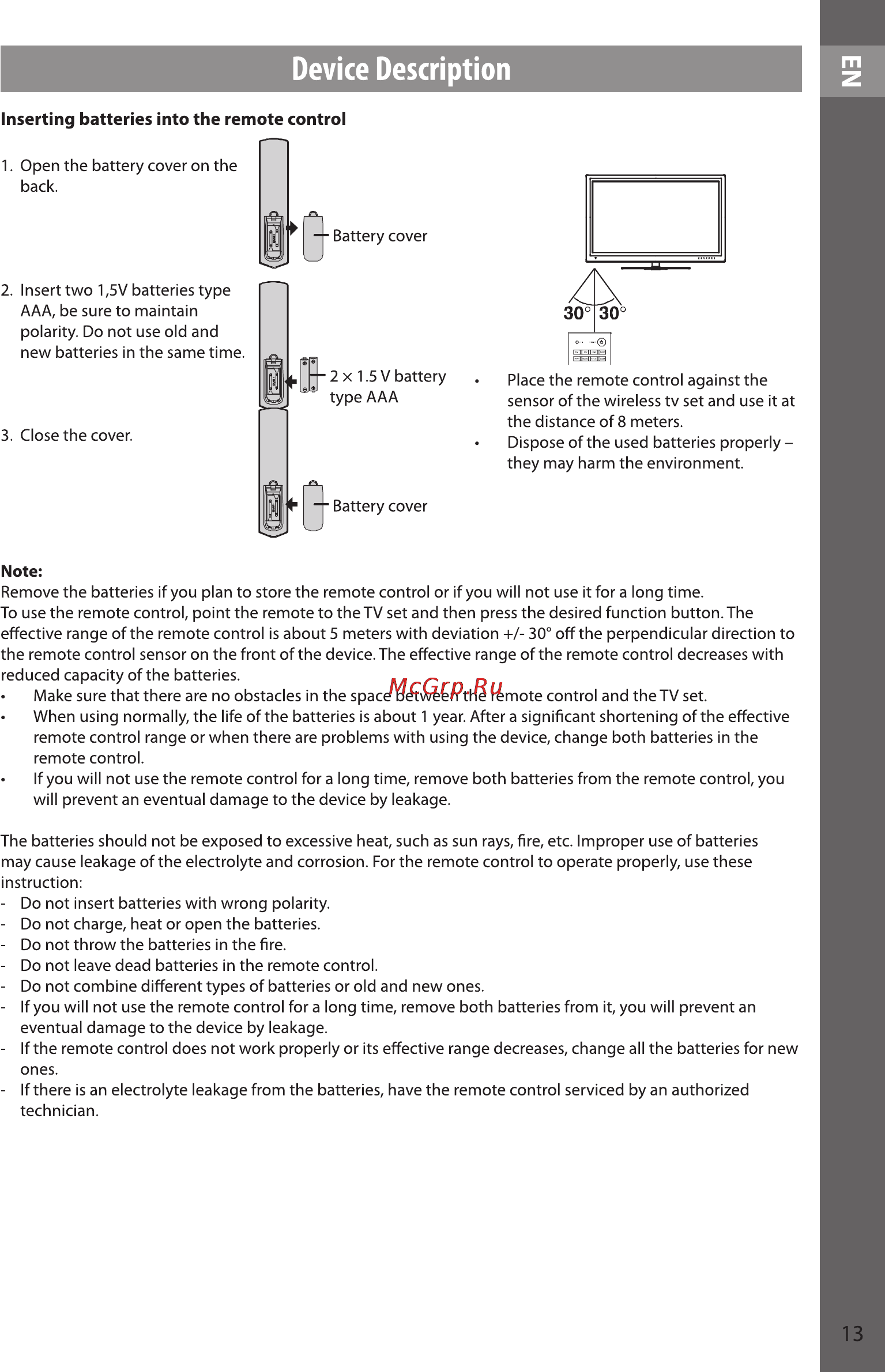

Device Description Inserting batteries into the remote control 1 Open the battery cover on the back 2 Insert two 1 5V batteries type AAA be sure to maintain polarity Do not use old and new batteries in the same time 3 Close the cover Place the remote control against the sensor of the wireless tv set and use it at the distance of 8 meters Dispose of the used batteries properly they may harm the environment Note Remove the batteries if you plan to store the remote control or if you will not use it for a long time To use the remote control point the remote to the TV set and then press the desired function button The effective range of the remote control is about 5 meters with deviation 30 off the perpendicular direction to the remote control sensor on the front of the device The effective range of the remote control decreases with reduced capacity of the batteries Make sure that there are no obstacles in the space between the remote control and the TV set When using normally the life of the batteries is about 1 year After a significant shortening of the effective remote control range or when there are problems with using the device change both batteries in the remote control If you will not use the remote control for a long time remove both batteries from the remote control you will prevent an eventual damage to the device by leakage The batteries should not be exposed to excessive heat such as sun rays fire etc Improper use of batteries may cause leakage of the electrolyte and corrosion For the remote control to operate properly use these instruction Do not insert batteries with wrong polarity Do not charge heat or open the batteries Do not throw the batteries in the fire Do not leave dead batteries in the remote control Do not combine different types of batteries or old and new ones If you will not use the remote control fora long time remove both batteries from it you will preventan eventual damage to the device by leakage If the remote control does not work properly or its effective range decreases change all the batteries for new ones If there is an electrolyte leakage from the batteries have the remote control serviced by an authorized technician 13
