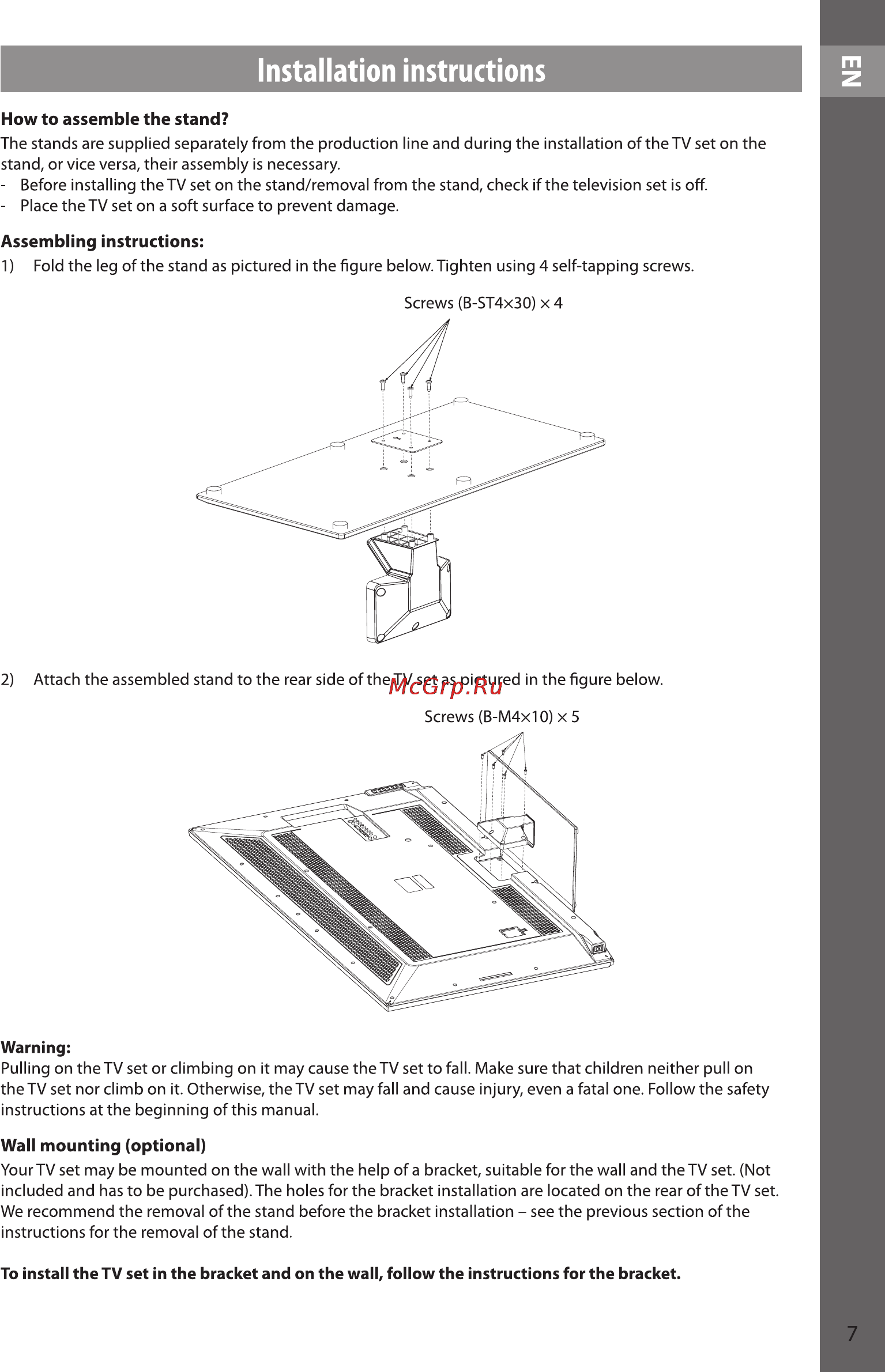

Installation instructions How to assemble the stand The stands are supplied separately from the production line and during the installation of the TV set on the stand or vice versa their assembly is necessary Before installing the TV set on the stand removal from the stand check if the television set is off Place the TV seton a soft surface to prevent damage Assembling instructions 1 Fold the leg of the stand as pictured in the figure below Tighten using 4 self tapping screws Screws B ST4X30 x4 2 Attach the assembled stand to the rear side of the TV set as pictured in the figure below Warning Pulling on the TV set or climbing on it may cause the TV set to fall Make sure that children neither pull on the TV set nor climb on it Otherwise the TV set may fall and cause injury even a fatal one Follow the safety instructions at the beginning of this manual Wall mounting optional Your TV set may be mounted on the wall with the help of a bracket suitable for the wall and the TV set Not included and has to be purchased The holes for the bracket installation are located on the rear of the TV set We recommend the removal of the stand before the bracket installation seethe previous section of the instructions for the removal of the stand To install the TV set in the bracket and on the wall follow the instructions for the bracket 7
