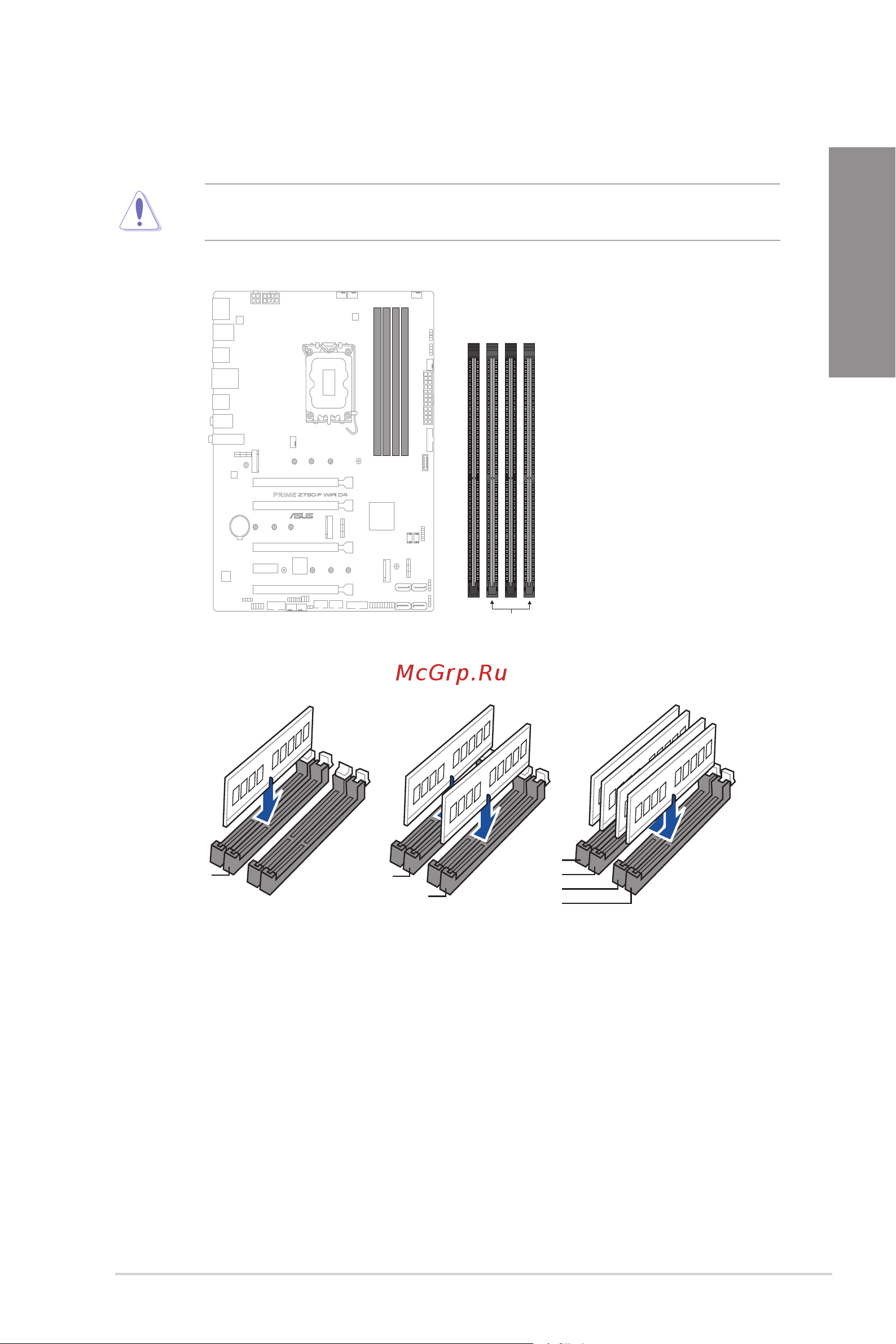

Asus PRIME Z790-P WIFI D4 [15/66] Chapter 1

PRIME Z790-P WIFI D4

1-5

Chapter 1

2. DIMM slots

The motherboard comes with Dual Inline Memory Modules (DIMM) slots designed for DDR4

(Double Data Rate 4) memory modules.

A DDR4 memory module is notched differently from a DDR, DDR2, or DDR3 module. DO

NOT install a DDR, DDR2, or DDR3 memory module to the DDR4 slot.

DIMM_B1

DIMM_B2

DIMM_A1

DIMM_A2

Recommended memory configurations

DIMM_A2

DIMM_A1

DIMM_A2

DIMM_B2

DIMM_A2

DIMM_B1

DIMM_B2
