Asus PRIME Z790-P WIFI D4 [33/66] Cooling system installation

PRIME Z790-P WIFI D4

2-3

Chapter 2

2.1.2 Cooling system installation

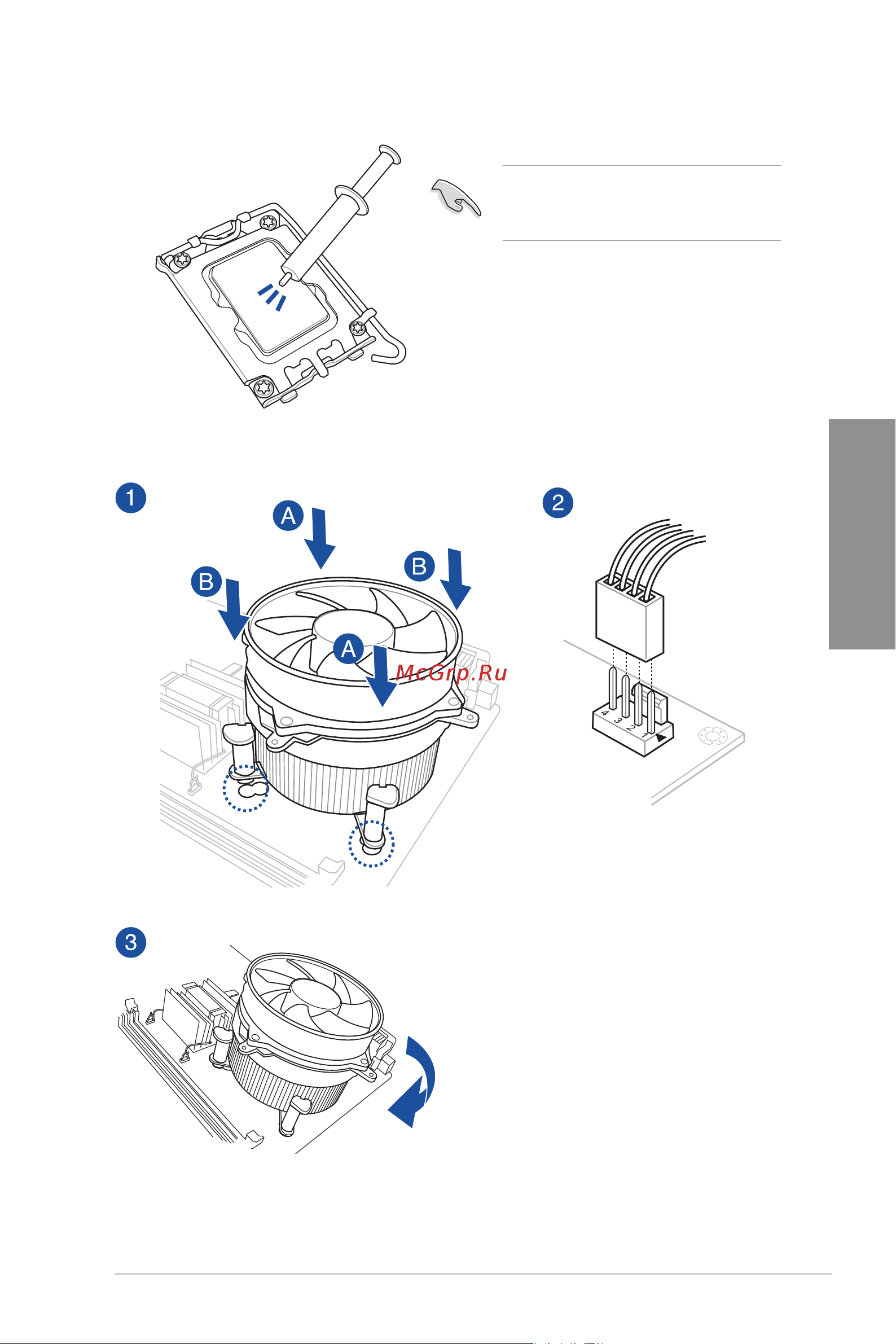

To install a CPU heatsink and fan assembly

Apply Thermal Interface Material to the

CPU cooling system and CPU before you

install the cooling system, if necessary.
