1-12
Chapter 1: Product Introduction
Chapter 1

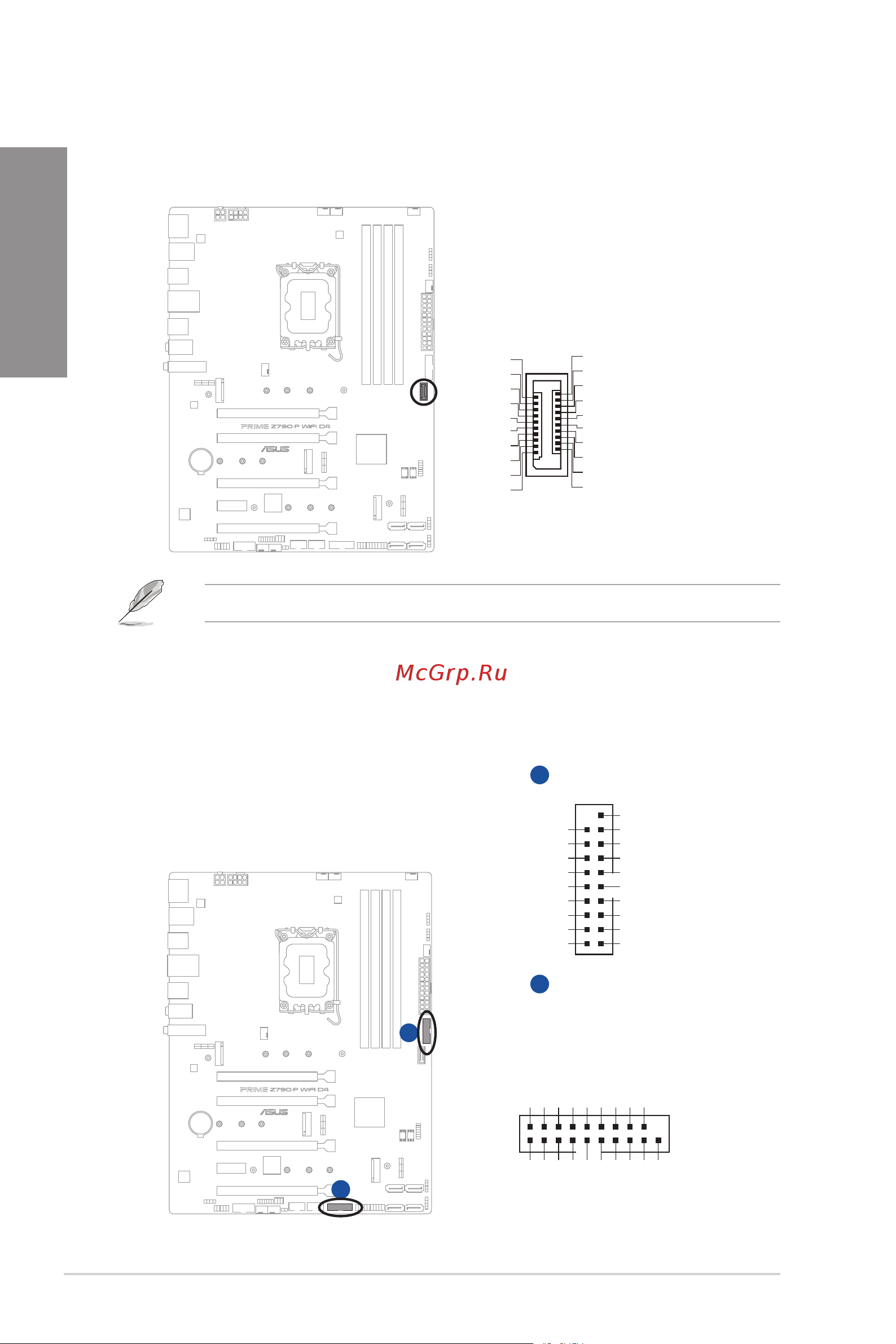

9. USB 3.2 Gen 1 headers
The USB 3.2 Gen 1 headers allow you to connect USB 3.2 Gen 1 modules for
additional USB 3.2 Gen 1 ports. The USB 3.2 Gen 1 headers provide data transfer
speeds of up to 5 Gb/s.
A
B
U32G1_78
USB3+5V
IntA_P7_SSRX-
IntA_P7_SSRX+
GND
IntA_P7_SSTX-
IntA_P7_SSTX+
GND
IntA_P7_D-
IntA_P7_D+
GND
PIN 1
USB3+5V
IntA_P8_SSRX-
IntA_P8_SSRX+
GND
IntA_P8_SSTX-
IntA_P8_SSTX+
GND
IntA_P8_D-
IntA_P8_D+
GND
IntA_P5_D+
IntA_P5_D-
GND
IntA_P5_SSTX+
IntA_P5_SSTX-
GND
IntA_P5_SSRX+
IntA_P5_SSRX-
USB3+5V
PIN 1
IntA_P6_D+
IntA_P6_D-
GND
IntA_P6_SSTX+
IntA_P6_SSTX-
GND
IntA_P6_SSRX+
IntA_P6_SSRX-
USB3+5V
A
U32G1_56
B
8. USB 3.2 Gen 2 Type-C
®
Front Panel connector
The USB 3.2 Gen 2 Type-C
®
connector allows you to connect a USB 3.2 Gen 2
Type-C
®
module for an additional USB 3.2 Gen 2 Type-C
®
port on the front panel. The
USB 3.2 Gen 2 Type-C
®
connector provides data transfer speeds of up to 10 Gb/s.
NC
NC
CC1
VBUS
RX1-
RX1+
GND
TX1-
TX1+
VBUS
VBUS
TX2+
TX2-
GND
RX2+
RX2-
GND
D-
D+
CC2
U32G2_C4
The USB 3.2 Gen 2 Type-C
®
module is purchased separately.
