Asus PRIME Z790-P WIFI D4 [40/66] Chapter 2

2-10

Chapter 2: Basic Installation

Chapter 2

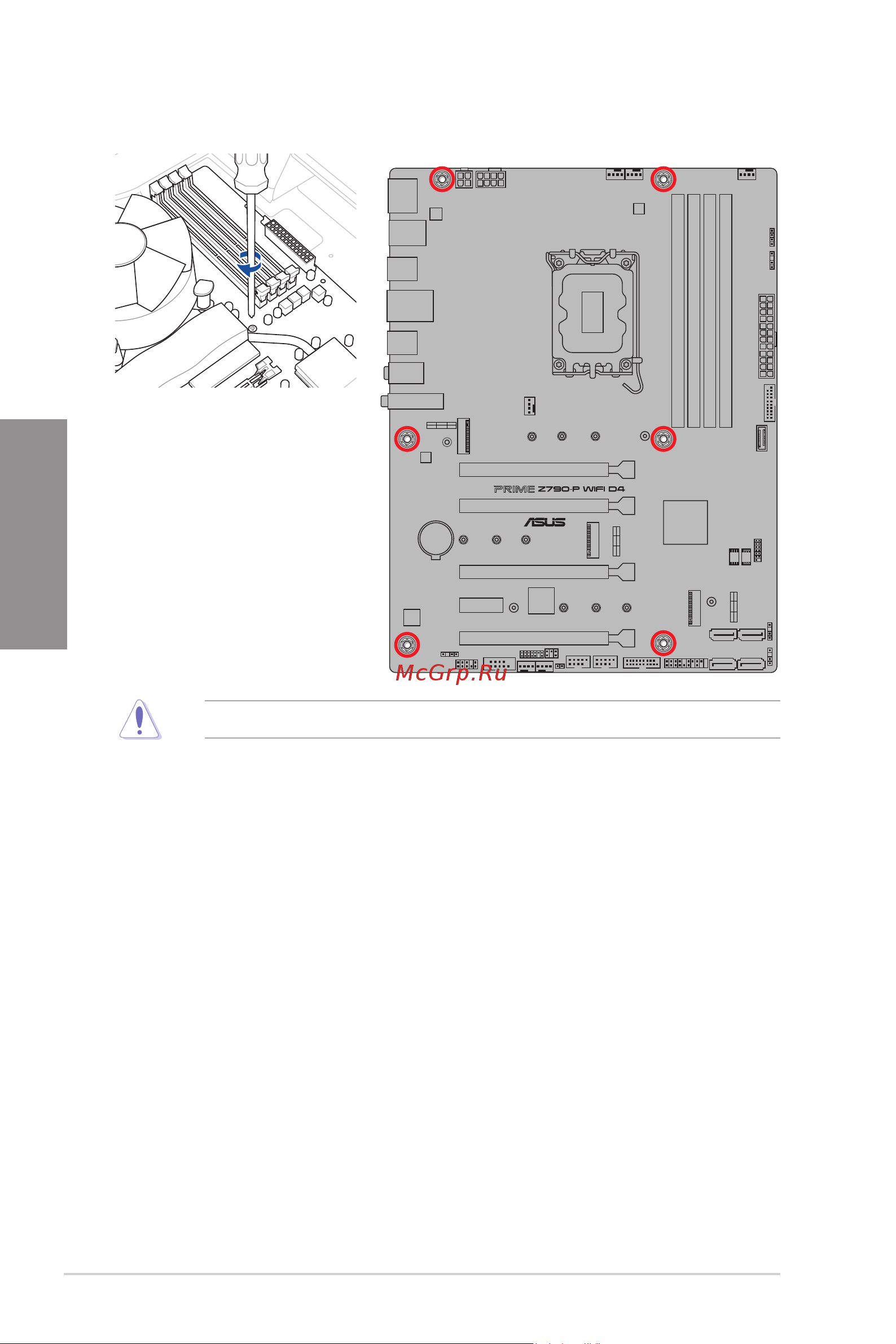

3. Place six (6) screws into the holes indicated by circles to secure the motherboard to

the chassis.

DO NOT over tighten the screws! Doing so can damage the motherboard.
