1-18

Chapter 1: Product Introduction

Chapter 1

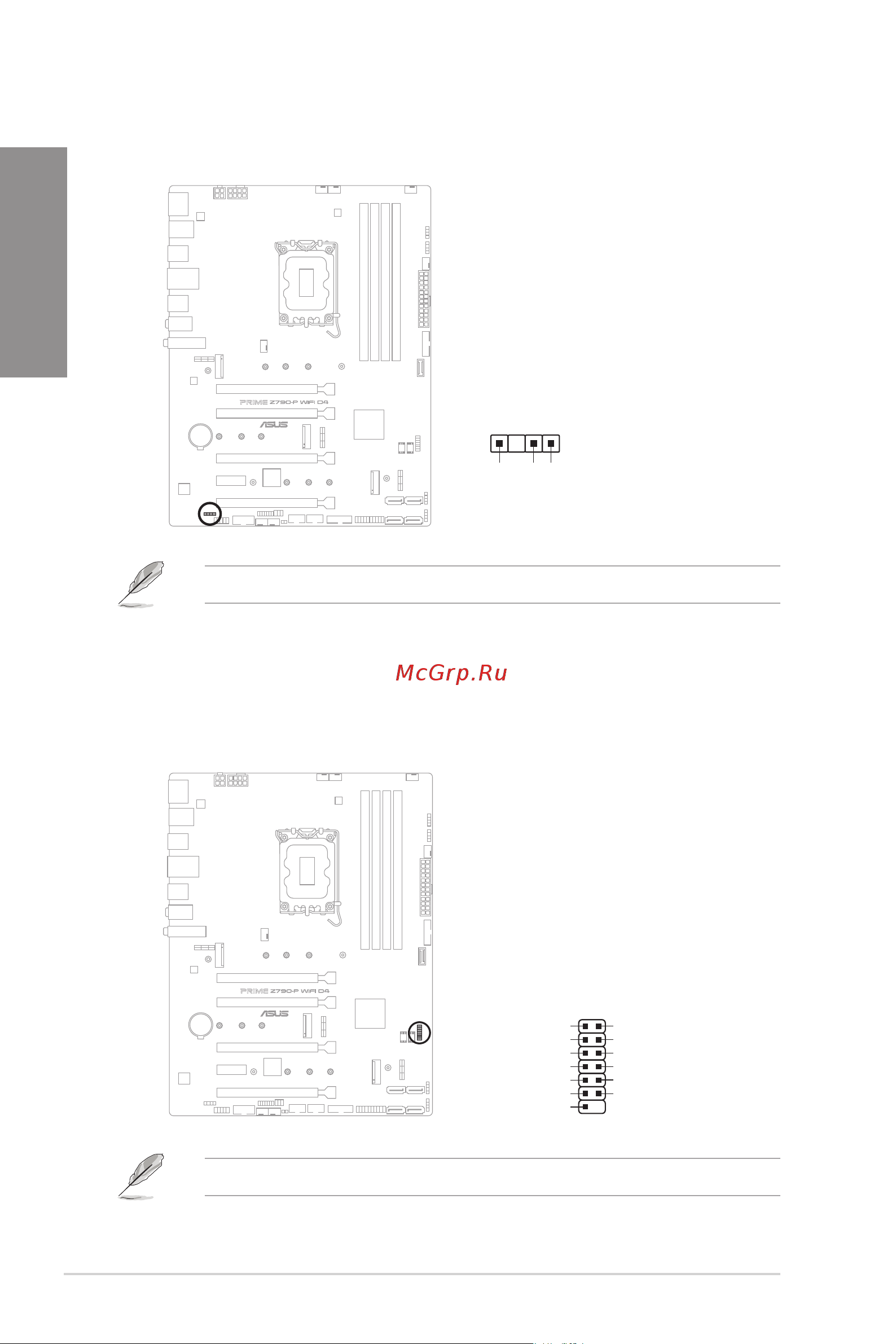

17. SPI TPM header (14-1pin)

This header supports a Trusted Platform Module (TPM) system with a Serial

Peripheral Interface (SPI), allowing you to securely store keys, digital certicates,

passwords, and data. A TPM system also helps enhance network security, protects

digital identities, and ensures platform integrity.

TPM

S_SPI_TPM_IRQ#

S_SPI_TPM_CS2#

F_BIOS_WP#_R

GND

T_SPI_CLK

T_SPI_MOSI

VCCSPI

S_PLTRST#

F2_SPI_CS1#_R

+3V_SPI

F_SPI_CS0#_R

T_SPI_MISO

F_SPI_HOLD#_R

PIN 1

The TPM module is purchased separately.

16. S/PDIF Out header

The S/PDIF Out header allows you to connect the Sony/Philips Digital Interface (S/

PDIF) Out module.

SPDIF_OUT

+5V

SPDIFOUT

GND

PIN 1

The S/PDIF module is purchased separately.
