Asus PRIME Z790-P WIFI D4 [41/66] Atx power connection

PRIME Z790-P WIFI D4

2-11

Chapter 2

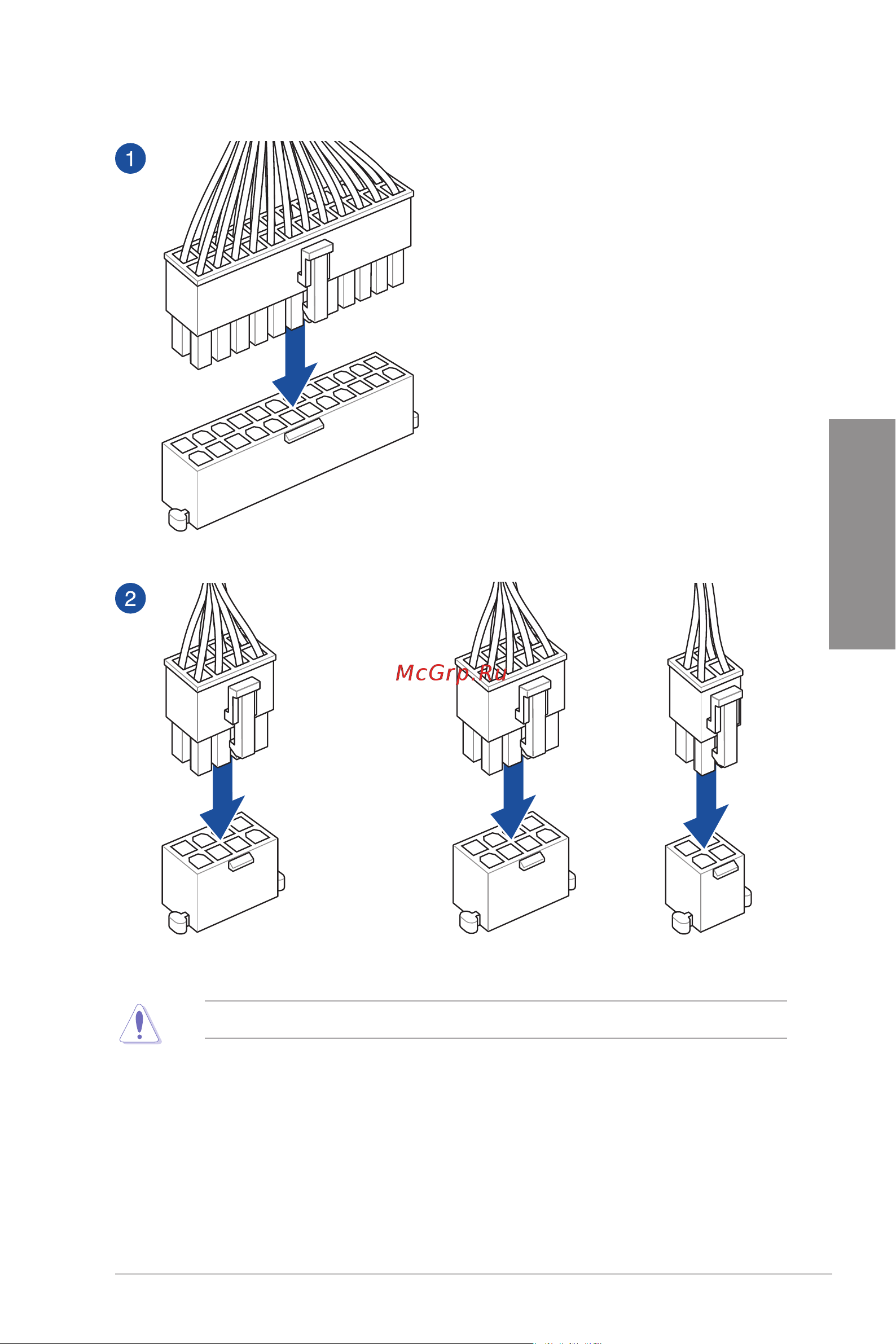

2.1.6 ATX power connection

Ensure to connect the 8-pin power plug, or connect both the 8-pin and 4-pin power plugs.

OR AND
