30

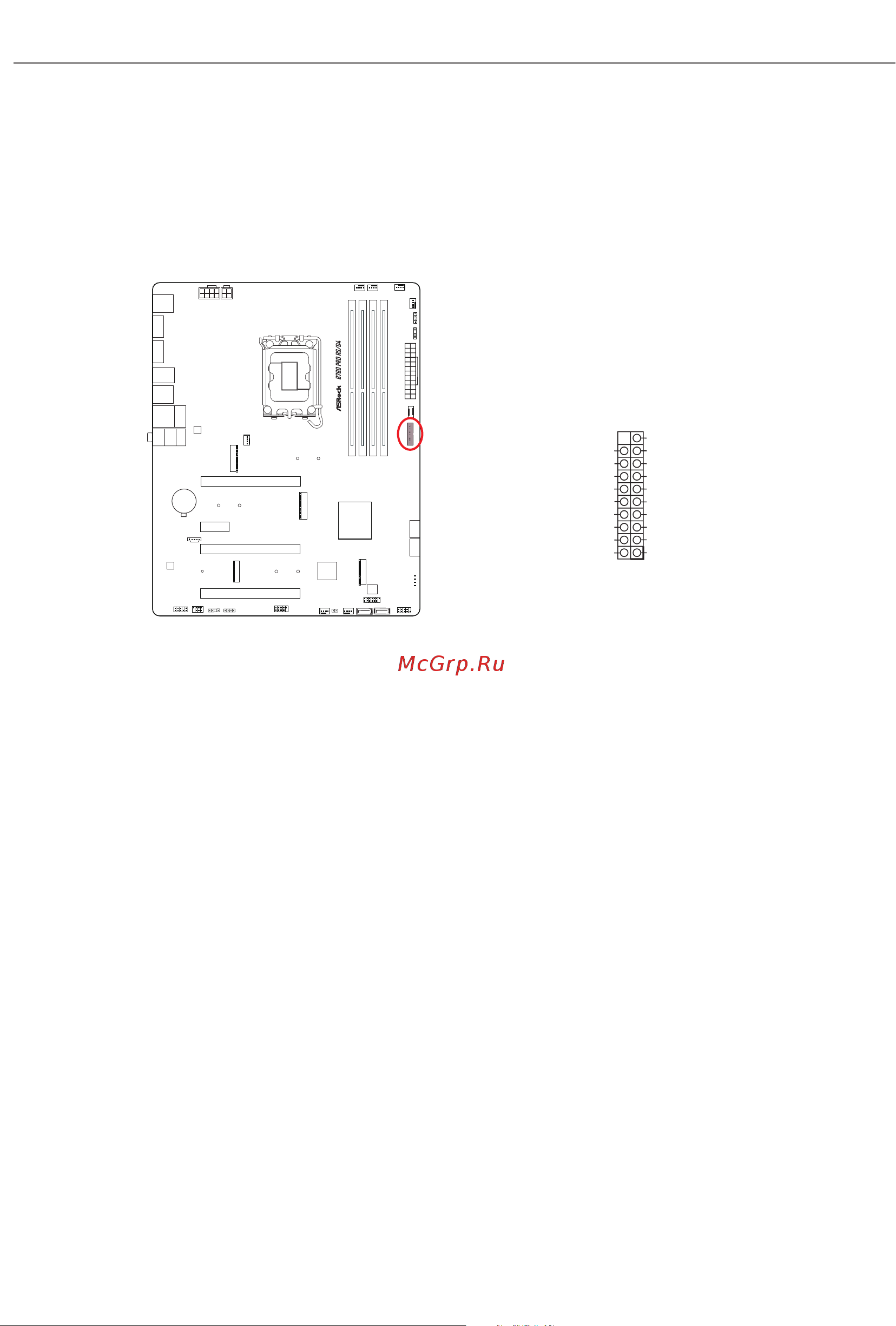

USB 3.2 Gen1 Header
(19-pin USB32_6_7) (see p.6, No. 13)
ere is one header on this motherboard. is USB 3.2 Gen1 header can support
two ports.
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusVbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
USB32_6_7
