41
B760 Pro RS/D4

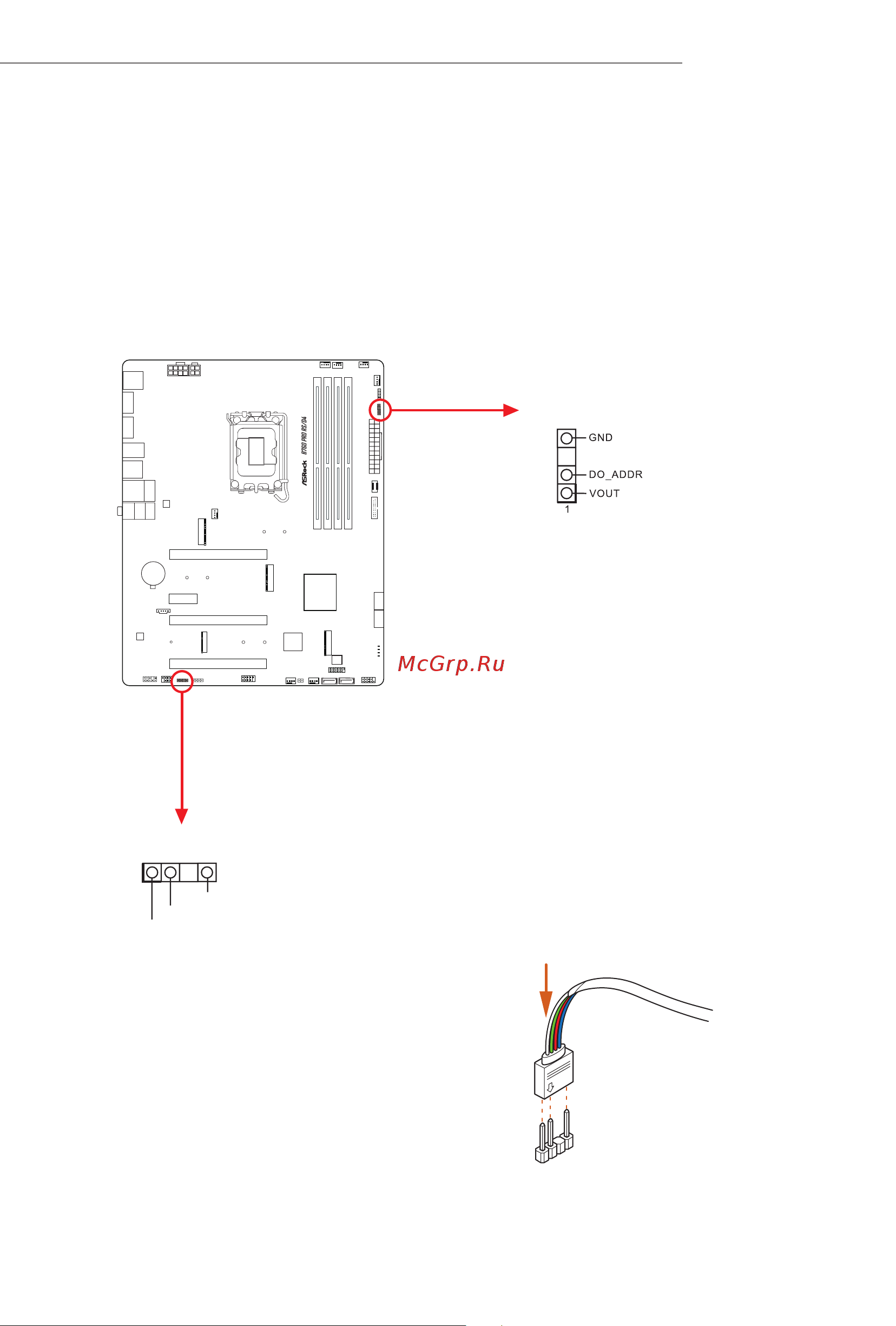

Addressable LED Headers
(3-pin ADDR_LED1) (see p.6, No. 26)
(3-pin ADDR_LED2) (see p.6, No. 10)
ese headers are used to connect
Addressable
LED extension cables which allow users to
choose from various LED lighting eects.
Caution: Never install the Addressable LED cable in the wrong orientation; otherwise,
the cable may be damaged.
VOUT
DO_ADDR
GN
D
1
ADDR_LED1
1
ADDR_LED2
Connect your
Addressable RGB LED
strips
to the
Addressable LED Headers (ADDR_
LED1 / ADDR_LED2)
on the motherboard.
