33
B760 Pro RS/D4

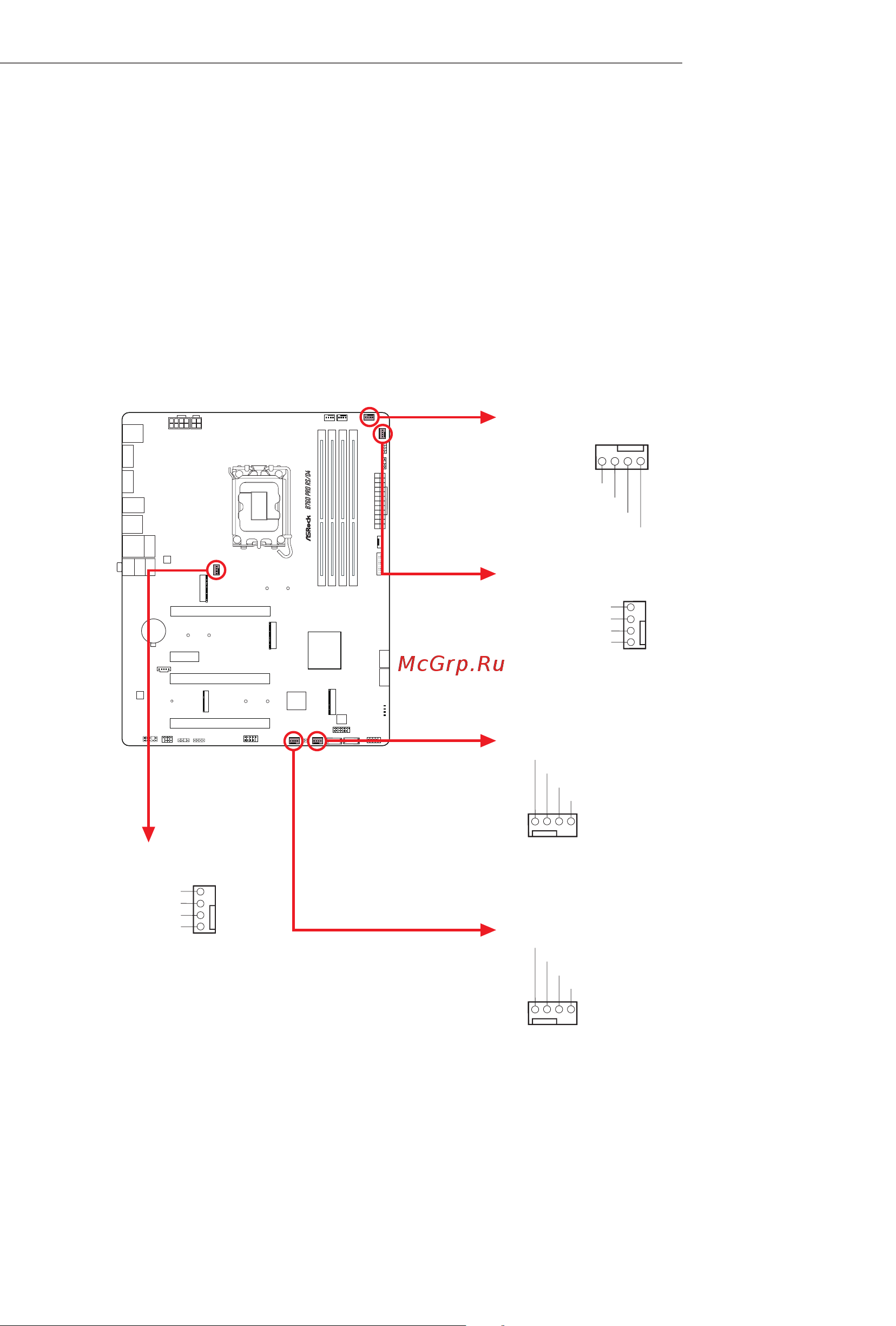

Chassis/Water Pump Fan Connectors
(4-pin CHA_FAN1/WP) (see p.6, No. 30)
(4-pin CHA_FAN2/WP) (see p.6, No. 23)
(4-pin CHA_FAN3/WP) (see p.6, No. 8)
(4-pin CHA_FAN4/WP) (see p.6, No. 21)
(4-pin CHA_FAN5/WP) (see p.6, No. 7)
is motherboard provides ve 4-Pin water cooling
chassis
fan connectors. If you
plan to connect a 3-Pin
chassis
water cooler fan, please connect it to Pin 1-3.
CHA_FAN2/WP
GND
CHA_FAN_SPEED
FAN_SPEED_CONTRO
L
FAN_VOLTAGE
1 2 3 4
CHA_FAN3/WP
CHA_FAN1/WP
CHA_FAN4/WP
GND
CHA_FAN_SPEED
FAN_SPEED_CONTRO
L
FAN_VOLTAGE
1 2 3 4
CHA_FAN5/WP
GN
D
FAN_VOLTAGE
CHA_FAN_SPEED
F
AN_SPEED_CONTROL
4 3 2 1
GND
FAN_VOLTAGE
CHA_FAN_SPEED
FAN_SPEED_CONTROL
4
3
2
1
GND
FAN_VOLTAGE
CHA_FAN_SPEED
FAN_SPEED_CONTROL
4
3
2
1
