31
B760 Pro RS/D4

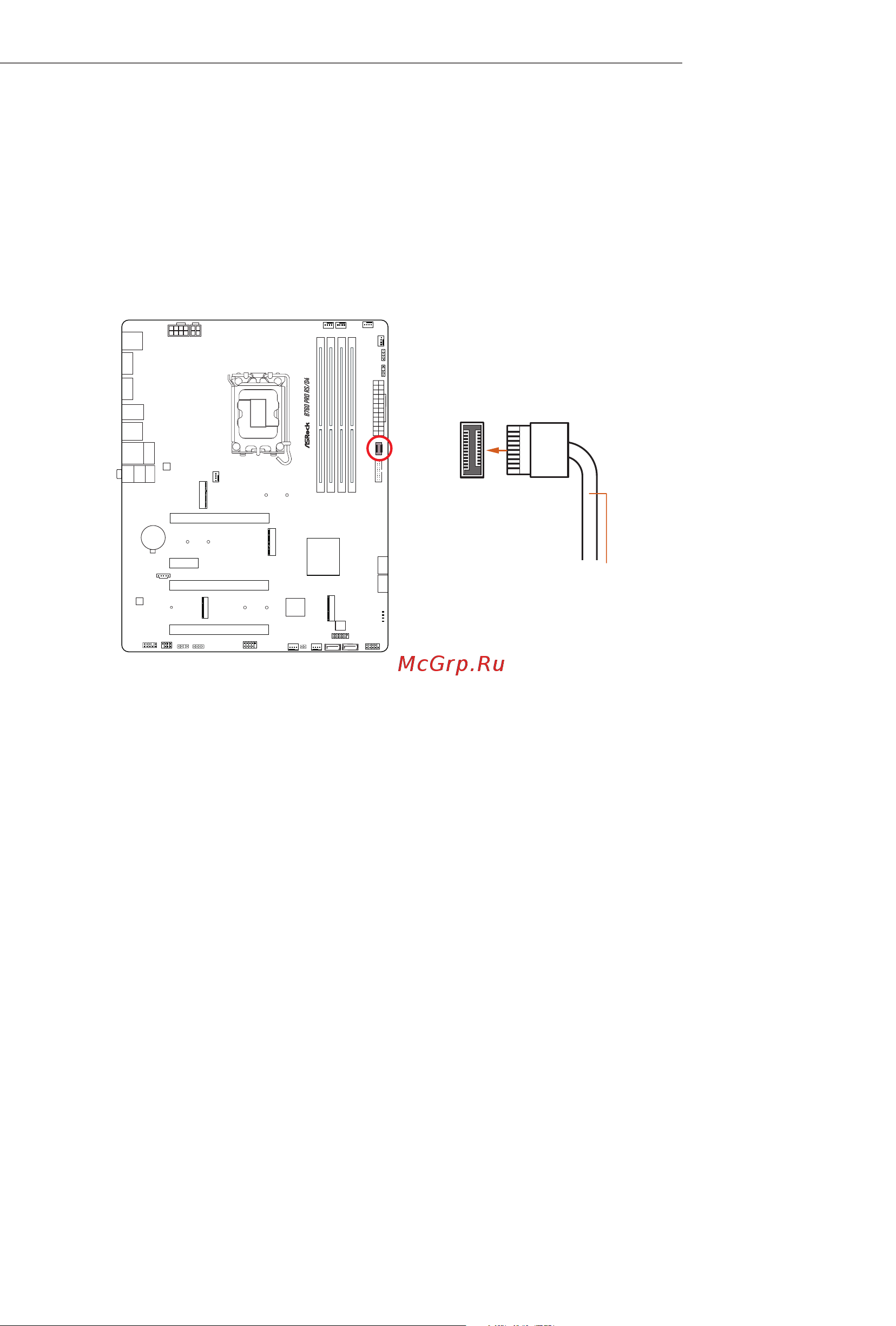

Front Panel Type C USB 3.2 Gen2 Header
(20-pin USB32_TC2) (see p.6, No. 12)
ere is one Front Panel Type C USB 3.2 Gen2 Header on this motherboard. is
header is used for connecting a USB 3.2 Gen2 module for additional USB 3.2 Gen2
ports.
USB32_TC2
USB Type-C Cable
