Focusrite RedNet PCIe R Card [28/66] Rednet 4

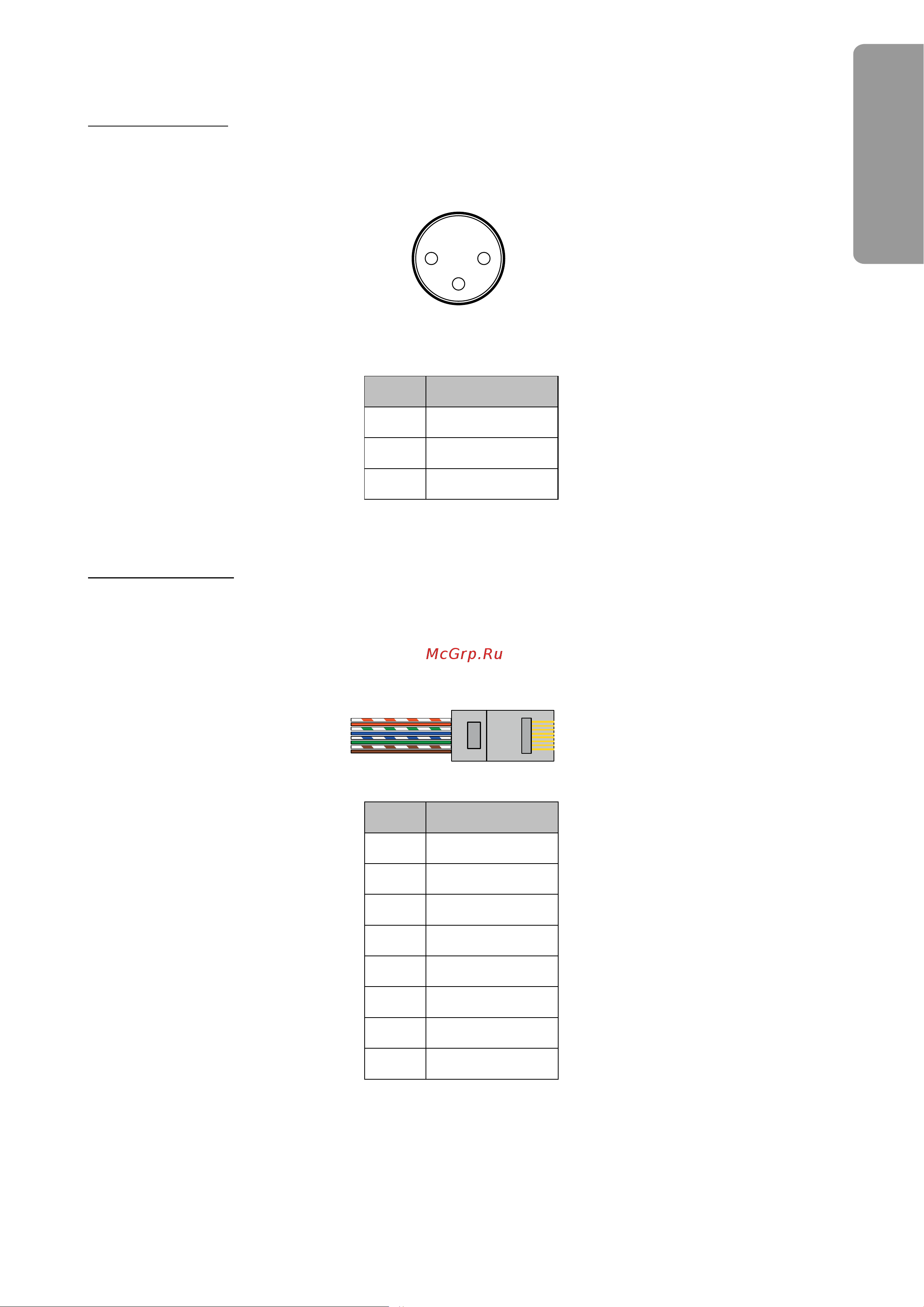

Microphone inputs

Connector type: 3-pin female XLR

Applies to: MICROPHONE INPUTS

Rear (solder side) of mating

male connector

Pin Signal

1 Screen

2 Signal ‘hot’ (+)

3 Signal ‘cold’ (-)

Ethernet connector

Connector type: RJ-45 receptacle

Applies to: ETHERNET

Cable type: CAT 5e or CAT 6

Pin Cat 6 Core

1 White + Orange

2 Orange

3 White + Green

4 Blue

5 White + Blue

6 Green

7 White + Brown

8 Brown

REDNET 4
