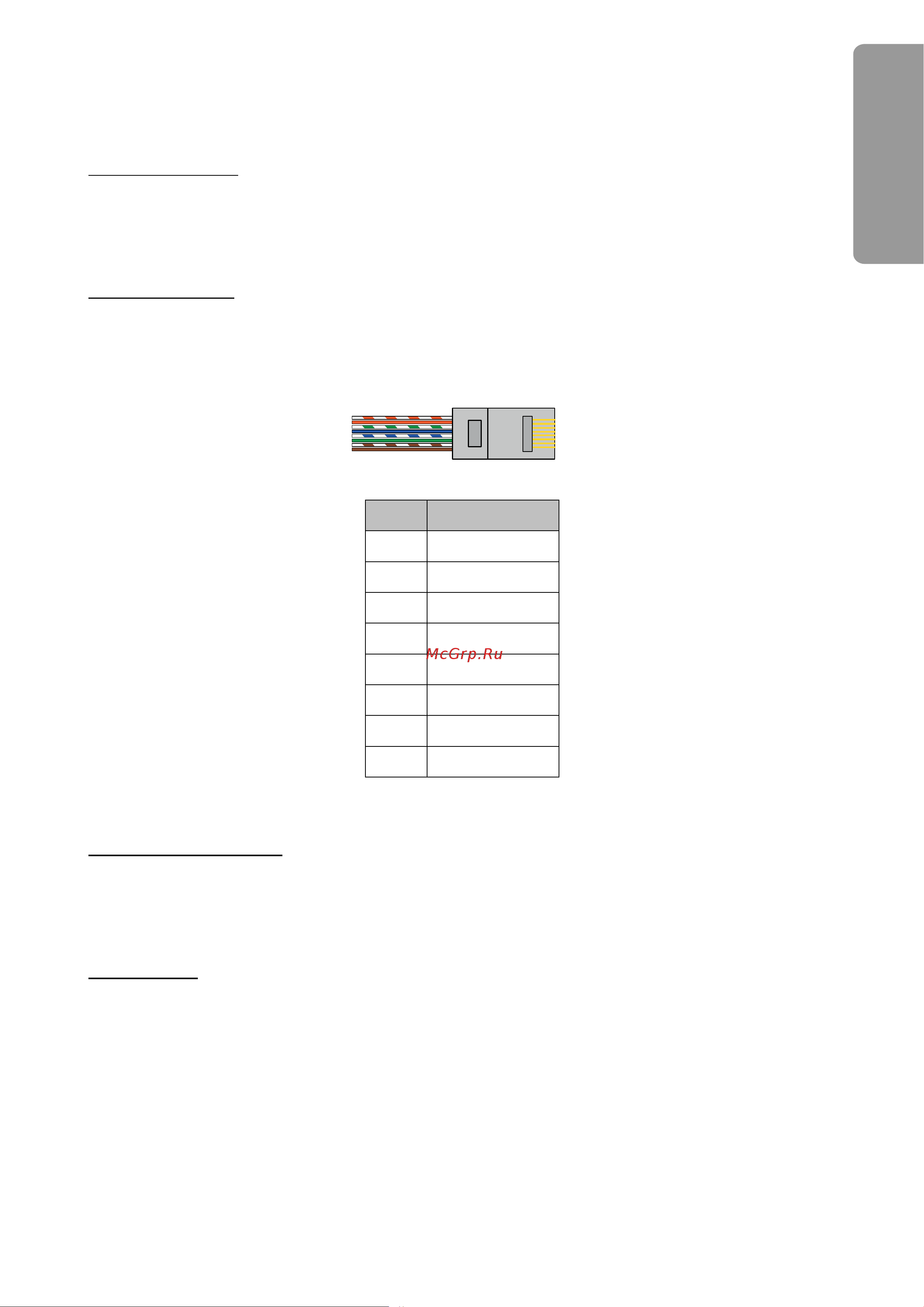

40
CONNECTORS
Pro Tools interfaces
Connector type: 2 x DigiLink female
Applies to: PRIMARY, EXPANSION
Ethernet connector
Connector type: RJ-45 receptacle
Applies to: ETHERNET
Cable type: CAT 5e or CAT 6
11
8
1
8
Pin Cat 6 Core
1 White + Orange
2 Orange
3 White + Green
4 Blue
5 White + Blue
6 Green
7 White + Brown
8 Brown
Word Clock I/O (Ext sync)
Connector type: 2 x 75 ohm BNC sockets
Applies to: WORD CLOCK IN and OUT
Loop Sync I/O
Connector type: 2 x 75 ohm BNC sockets
Applies to: LOOP SYNC IN and OUT
REDNET 5
