PHYSICAL CHARACTERISTICS

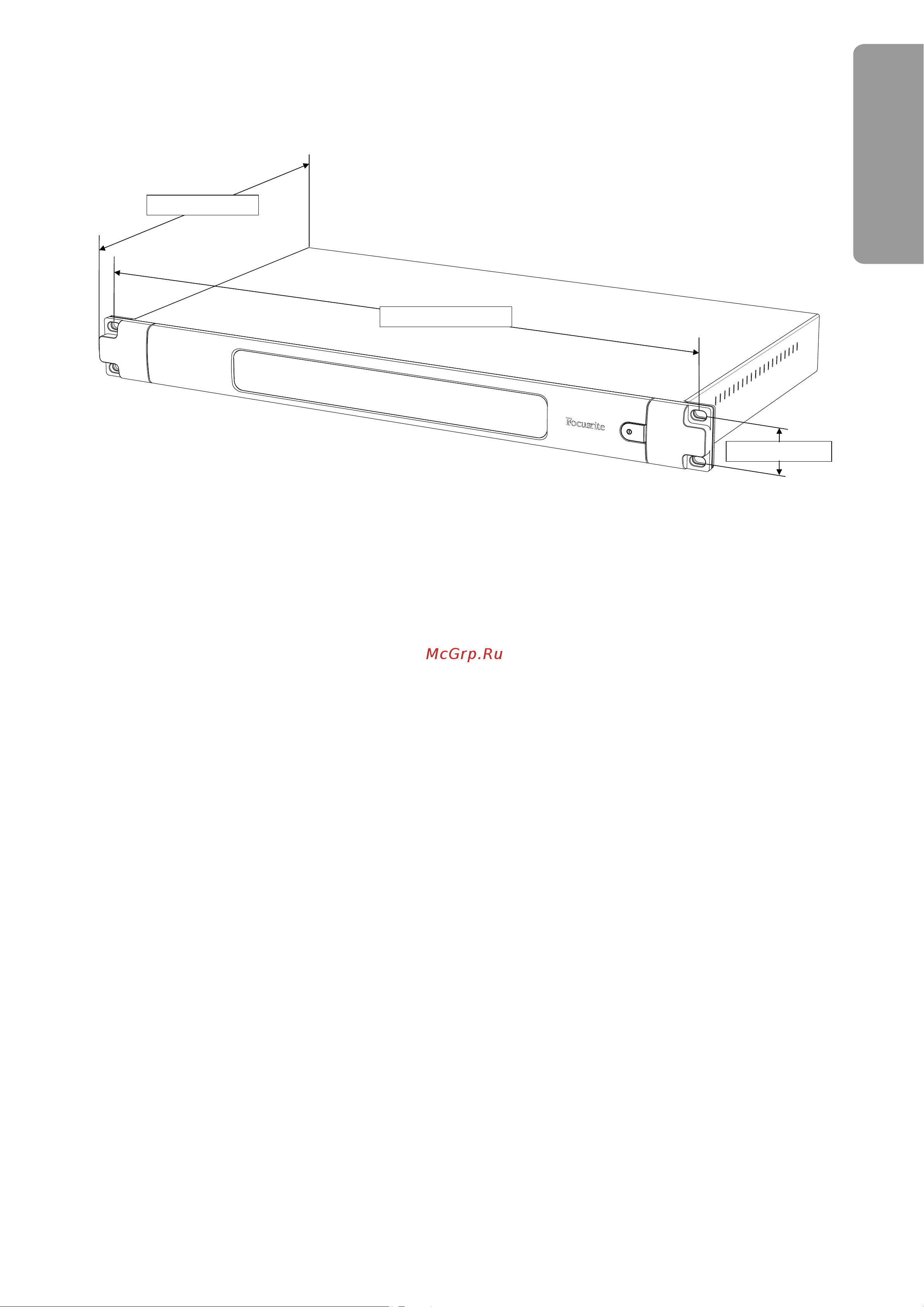

RedNet D16 dimensions are illustrated in the diagram above.
RedNet D16 requires 1U of vertical rack space and at least 350 mm of rack depth, to allow for cables.
RedNet D16 weighs 3.74 kg and for installations in a fixed environment (eg., a studio), the front-panel
mounting screws will provide adequate support. If the units are to be used in a mobile situation
(eg., flight-cased for touring, etc.), consideration should be given to using side support rails within
the rack.
RedNet D16 generates little significant heat and is cooled by natural convection.
Ventilation is via slots in the enclosure at both sides. Do not mount RedNet D16 immediately above
any other equipment which generates significant heat, for example, a power amplifier. Also, ensure
that when mounted in a rack, the side vents are not obstructed.
POWER REQUIREMENTS
RedNet D16 is mains-powered. It incorporates a ‘Universal’ power supply, which can operate on any
AC mains voltage from 100 V to 240 V. The AC connection is made via a standard 3-pin IEC connector
on the rear panel.
A mating IEC cable is supplied with the unit, which should be terminated with a mains plug of the
correct type for your country.
The AC power consumption of the RedNet D16 is 30VA.
Please note that there are no fuses in RedNet D16, or other user-replaceable components of any
type. Please refer all servicing issues to the Customer Support Team.
31.8mm / 1.25"
465.0mm / 18.30"
247.0mm / 9.76"
REDNET D16
