54

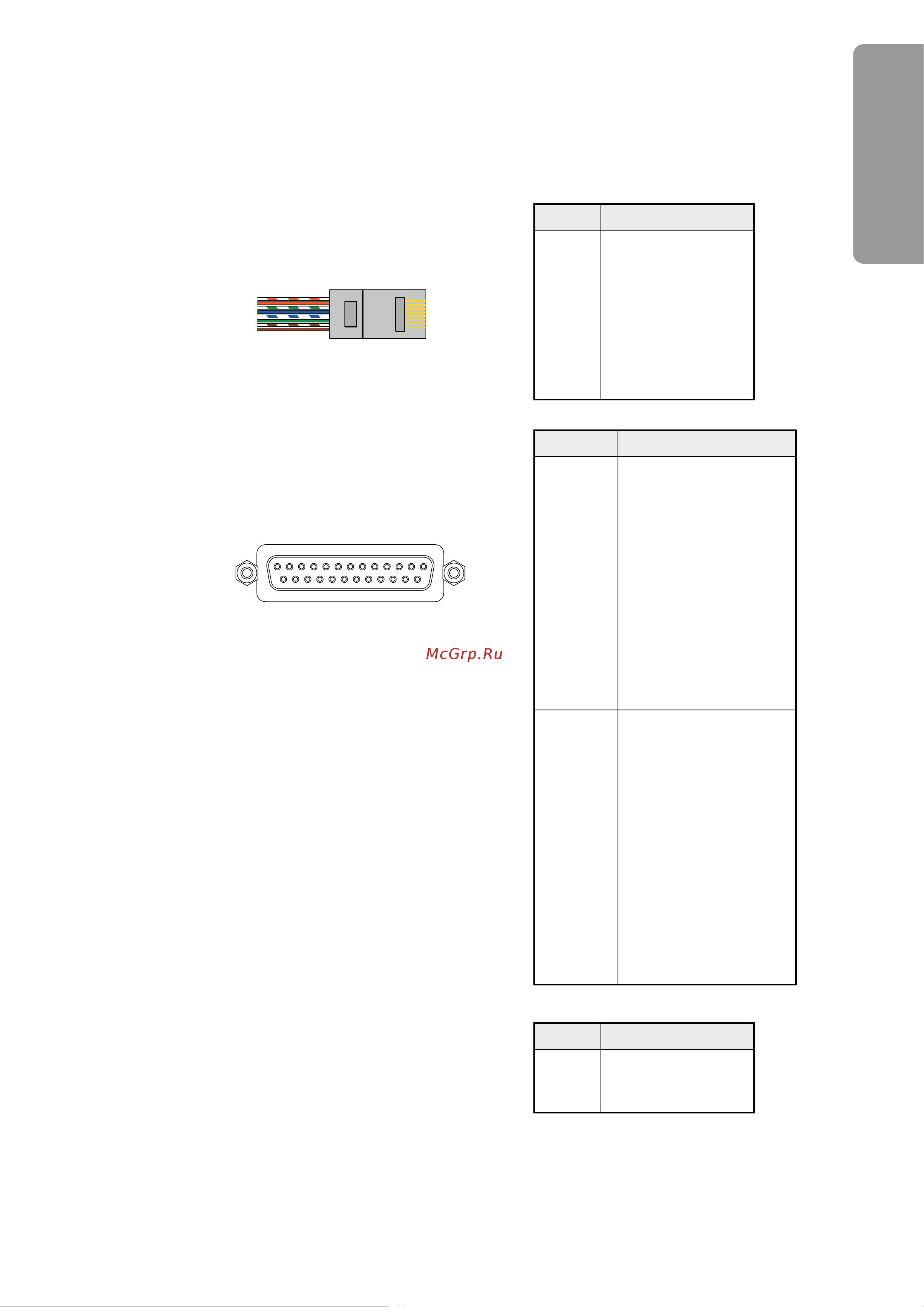

CONNECTORS
Ethernet Connector
Connector type: RJ-45 receptacle
Applies to: Ethernet (Dante)
DB-25 (AES59) Connector
Connector type: DB-25 receptacle
Applies to: AES3 I/O
XLR Connectors
Connector type: XLR-3 receptacle
Applies to: AES3/DARS Input
Connector type: XLR-3 plug
Applies to: AES3 Output
Pin Cat 6 Core
1 White + Orange
2 Orange
3 White + Green
4 Blue
5 White + Blue
6 Green
7 White + Brown
8 Brown
Pin Signal
1 Screen
2 Hot (+ve)
3 Cold (–ve)
Pin Signal
1 Out channels 7/8 +
14 Out channels 7/8 –
2 Ground
15 Out channels 5/6 +
3 Out channels 5/6 –
16 Ground
4 Out channels 3/4 +
17 Out channels 3/4 –
5 Ground
18 Out channels 1/2 +
6 Out channels 1/2
19 Ground
7 In channels 7/8 +
20 In channels 7/8 –
8 Ground
21 In channels 5/6 +
9 In channels 5/6 –
22 Ground
10 In channels 3/4 +
23 In channels 3/4 –
11 Ground
24 In channels 1/2 +
12 In channels 1/2 –
25 Ground
13 n/c
11
8
1
8
113
25 14
REDNET D16
