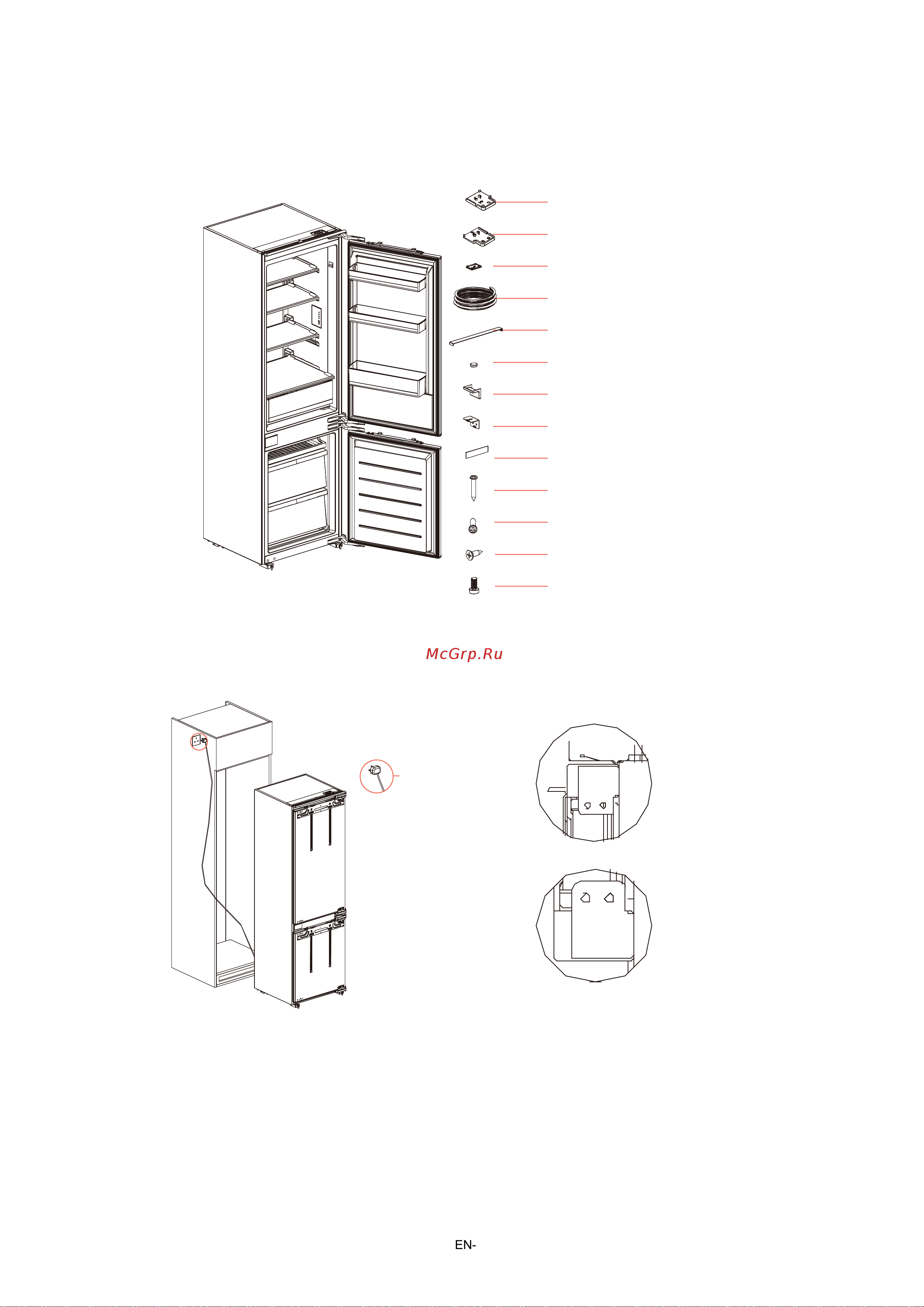

4). Putting the refrigerator into the cabinet
a. Unpack the refrigerator and take out the installation accessories in the refrigerator door;
b. Close the refrigerator door, take out the power cable and plug it in the socket or through the cable
hole in the cabinet. Then install the upper and lower hinge decorative covers on the sides of the hinge,
as shown in the figure.
c. After moving the refrigerator into the cabinet for a certain distance, open
the limit hook at the lower
part of the refrigerator, adjust the position of the refrigerator so that it is close to the cabinet on the
side of the refrigerator hinge and the top baffle flanging contacts the cabinet edge, and the support
limit hooks on the bottom edge of the cabinet. Pay attention to avoid squeezing the power cable
during operation;
11
Lower hinge decorative cover*2
Upper hinge decorative cover*2
Top baffle cover*2
Sealing strip*1
Decorative cover on top of the door*2
Bottom support cover*4
Decorative cover at bottom of the door*4
Door bottom support*4
Hinge decorative cover*4
Cross recessed countersunk head
self-tapping screw*4
Cross recessed oval head self-tapping screw*4
Cross recessed pan head self-tapping screw*24
Cross recessed countersunk head thread
forming screw*4
Power plug
Upper hinge
Lower hinge
